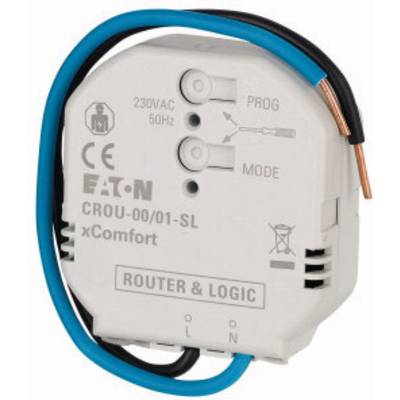

CROU-00/01-SL Eaton xComfort Logical router
EAN:
Part number:
Item no:
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Number
Total (€ 80.66 / piece)
€
Only 2 Piece(s) available
Highlights & Details
Router + Logic
- Forwarding radio commands
- 868 MHz
- With logic functions
Technical specifications
- Power supply: 230 VAC, 50 Hz
- Connections: Connection wires single-wire 1.5 mm²
- Transmission type: Bidirectional, via coded telegrams
- Range in the building: Typical 30 - 50 m, 2 walls + 1 ceiling (depending on wall thickness and material!!)
- Operating temperature: -5 to +45 °C
- Housing color: Gray, RAL7035
- Length connecting wires: 150 mm
- Series
Eaton xComfort
IP20
- Power supply (LOV)
mains-powered
- Data transfer (Smart Home)
Wireless
- Frequency
868.3 MHz
- Mounting type
Flush mount
- Width
45.3 mm
- Height
48.6 mm
- Depth
26.2 mm
- Dim
(W x H x D) 45.3 x 48.6 x 26.2 mm
n.rel.
- Data exchange
Bidirectional (bi)
- Hub
Not required, optional for remote access
230 V
Flush mounted (plaster)
1
FALSE
TRUE
FALSE
3
xComfort
FALSE
IP20
FALSE
18 mm
- Product type
Logical router
Documents & Downloads
Datasheet
Datasheet 2142514 CROU-00/01-SL Eaton xComfort Logical router
User & Safety Instructions
User & Safety Instructions 2142514 CROU-00/01-SL Eaton xComfort Logical router
Information
Information 2142514 CROU-00/01-SL Eaton xComfort Logical router
Description
This router with integrated logic functions can be used for small solutions. Via MRF up to 5 logic functions can be programd. Each logic function can combine conditions and analog values to an actuator to switch if the result of the logic operation is true.
Caution: Only for comfort mode!
This text is machine translated.
Caution: Only for comfort mode!
This text is machine translated.
Scope of delivery
- Routers
- Assembly instructions..
