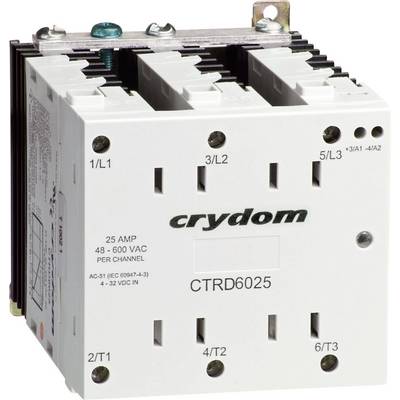

Crydom 3-Phase Solid State Relay
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 281.51 / piece)
€
Technical specifications
- Type
CTRD6025
- Switching type
Zero crossing
- Control voltage (min.)
4 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
4 - 32 V DC
- Surge current (max.)
28 A
- Switching voltage (min.)
48 V AC
- Switching voltage (max.)
600 V AC
- Current load (max.)
25 A
- Min. temperature
-20 °C
- Max. temperature
+80 °C
- Width
91.2 mm
- Height
123.4 mm
- Length
90 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
Zero voltage switch type
- Switching voltage
48 - 600 V AC
- Type
CTRD6025
- Ambient temperature
-20 - +80 °C
- Current load
3 X 25 A
- Product type
SSR
Documents & Downloads
Datasheet
Datasheet 505545 Crydom 3-Phase Solid State Relay
User & Safety Instructions
User & Safety Instructions 505545 Crydom 3-Phase Solid State Relay
Description
Switches with up to 25 A per phase at 600 V/AC. SCR output for high switching loads in industrial applications. For DIN rail or chassis mounting.
Scope of delivery
- Integrated heat sink
- DIN rail mounting clip.
Hints
UL approval.
