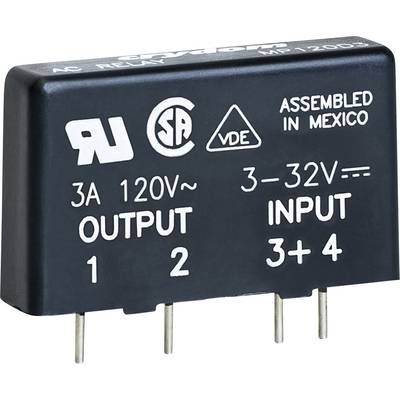

Crydom Solid State SIP PCB Load Relay
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type
MP240D4
- Switching type
Zero crossing
- Control voltage (min.)
3 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
3 - 32 V DC
- Surge current (max.)
5 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
280 V AC
- Current load (max.)
4 A
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Width
25.4 mm
- Height
10.2 mm
- Length
43.1 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
Switches at voltage zero.
- Type
MP240D4
- Ambient temperature
-40 - +80 °C
- Current load
4 A
- Product type
SSR
Documents & Downloads
Datasheet
Datasheet 186457 Crydom Solid State SIP PCB Load Relay
Description
The housing provides a high packing density and is pin-compatible with series 6 and OAC I / O modules.
Hints
Approvals UL, CSA, VDE
