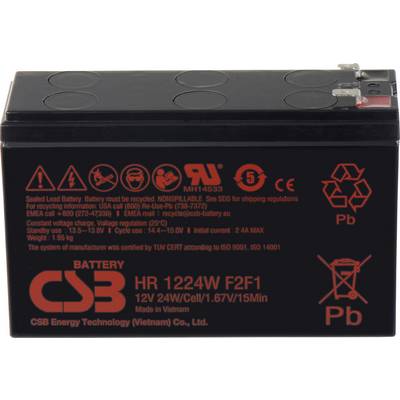

CSB Battery HR 1224W high-rate HR1224WF2F1 VRLA 12 V 5.8 Ah AGM (W x H x D) 151 x 98 x 51 mm 6.35 mm blade terminal Main
EAN:
Part number:
Item no:
Datasheet (PDF)
370 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€
Highlights & Details
Lead-acid battery
- High performance with low weight
- Maintenance-free and resistant to high current
- low flammability
Technical specifications
- Temperature range -15 to +50 °C
- Internal resistance 20.6 mΩ
- Max. Discharge current 130 A
- Max charging current 2.4 A
- Dim
(W x H x D) 151 x 98 x 51 mm
- Product type
VRLA
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
5.8 Ah
- Height
98 mm
- Weight
1.95 kg
- Content
1 pc(s)
- Type
HR 1224W high-rate
- Rechargeable
Yes
- Connector
6.35 mm blade terminal
- Depth
51 mm
- Width
151 mm
- Features
Maintenance-free
Low self-discharge levels
- Pin type
F2
Documents & Downloads
Datasheet
Datasheet 1667538 CSB Battery HR 1224W high-rate HR1224WF2F1 VRLA 12 V 5.8 Ah AGM (W x H x D) 151 x 98 x 51 mm 6.35 mm blade terminal Main
Datasheet 1667538 CSB Battery HR 1224W high-rate HR1224WF2F1 VRLA 12 V 5.8 Ah AGM (W x H x D) 151 x 98 x 51 mm 6.35 mm blade terminal Main
Security datasheet
Security datasheet 1667538 CSB Battery HR 1224W high-rate HR1224WF2F1 VRLA 12 V 5.8 Ah AGM (W x H x D) 151 x 98 x 51 mm 6.35 mm blade terminal Main
Description
The HR lead-acid battery is characterised by low volume, low weight and high performance with a life span of 5 years in stand-by mode. Ideal for UPS systems, emergency lighting, fire alarm and security systems.
This text is machine translated.
This text is machine translated.
Features
- Maintenance free
- Leak-proof
- Insulated seal
- You can use it in any position
- Service life up to 5 Years
- High reliability
- Low self discharge
- Flame resistant according to UL 94 V-0
- Low internal resistance
- UL 1989-tested
- High quality materials
- Corresponds to the IATA/ICAO special provision A67
- Classified by MG Amendment 27
