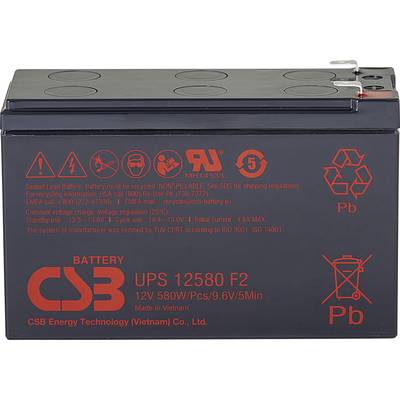

CSB Battery UPS 12580 high-rate UPS12580F2 VRLA 12 V 9.4 Ah AGM (W x H x D) 151 x 99 x 65 mm 6.35 mm blade terminal Main
EAN:
Part number:
Item no:
Datasheet (PDF)
208 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.92
3
4% = € 1.25
€ 30.67
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.92 / piece)
€
Highlights & Details
Lead-acid battery
- Innovative thin plate technology
- Maintenance-free and resistant to high current
- low flammability
Technical specifications
- Temperature range -15 to +50 °C.
- Internal resistance 11.8 mΩ
- Max. Discharge current 130 A.
- Charging current 4.8 A max.
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
9.4 Ah
- Height
99 mm
- Weight
2.83 kg
- Content
1 pc(s)
- Type
UPS 12580 high-rate
- Rechargeable
Yes
- Dim
(W x H x D) 151 x 99 x 65 mm
- Depth
65 mm
- Width
151 mm
- Features
Maintenance-free
Low self-discharge levels
- Connector
6.35 mm blade terminal
- Pin type
F2
- Product type
VRLA
Documents & Downloads
Datasheet
Datasheet 2289420 CSB Battery UPS 12580 high-rate UPS12580F2 VRLA 12 V 9.4 Ah AGM (W x H x D) 151 x 99 x 65 mm 6.35 mm blade terminal Main
Datasheet 2289420 CSB Battery UPS 12580 high-rate UPS12580F2 VRLA 12 V 9.4 Ah AGM (W x H x D) 151 x 99 x 65 mm 6.35 mm blade terminal Main
Security datasheet
Security datasheet 2289420 CSB Battery UPS 12580 high-rate UPS12580F2 VRLA 12 V 9.4 Ah AGM (W x H x D) 151 x 99 x 65 mm 6.35 mm blade terminal Main
Description
The lead-acid battery UPS was special for applications with a high degree of efficiency. Innovative thin plate technology for optimized performance and high Effizients. Ideal for UPS systems, emergency lighting, fire alarm and security systems.
This text is machine translated.
This text is machine translated.
Features
- Maintenance free
- Innovative thin plate technology
- Leak-proof
- Insulated seal
- You can use it in any position
- Service life up to 5 Years
- High reliability
- Low self discharge
- Flame resistant according to UL 94 V-0
- Low internal resistance
- UL 1989-tested
- High quality materials
- Corresponds to the IATA/ICAO special provision A67
- Classified by MG Amendment 27
