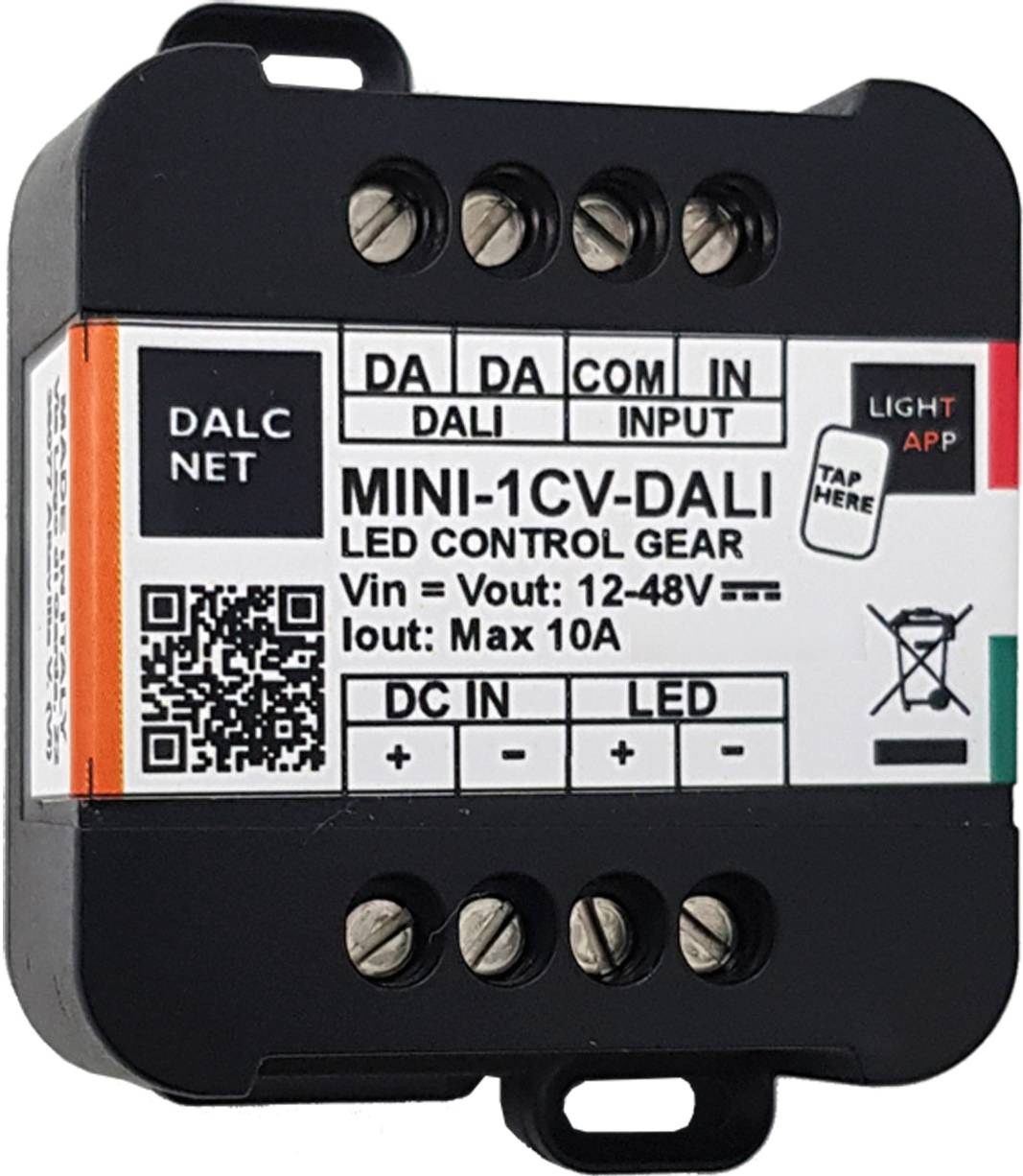

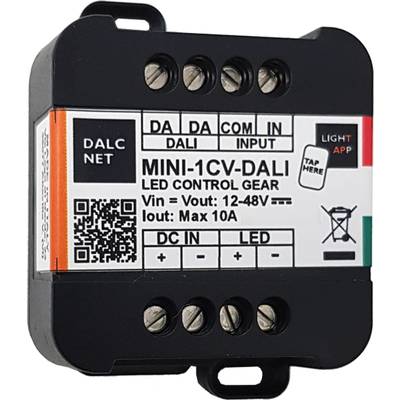

Dalcnet MINI-1CV-DALI Dimmer 1-channel Synergy 21 LED Controller MINI-1CV-DALI*
EAN:
Part number:
Item no:
Datasheet (PDF)
16 Piece(s)
Sales and shipping:
Number
Total (€ 35.29 / piece)
€
Technical specifications
- Series:MINI
- Operating mode CV
- Housing: Enclosed plastic
- Interfaces: 0 - 10 volt, 1 - 10 volt, Dali, resistive, push-DIMM
- Operating temperature: -10 °C to 40 °C
- Nominal input voltage 24 V
- Min. Input voltage DC 12 V.
- Max. Input voltage DC 48 V.
- Connector type, input: Screw terminal
- Number of outputs 1
- Power output: 480 W
- Output voltage min.: 12 V
- Output voltage max. 48 V
- Output current: 120 A
- DIMM design PWM
- Dimmrange, min.: 0.1 %
- Dim range, max. 100 %
- Connector type, output: Screw terminal
- Output frequency (Hz): 4000
- Protection class III
- Standards (EMC) EN 55015
- Standards (security) EN 61347-1, EN 61347-2-13
- Product type
Dimmer
- Used at
Indoors
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
12 V
24 V
48 V
- Data transfer (Smart Home)
Wired
- Channels
1
- Width
44 mm
- Height
57 mm
- Depth
25 mm
- Dim
(W x H x D) 44 x 57 x 25 mm
n.rel.
- Features
Dimmer function
Documents & Downloads
Datasheet
Datasheet 3192147 Dalcnet MINI-1CV-DALI Dimmer 1-channel Synergy 21 LED Controller MINI-1CV-DALI*
Description
Dalcnet dimmer 12 V - 48 V, 10 A CV DALI-2/push.
This text is machine translated.
This text is machine translated.
Features
- Flicker-free
- Can be configured via Dalcnet LightApp
- Overvoltage protection.
