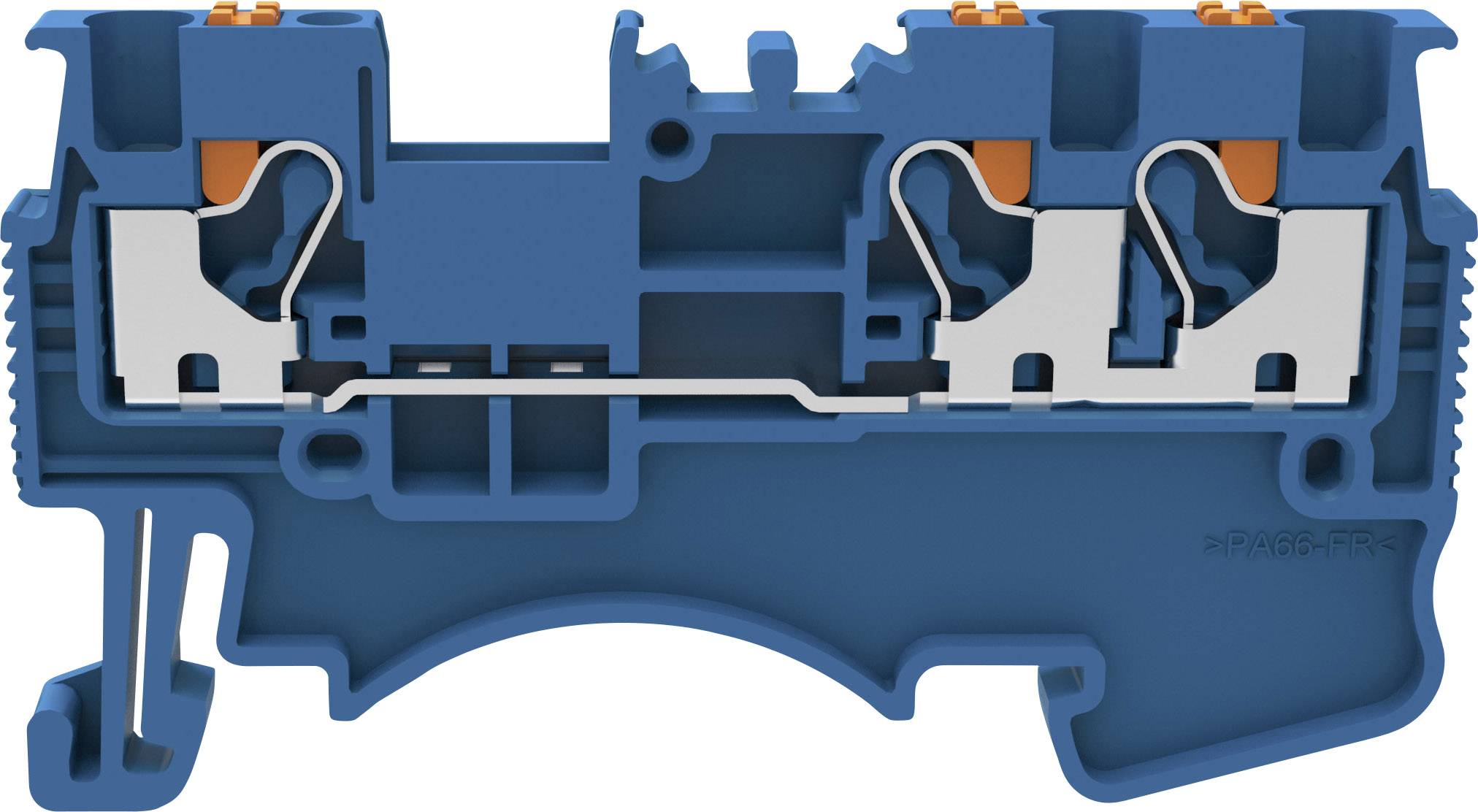

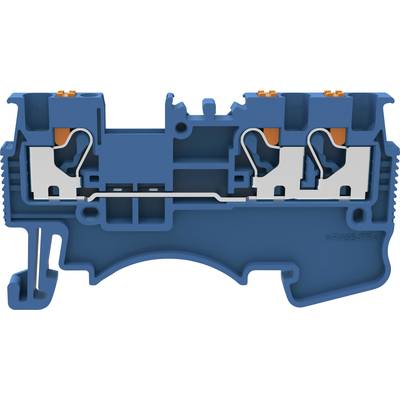

Degson DS1.5-TW-01P-12-00A(H) Continuity Push-in connector Blue 1 pc(s)
EAN:
Part number:
Item no:
Connection
Push-in connector
Cross section (flexible) (min.)
0.2 mm²
Cross section (flexible) (max.)
1 mm²
Cross section (inflexible) (min.)
0.2 mm²
Cross section (inflexible) (max.)
1.5 mm²
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
10
7% = € 0.08
€ 1.00
25
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€
Technical specifications
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
14
- Number of pins
1
- Factory colour
Blue
- Nominal current
17.5 A
15 A
- Nominal current - rounded value
NaN A
- Nominal voltage
500 V
300 V
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Manufacturer part #
DS1.5-TW-01P-12-00A(H)
- Content
1 pc(s)
- Type
DS1.5-TW-01P-12-00A(H)
- Dim
(L x W x H) 54 x 3.5 x 32 mm
- Width
3.5 mm
- Height
32 mm
- Length
54 mm
- RoHS-compliant
Yes
- Compatible with (details)
DIN rail NS 35
7.5
NS 35
15 and NS 32
- Rated surge voltage
6 kV
- Weight
1 g
- Product type
Continuity
