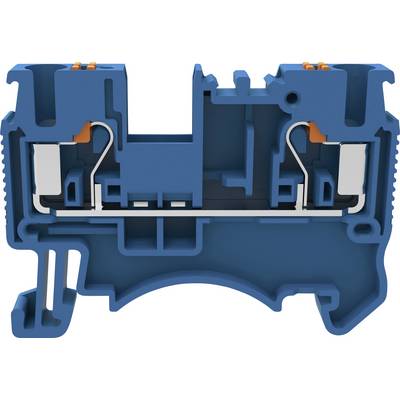

Degson DS2.5-01P-12-00A(H) Continuity Push-in connector Blue 1 pc(s)
EAN:
Part number:
Item no:
Connection
Push-in connector
Cross section (flexible) (min.)
0.2 mm²
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (min.)
0.2 mm²
Cross section (inflexible) (max.)
4 mm²
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.62
10
8% = € 0.05
€ 0.57
25
11% = € 0.07
€ 0.55
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.62 / piece)
€ 0.83
-25 %
€
Highlights & Details
DEGSON DS2.5 series terminal gray 0.2 mm² - 4 mm²
- For rigid conductors and flexible conductors with wire-end sleeve, push-In connection
- This text is machine translated.
Our service for you
Technical specifications
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Number of pins
1
- Factory colour
Blue
- Nominal current
24 A
20 A
- Nominal current - rounded value
NaN A
- Nominal voltage
1000 V
600 V
- Min. stripping length
10 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
DS2.5-01P-12-00A(H)
- Content
1 pc(s)
- Type
DS2.5-01P-12-00A(H)
- Dim
(L x W x H) 48.6 x 5.2 x 37 mm
- Width
5.2 mm
- Height
37 mm
- Length
48.6 mm
- RoHS-compliant
Yes
- Compatible with (details)
DIN rail NS 35
7.5
NS 35
15 and NS 32
- Rated surge voltage
8 kV
- Product type
Continuity
