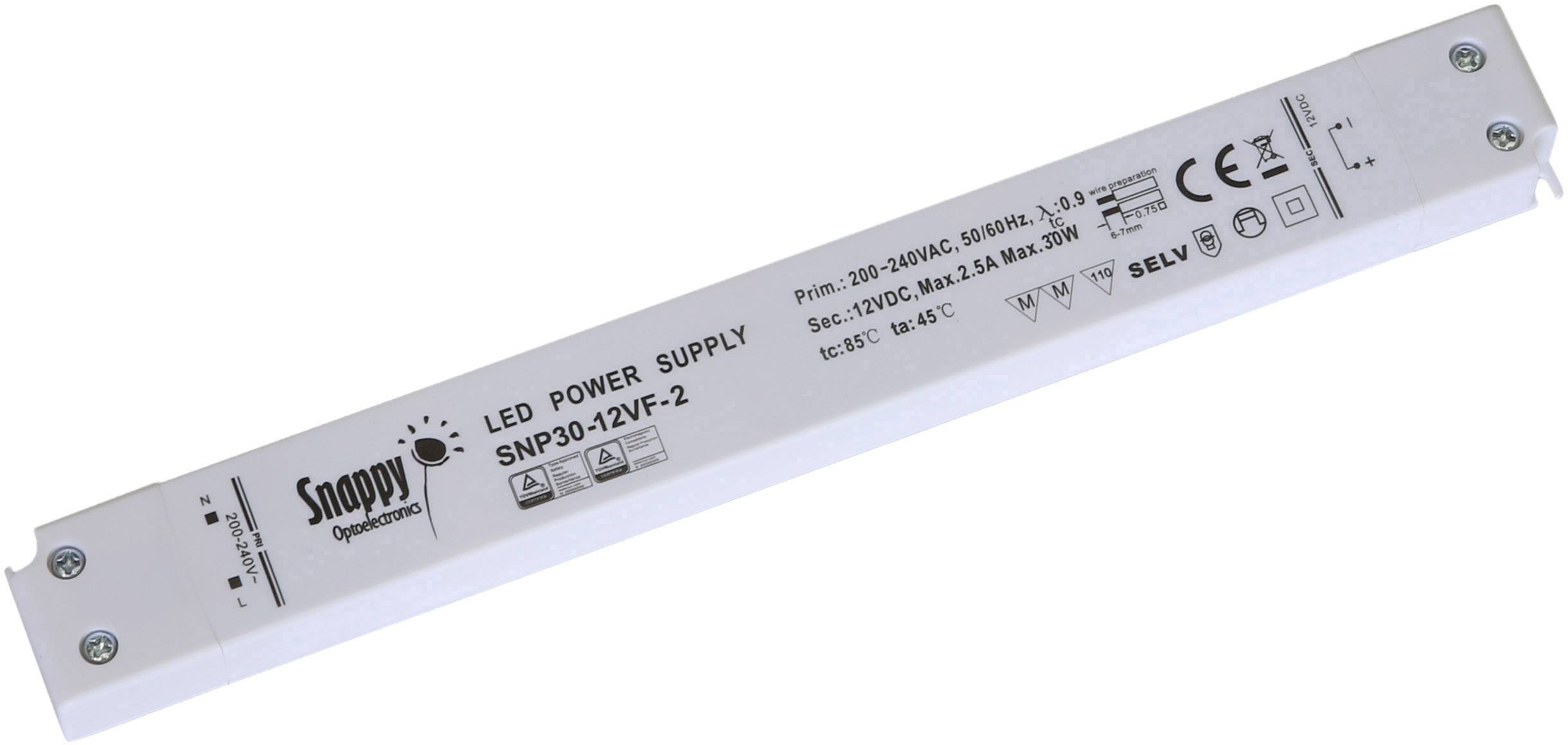

Dehner Elektronik SNP30-12VF-2 LED transformer Constant voltage 30 W 0 - 2.5 A 12 V DC not dimmable, Suitable for flamma
EAN:
Part number:
Item no:
11 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€
Highlights & Details
SNP30-12VF-2
- Constant voltage
- 12 V DC
- 0 - 2.5 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 160 mm x 58 mm x 18 m
- Output voltage (max.)
12 V DC
- Test mark
SELV MM
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
not dimmable
Suitable for flammable surfaces
Approved for use on furniture
IP20
- Connection
Screw terminal
- Max. power
30 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 A
- Input voltage (max.)
264 V AC
- Min. input voltage
180 V AC
- Weight
150 g
- Power range
30 W (max)
- Width
58 mm
- Height
18 m
- Length
160 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1534664 Dehner Elektronik SNP30-12VF-2 LED transformer Constant voltage 30 W 0 - 2.5 A 12 V DC not dimmable, Suitable for flamma
Warranty Terms
Warranty Terms 1534664 Dehner Elektronik SNP30-12VF-2 LED transformer Constant voltage 30 W 0 - 2.5 A 12 V DC not dimmable, Suitable for flamma
Description
Specially designed for LED lighting power supply with fixed voltage output. Suitable for all LED applications (DC) with an operating voltage of 12 V.
This text is machine translated.
This text is machine translated.
Features
- Short circuit, overheating and overload protection
- Plastic housing according to IP20.
- With connecting terminals for power input and DC output.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
