Buy Dehner Elektronik SPE 320-48 SMPSU 48 V DC 6.7 A 320 W

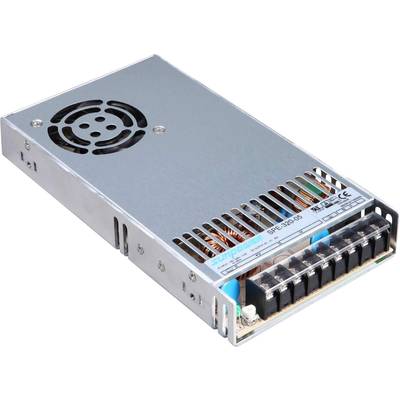

A rectangular silver power supply unit with a fan and connection terminals for electrical connections, marked with technical specifications.

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Dehner Elektronik SPE 320-48 SunPower 320 Watt

Output 48 V DC / 6.7 A
Power 320 W
Screw terminal

Technical specifications

Max. output current: 6.7 A

Output current (max.) - rounded: 6.7 A

Dim: (L x W x H) 212 x 115 x 30 mm

Height: 30 mm

Length: 212 mm

Width: 115 mm

Connection: Screw terminal

Type: closed

PSU features: Regulated

Type: SPE 320-48

MTBF: 176000 h

Input voltage (max.): 264 V AC
375 V DC

Min. input voltage: 85 V AC
120 V DC

Operating temperature (max.): 50 °C

Operating temperature (min.): -30 °C

Max. operating temperature (derating): 70 °C

Output voltage (max.): 48 V DC

No. of outputs: 1 x

: 320 W

Type: Switched PSU

PFC: Yes

Max. temperature: 85 °C

Min. temperature: -40 °C

Weight: 720 g

Product type: SMPSU

Documents & Downloads

Warranty Terms

Warranty Terms 2139998 Dehner Elektronik SPE 320-48 SMPSU 48 V DC 6.7 A 320 W

Description

With the SPE series, Sunpower is expanding its portfolio to meet the needs of the music, film and advertising industries, recording studios, music producers and artists. Other applications include applications for the PA of arenas, exhibition halls and large events, electronic devices for content creation and consumer electronics.

By being approved to the EN 62368-1 standard to be applied from 21 June 2019, developers can plan the SPE series power supplies for applications of all kinds in a future-proof manner. The low design of only 30mm makes it also suitable for 1U racks.

The IEC/EN 62368-1 standard summarizes the previous safety standards for IT applications (IEC/EN 60950-1) and for audio/video applications (IEC/EN 60065). The new standard covers security aspects for IT and telecommunications applications as well as for audio and video applications.
