DEWALT DCB1104H2-QW DCB1104H2 Tool battery
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Battery kit (2x 18V/5Ah PS plus DCB1104)
- Product strengths:DCBP518: 18 Volt / 5.0 Ah Powerstack battery
- Can be used in all 18 Volt XR battery machines
- It has the following advantages as compared to conventional round cell batteries at the same voltage level and comparable capacity:
- 1. Significantly higher machine power delivery in certain applications due to a more efficient flow of current due to lower internal resistances Lower
- 2. Significantly longer running time per battery charge
- 3. Higher number of charge cycles and thus longer service life through more efficient temperature control as well as better possibility of heat dissipation due to the flat large outer shape of the cells and the optimum surface/volume ratio
- No memory effect and the lowest self-discharge ensure trouble-free long term use
- Optimally suitable for the hard daily use through sturdy battery casing as well as impact-resistant soldered cells
- Lowest contact resistance when connecting individual cells
- Large-area contacts that are protected against accidental short-circuits
- Controlled use by reliable capacity display over 3 LEDs
- DCB 1104: System quick charger
- Charges all Dewalt XR slide batteries (1.3 - 5.0 Ah) from 10.8 to 18 volts as well as XR Flex volt batteries
- Dewalt 2-stage charging process prevents the batteries from overheating and allows a high number of charge cycles at maximum storage capacity
- LED display informs about the battery and charging status
- Also suitable for wall mounting
- Due to its very compact dimensions it is optimally suitable for installation
Technical specifications
- Type
DCB1104H2
- Rechargeable
Yes
- Size
Non-standard rechargeable
- Product type
Tool battery
Documents & Downloads
Datasheet
Datasheet 3014905 DEWALT DCB1104H2-QW DCB1104H2 Tool battery
User & Safety Instructions
User & Safety Instructions 3014905 DEWALT DCB1104H2-QW DCB1104H2 Tool battery
Description

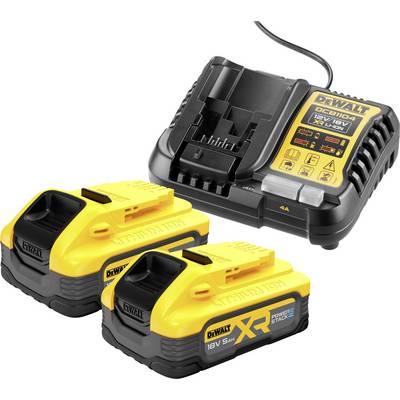

Dewalt DCB1104H2-QW rechargeable battery kit (2x 18V/5Ah PS plus DCB1104)
This text is machine translated.
This text is machine translated.
Features
- Technical data:DCBP518
- Rechargeable battery (voltage / capacity) 18 Volt / 5.0 Ah
- Battery technology: Lithium-ion (Li-ion) / pouch-cells
- Dimensions (L x W x H) 13.0 x 8.5 x 6.5 cm
- Weighs 0.75 kg.
- DCB 1104
- For battery type (volt): 10.8 / 14.4 / 18 / 54 (only XR slider batteries as well as XR Flexvolt batteries)
- Li-Ion rechargeable battery technology
- Charging current: 4.0 A
- Charging time: Approx. 20 min (1.3 Ah batteries), approx. 25 min (1.5 Ah batteries), approx. 30 min (2.0 Ah batteries), approx. 60 min (4.0 Ah batteries), approx. 70 min (5.0 Ah batteries), approx. 90 min (FV batteries with 108 Wh or 6 Ah), approx. 135 min. (FV battery with 162 Wh or 9 Ah), approx. 180 min (FV battery with 216 Wh or 12 Ah)
- Dimensions (L x W x H in cm) 14.5 x 11.5 x 7
- Weight (kg): 0.5
