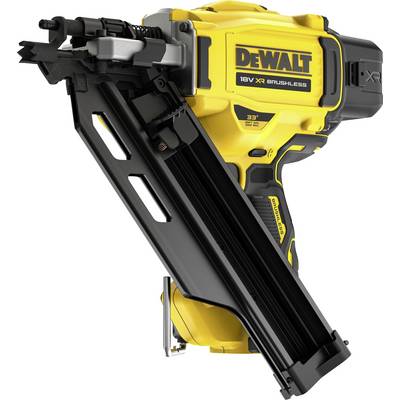

DEWALT DCN930N-XJ DCN930N-XJ Cordless nail gun brushless, w/o battery, w/o charger
EAN:
Part number:
Item no:
Technical specifications
- All 18 Volt XR or XR flex volt batteries of all Ah classes
- Nail type: D-head nails wired or paper-bound
- Nail length (mm) 50 - 90
- Nail diameter (mm): 2.8 – 3.3
- Magazine angle 33 °
- Magazine capacity: 55 nails
- Number of nails per battery charge (with 5 Ah battery): 528
- Trigger safeguard: Single and contact release
- Weight (without battery): 3.9 kg
- Sound pressure level LPA dB(A): 87.0
- Sound power level LWA dB(A): 98.0
- K dB(A) 3.0
- Vibration(m/s²): 3
- K (m/s²): 1.5
- Features
brushless
w/o battery
w/o charger
- Voltage
18 V
- Max. nail length
90 mm
- Power supply (LOV)
rechargeable
- Product type
Cordless nail gun
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3340468 DEWALT DCN930N-XJ DCN930N-XJ Cordless nail gun brushless, w/o battery, w/o charger
Description
Features
- Brushless motor technology enables adequate power for an easy insertion of 90mm ring shaft nails up to 2.8 mm
- Can be used with all 18 Volt Li-Ion XR or XR Flexvolt batteries
- Easy and quick removal of jammed nails in the fire tunnel
- Safety switch prevents unintended triggering
- High shot sequence through reliable contact release
- No high operating costs for gas cartridges due to battery operation
- 20% faster than DCN692 for an even faster nail application in both single and contact triggering
- Optimised nose for diagonal driving of the nails
- Compact design, fits between 40 cm beam distance
- Safe and convenient use thanks to rotating belt and wire hooks
- Protective cap for protecting work surfaces
- Extended magazine available as separate accessory (DZN930) for longer use before recharging
- Tool-free depth setting with the help of adjusting wheels
- Processes common, paper or wired 30° 34° D head nails
- This text is machine translated.
Scope of delivery
- Rotating belt/ladder hook
- Cap
- Fixed spanner
