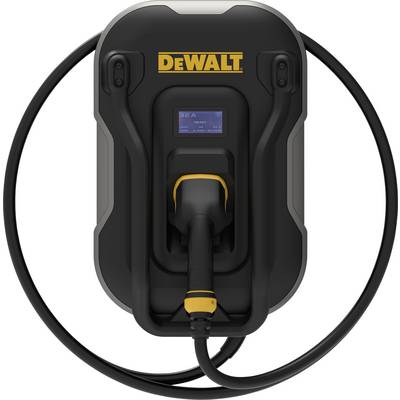

DEWALT EV200D-32W-22C Wallbox Type 2 Mode 3 32 A 22 kW RFID, App
EAN:
Part number:
Item no:
Number
Total (€ 368.91 / piece)
€
Only 9 Piece(s) available
Highlights & Details
DEWALT EV200D-32W-22C Wallbox Type 2 Mode 3 32 A 22 kW RFID, App
- DEWALT EV Charger connect App via Bluetooth® and WiFi to control charging processes, monitor charging status in real time and set charging schedules.
- LCD display
- Charging in accordance with IEC 61851 Mode 3, up to 22 kW
- 5 m Type 2 charging cable
Technical specifications
- Product type
Wallbox
- Authorisation
RFID
App
- Charger connectors
Type 2
- Charging mode
Mode 3
- Charging current
32 A
- Charging capacity
22 kW
- No. of phases
3-phase
- Nominal voltage
400 V AC
- Cable length
5 m
IP65
- Width
280 mm
- Height
440 mm
- Depth
189 mm
- Weight
6.64 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400577 DEWALT EV200D-32W-22C Wallbox Type 2 Mode 3 32 A 22 kW RFID, App
Description
Quick charging with confidence.
This robust EV charger offers the long life and safety you expect from Dewalt. High-quality materials and a revolutionary design are perfectly implemented thanks to the robust protective cage, the 5 m long, high-quality UL-certified cable and slip-proof charging handle. The CSA-certified EV charger is suitable for indoor and outdoor use and is equipped with protection class IP65. It offers over 10 advanced security features, including surge, over current, over-heating, overload and over-voltage protection.
This text is machine translated.
This robust EV charger offers the long life and safety you expect from Dewalt. High-quality materials and a revolutionary design are perfectly implemented thanks to the robust protective cage, the 5 m long, high-quality UL-certified cable and slip-proof charging handle. The CSA-certified EV charger is suitable for indoor and outdoor use and is equipped with protection class IP65. It offers over 10 advanced security features, including surge, over current, over-heating, overload and over-voltage protection.
This text is machine translated.
Features
- Manufactured with high-grade materials and designed to last, your charger is protected from scratches and dents
- Charging according to IEC 61851 mode 3, up to 22kW
- With 5m Type 2 charging cable
- Connect the DEWALT EV Charger app via Bluetooth® and Wi-Fi, to control the charging sessions, monitor the charging status in real-time and set charging schedules
- LCD screen shows status of charge, output current, charging time, voltage, actual current, electricity consumption, etc.
- RFID card to authorize charging
- Over/ under voltage protection
- Over current protection
- Ungrounded protection
- Leakage protection
- Over/ under temperature protection
- IP65 for wallbox
Scope of delivery
- 1x Wallbox
- 1x Mounting bracket
- 1x Wall mounting hardware
- 1x RFID card
- 1x User manual
