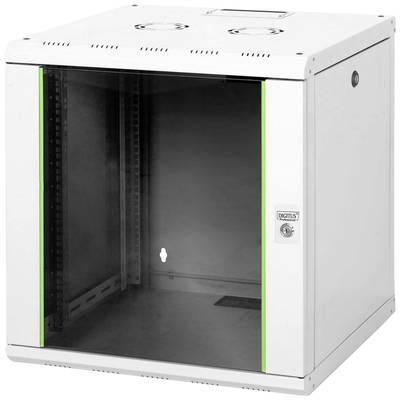

Digitus DN-19 12U-6/6 19" wall cabinet (W x H x D) 600 x 643 x 600 mm 12 U Grey-white (RAL 7035)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
wall mounting cabinet
- 1.1 - 1.5 mm robust steel sheet with high load capacity, powder-coated
- Side parts are removable and can be locked
- Ventilation slots for active and passive ventilation
Technical specifications
- Dim
(W x H x D) 600 x 643 x 600 mm
- Factory colour
Grey-white (RAL 7035)
- Depth
600 mm
- Height
643 mm
- Width
600 mm
- Rack unit
12 U
- Material
Safety glass
Steel
- Wireless charging
No
- Weight
30 kg
- Product type
19" wall cabinet
Documents & Downloads
Datasheet
Datasheet 992948 Digitus DN-19 12U-6/6 19" wall cabinet (W x H x D) 600 x 643 x 600 mm 12 U Grey-white (RAL 7035)
User & Safety Instructions
User & Safety Instructions 992948 Digitus DN-19 12U-6/6 19" wall cabinet (W x H x D) 600 x 643 x 600 mm 12 U Grey-white (RAL 7035)
Description
· 1.1 – 1.5 mm strong sheet steel with high load capacity, powder coated
· Side sections detachable and lockable
· Ventilation slots for active and passive ventilation and exhaustion
· IP 20 rating
· Lockable safety-glass door with steel frame
· 483 mm (19") profile rails on the front side & rear side, adjustable in depth
· Cable entry on the rear side and bottom with plastic cover and top with sliding cover
· Inclusive 8 pieces mounting set
· Extensive range of accessories available
· Side sections detachable and lockable
· Ventilation slots for active and passive ventilation and exhaustion
· IP 20 rating
· Lockable safety-glass door with steel frame
· 483 mm (19") profile rails on the front side & rear side, adjustable in depth
· Cable entry on the rear side and bottom with plastic cover and top with sliding cover
· Inclusive 8 pieces mounting set
· Extensive range of accessories available
Features
- Protection type IP20Lockable safety glass door with steel frames483 mm (19") profile rails mounted on the front and rear inside, adjustable depthCable feed at rear and bottom with plastic cover and top with sliding coverIncludes 8 x 19" mounting screws 100 kg load capacityCabinet type: Wall housingFront door: Glass door
Scope of delivery
- Wall cabinet, 2 x profile rails, mounting screws (8 pieces), instructions.
