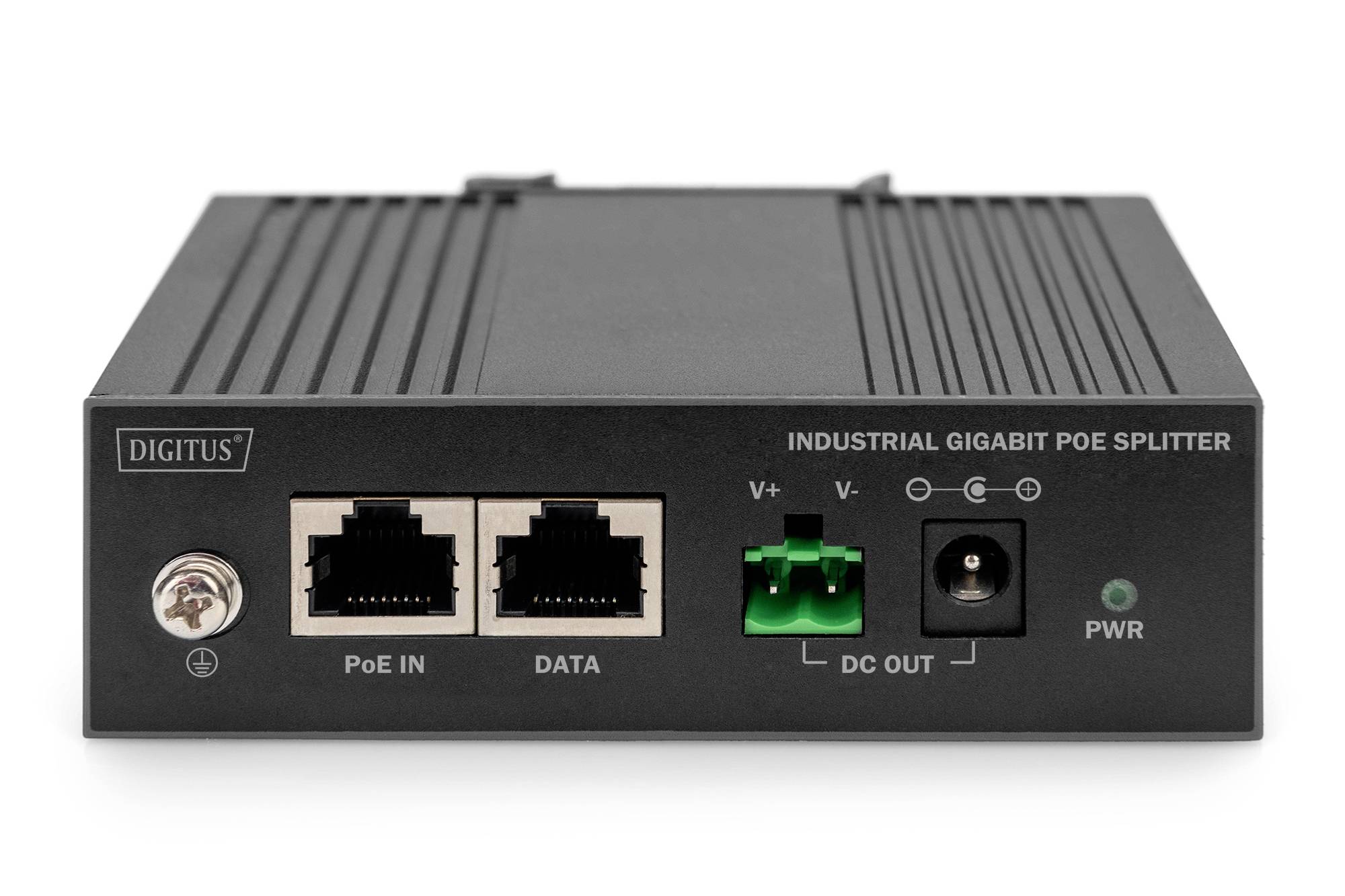

A black industrial Gigabit PoE splitter with two Ethernet ports, a green DC output, and a network connection.

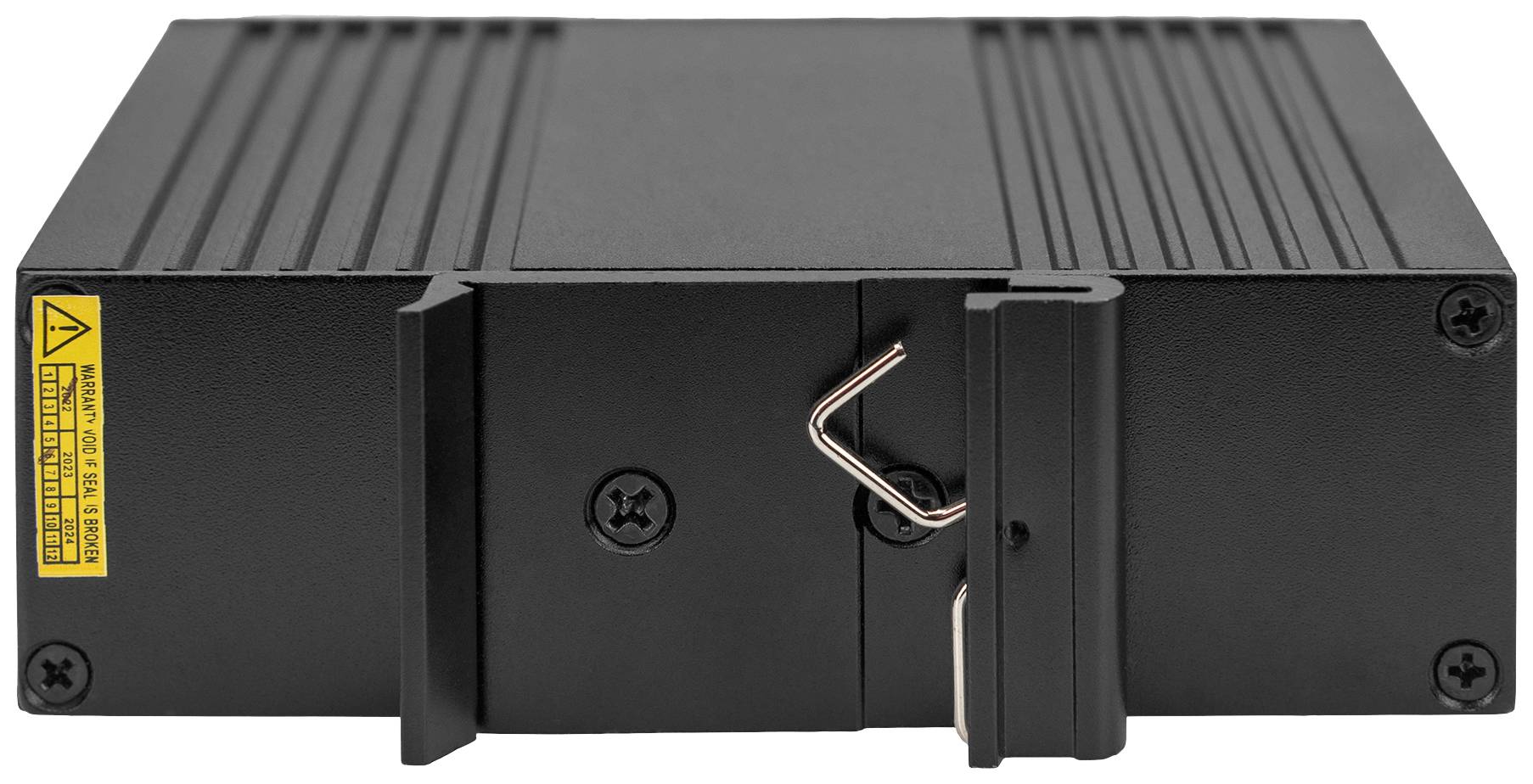

A black, rectangular technical device with a metal enclosure and warning label. The front has a removable plate with a locking mechanism.

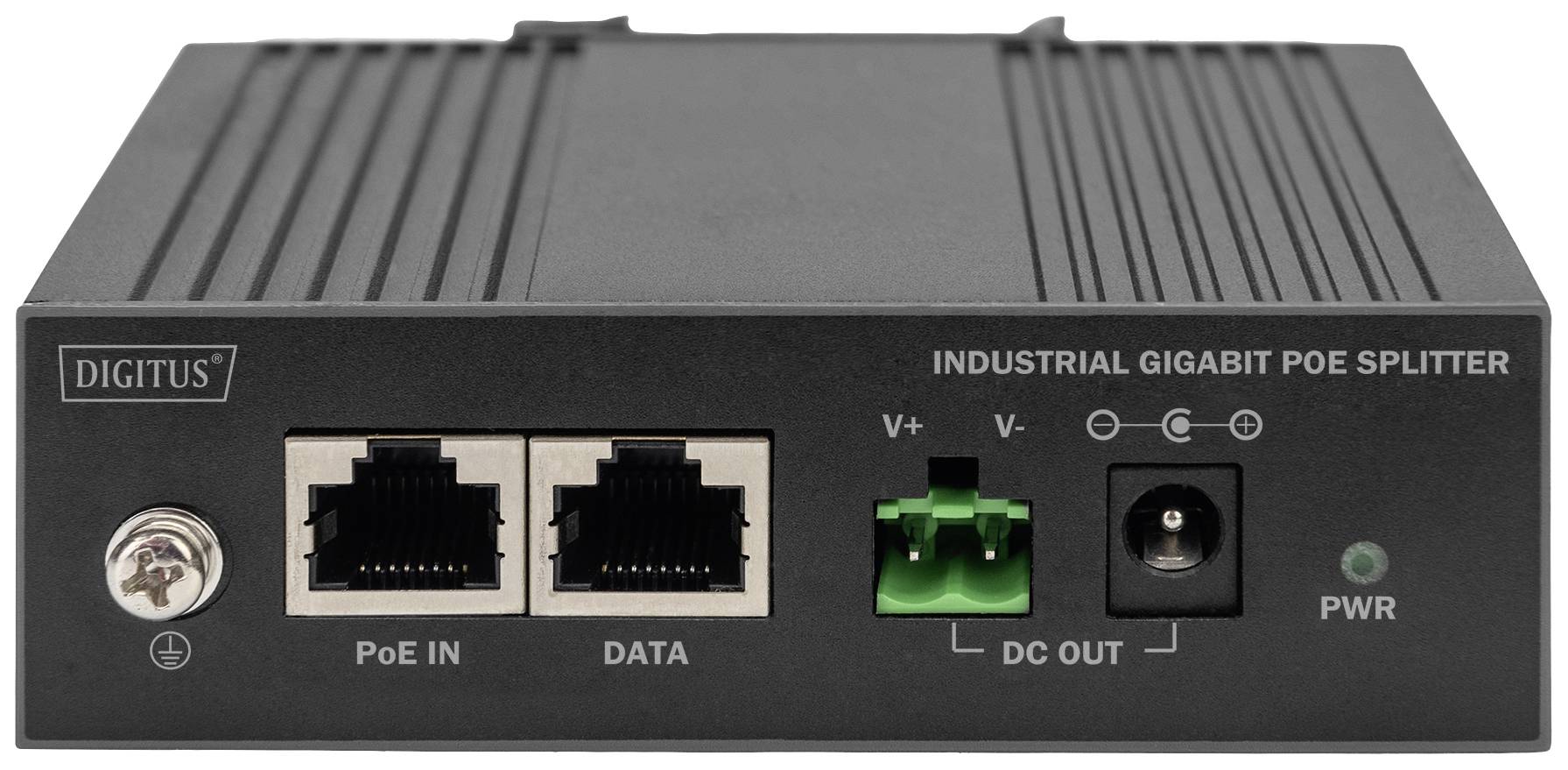

'Industrial Gigabit PoE Splitter' with connections for 'PoE IN', 'DATA', and 'DC OUT'. Black enclosure with LED indicator.

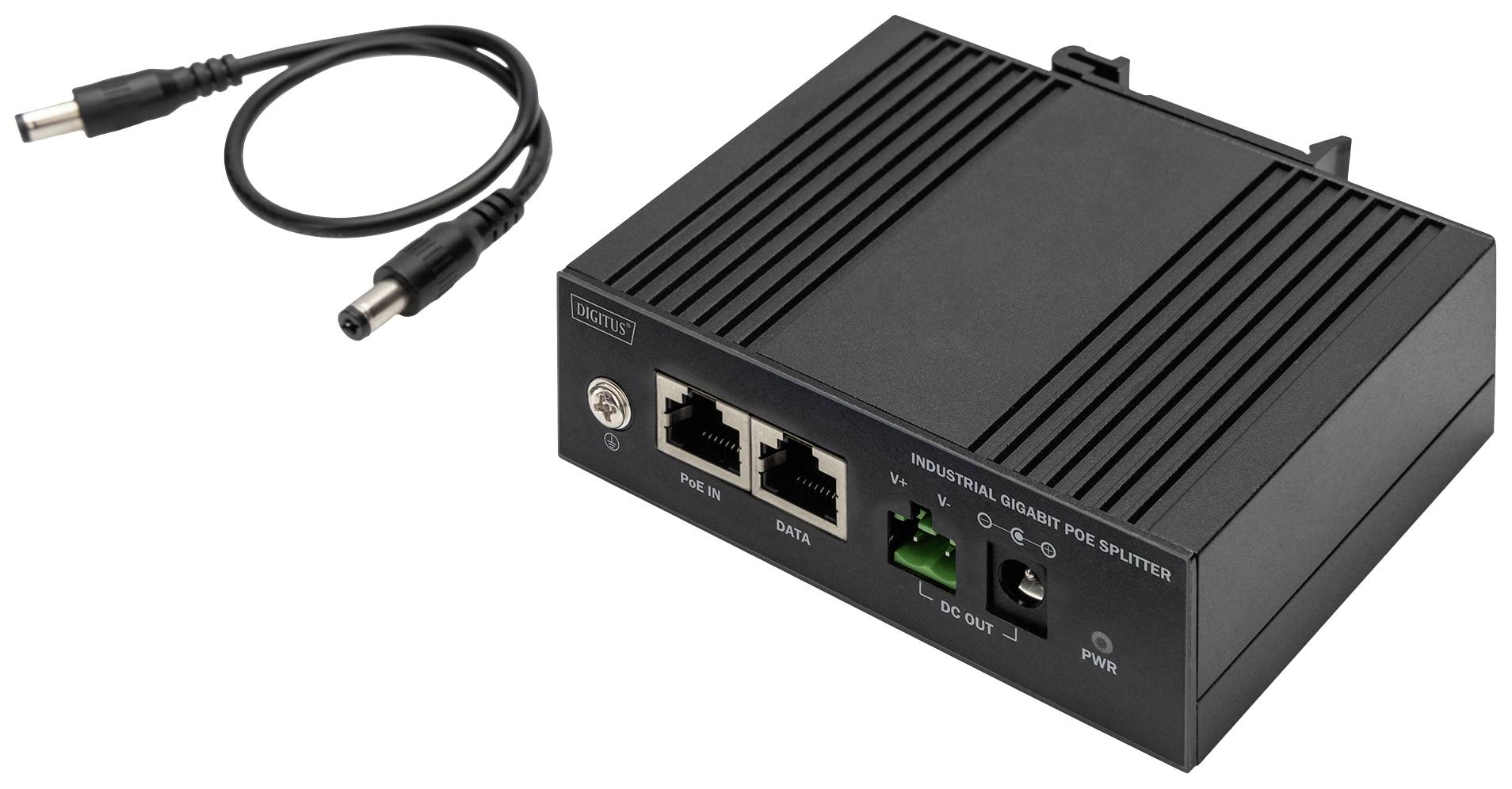

Industrial Gigabit PoE splitter with two Ethernet ports, green earthing connection, and power LED indicator. Includes power cable.

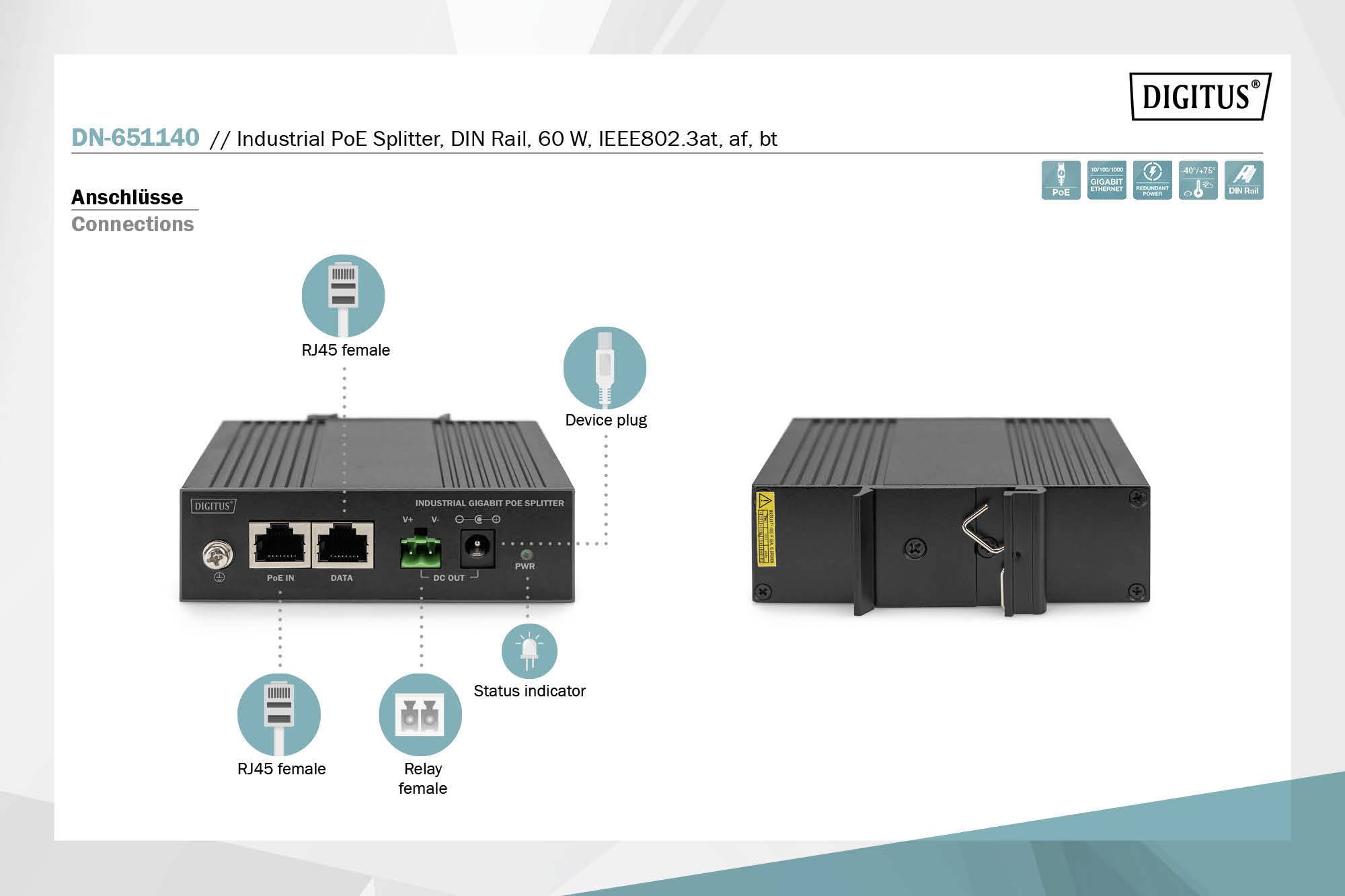

'DN-651140 Industrial PoE Splitter, DIN-Rail 60W IEEE802.3at' is shown with connections and status indicators. RJ45 ports on the left.

'Block diagram of a PoE system with PoE network switch, PoE splitter and non-PoE IP camera. Illustrates the flow of power and data.'

Industrial PoE splitter with DIN rail mounting. Supports Gigabit Ethernet and redundant power. Temperature range: -40° to +75°C.

1/8

72 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 42.01 / piece)

€

Report legal concerns

Highlights & Details

Digitus gigabit Ethernet PoE splitter, industrial, 60W

Ports: 1: 10/100/1000M RJ45 PoE port (DATA + Power IN), 2.: 10/100/1000M RJ45 LAN port (DATA only), 3.: Connection (DC OUT)
Network-Media: 10Mbps: CAT 3.4,5, 100Mbps: CAT. 5,5E, 1000Mbps CAT 5E, 6
Pass-through data rates 10/100/1000 Mbit/s.

Technical specifications

Conforms to IEEE802.3af, IEEE802.3at, IEEE802.3at.
Supports PoE applications in Gigabit Ethernet environments.
The Auto-Sensing algorithm allows the current consumption of IEEE802.3at up to 51 W.
Splits the 48VDC input power that is transferred via the RJ45 Ethernet cable into a power supply and data transfer
Supports a wide input voltage range from 36Vdc to 57Vdc.
Maximum output power up to 51W.
Output: 12VDC/4.25A
Thermal cutoff
Short-circuit protection.
Highly efficient DC/DC-converter.
Power consumption LED indicators
DIN top hat rail installation
DDM support: No.
Industrial use: No.
PoE injector: No.

Product type: PoE splitter

LAN transfer rate: 1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Managed switch

IEEE 802.3af PoE: 2

PoE ports: 2

10/100/1000 Mbps ports: 2 x

Router features: PoE

Power supply (LOV): mains-powered (redundant)

Weight: 0.404

Type: DN-651140

Rack size: 254 mm (10")
483 mm (19")

Factory colour: Black

Max. ambient temperature: -40 °C

Min. ambient temperature: 80 °C

Port: 2 ports

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2997766 Digitus DN-651140 DN-651140 PoE splitter 2 ports 10 / 100 / 1000 MBit/s PoE

Description

The DN-651140 PoE splitter splits the 48 VDC over the RJ45 Ethernet cable into 12 VDC current output. Supports PoE applications in Gigabit Ethernet environments The modules comply with IEEE 802.3bt power classification and support PSE Alternative A and Alternative B ports. The maximum output power can reach 51W.

This text is machine translated.

Features

Supported standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE 802.3at
Output voltage: 12V DC, maximum 4.25A current
Power supply DC input voltage 36 to 57 V AC
Indicator: PoE ready/in operation
Network media (cable): 10BASE-T: UTP Category 3,4,5 cables (≤100m), 100BASE-TX: Category 5 UTP cable (≤100m), 1000BASE-T: Category 5e UTP cable (≤100m)
Connectors: Shielded RJ-45, EIA 568A and 568B
Environmental conditions: Operating ambient temperature:-40 to 75℃
Operating Humidity: Maximum 90%, non-condensing
Storage temperature: -40 to 75℃
Storage humidity: Maximum 95%, non-condensing
Conforms to IEEE 802.3at, IEEE 802.3at, IEEE 802.3at
Dimensions (L*B*H):103 *177 *32 mm
