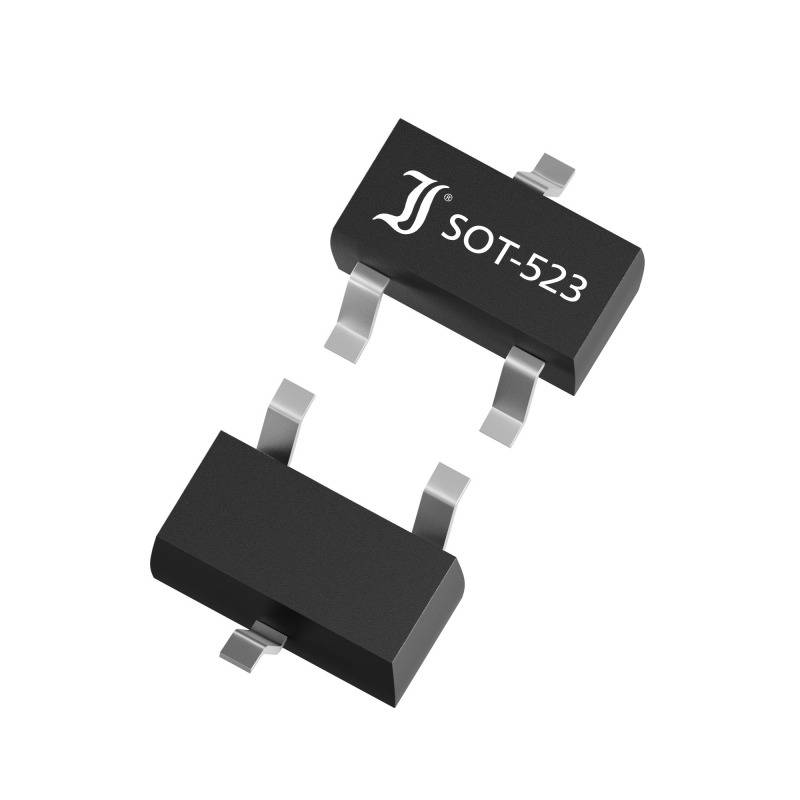

A SOT-523 package consisting of two small, black, rectangular components with connecting pins for electronic applications.

Image similar

A SOT-523 package consisting of two small, black, rectangular components with connecting pins for electronic applications.

Image similar

Enclosure

SOT 523

Reverse voltage U(R)

5 V

Mounting type

Surface-mount

Range of use

ESD

Product type

ESD diode

Datasheet (PDF)

English

Diotec

Show alternatives

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 750

Total (€ 0.03164 / piece)

€

Report legal concerns

Technical specifications

Type: ESD0502BA

Enclosure: SOT 523

Manufacturer: Diotec

Reverse voltage U(R): 5 V

Breakdown voltage U(BR): 8.50 V

Diode capacitance C(D): 1 pF

Mounting type: Surface-mount

RoHS-compliant: Yes

Range of use: ESD

Product type: ESD diode

Documents & Downloads

Datasheet

English

Datasheet 2807724 Diotec ESD ESD diode ESD0502BA SOT 523 8.50 V
