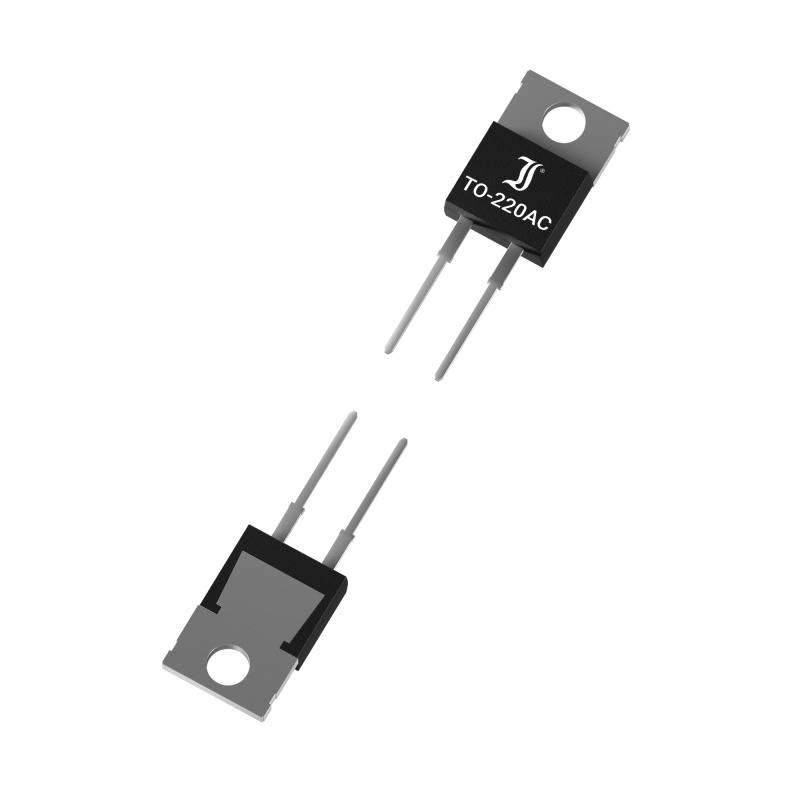

Diotec Rectifier KT20K150 TO 220AC 150 V 20 A
Part number:
Item no:
Enclosure
TO 220AC
Forward current I(F)
20 A
Reverse voltage U(R)
150 V
Forward voltage U(F)
0.98 V
Mounting type
Through-hole mounting
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.79038
90
8% = € 0.06
€ 0.72676
150
11% = € 0.09
€ 0.70130
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.79038 / piece)
€
Technical specifications
- Type wire-leadCasing TO-220AC.Periodic Peak Reverse Voltage - VRRM 150 VContinuous current - IFAV 20.00 AJunction temperature - Tjmax 175 °CReverse delay time - trr: 300 nsSurge current - IFSM 350.00 AForward voltage - VF 0.98 VIF 20.00 AReverse current - IR 5,000 µAVR 150 VLock layer capacity - CJ: PFVR V
- Type
KT20K150
- Enclosure
TO 220AC
- Manufacturer
Diotec
- Forward current I(F)
20 A
- Reverse voltage U(R)
150 V
- Forward voltage U(F)
0.98 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
175 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
350 A
- Reverse recovery time T(rr)
300 ns
- RoHS-compliant
Yes
- Product type
Rectifier
Documents & Downloads
Datasheet
Datasheet 2807834 Diotec Rectifier KT20K150 TO 220AC 150 V 20 A
