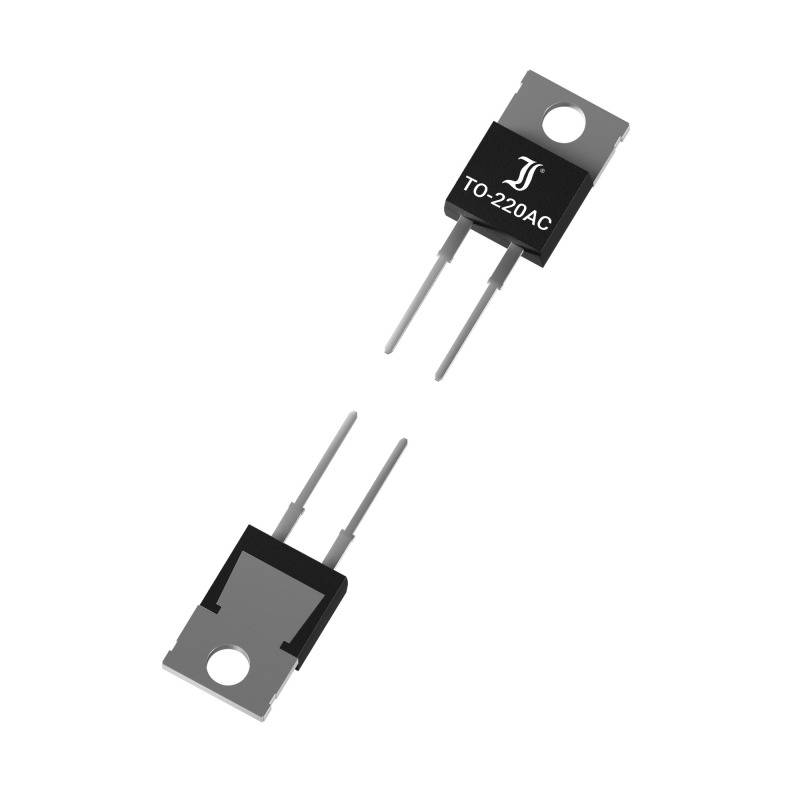

A black electronic semiconductor component with the marking 'TO-220AC', shown from two perspectives.

Image similar

A black electronic semiconductor component with the marking 'TO-220AC', shown from two perspectives.

Image similar

Enclosure

TO 220AC

Forward current I(F)

8 A

Reverse voltage U(R)

150 V

Forward voltage U(F)

1 V

Mounting type

Through-hole mounting

Datasheet (PDF)

English

Diotec

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 30

Total (€ 0.57029 / piece)

€

Report legal concerns

Technical specifications

Type wire-leadCasing TO-220AC.Periodic Peak Reverse Voltage - VRRM 150 VContinuous current - IFAV 8.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 25 nsSurge current - IFSM 112.00 AForward voltage - VF 1.00 VIF 8.00 AReverse current - IR 5,000 µAVR 150 VLock layer capacity - CJ: PFVR V

Type: UFT800C

Enclosure: TO 220AC

Manufacturer: Diotec

Forward current I(F): 8 A

Reverse voltage U(R): 150 V

Forward voltage U(F): 1 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 112 A

Reverse recovery time T(rr): 25 ns

RoHS-compliant: Yes

Product type: Rectifier

Documents & Downloads

Datasheet

English

Datasheet 2808856 Diotec Rectifier UFT800C TO 220AC 150 V 8 A
