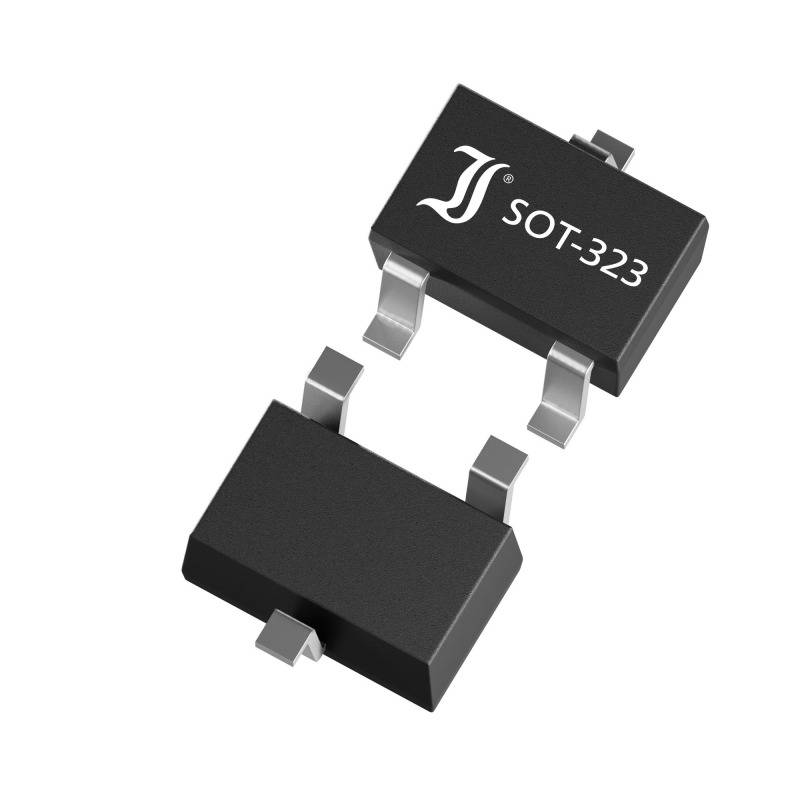

Image similar
Image similar
Diotec Schottky diode BAS70-04W-AQ SOT 323 50 V
Part number:
Item no:
Enclosure
SOT 323
Reverse voltage U(R)
50 V
Forward current I(F)
1 A
Forward voltage U(F)
1 V
Mounting type
Surface-mount
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
500
-
€ 0.04949
1500
9% = € 0.00
€ 0.04498
2500
13% = € 0.01
€ 0.04318
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 500
Total (€ 0.04949 / piece)
€
Technical specifications
- Type SMDSOT-323 housingPeriodic Peak Reverse Voltage - VRRM 70 VContinuous current - IFAV 0.07 AJunction temperature - Tjmax 150 °CForward voltage - VF 1.00 VIF 0.01 ASurge current - IFSM 0.10 AReverse current - IR 0,100 µAVR 50 VLock layer capacity - CJ 2 pFVR 0 V
- Type
BAS70-04W-AQ
- Enclosure
SOT 323
- Manufacturer
Diotec
- Reverse voltage U(R)
50 V
- Forward current I(F)
1 A
- Reverse leakage current I(r)
0.100 µA
- Peak forward surge current I(FSM)
0.10 A
- Forward voltage U(F)
1 V
- Diode capacitance C(D)
2 pF
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1 pc(s)
- Product type
Schottky diode
Documents & Downloads
Datasheet
Datasheet 2809120 Diotec Schottky diode BAS70-04W-AQ SOT 323 50 V
