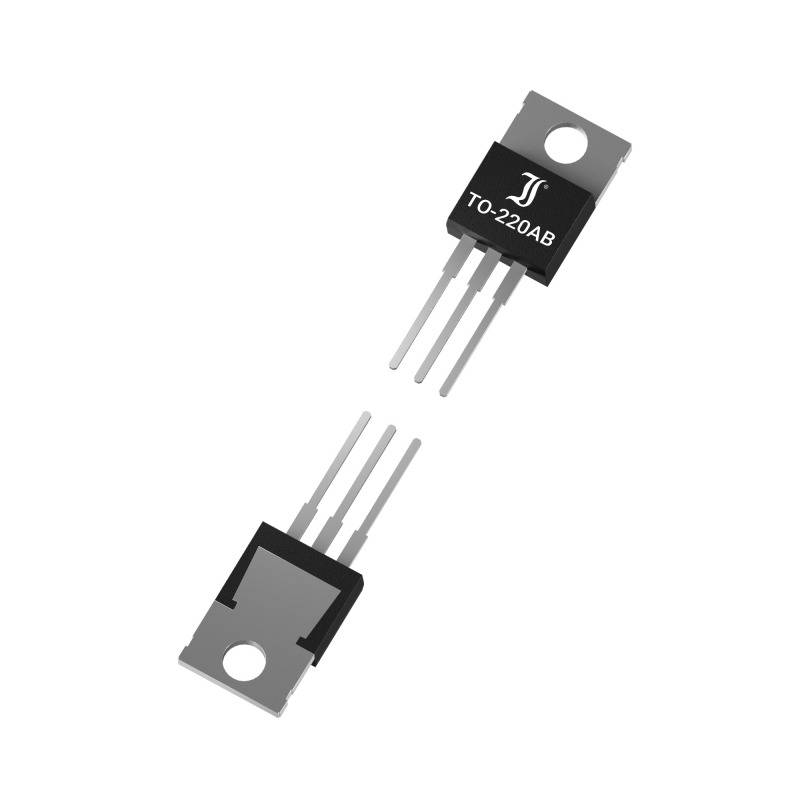

Two electronic components with three connecting pins in a TO-220AB package form. They are positioned offset from each other.

Image similar

Two electronic components with three connecting pins in a TO-220AB package form. They are positioned offset from each other.

Image similar

Enclosure

TO 220AB

Reverse voltage U(R)

200 V

Forward current I(F)

5 A

Forward voltage U(F)

0.84 V

Mounting type

Through-hole mounting

Datasheet (PDF)

English

Diotec

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 40

Total (€ 1.41018 / piece)

€

Report legal concerns

Technical specifications

Type wire-leadCasing TO-220AB.Periodic Peak Reverse Voltage - VRRM 200 VContinuous current - IFAV 10.00 AJunction temperature - Tjmax 175 °CForward voltage - VF 0.84 VIF 5.00 ASurge current - IFSM 80.00 AReverse current - IR 10,000 µAVR 200 VLock layer capacity - CJ 300 pFVR 4 V

Type: MBR10200CT

Enclosure: TO 220AB

Manufacturer: Diotec

Reverse voltage U(R): 200 V

Forward current I(F): 5 A

Reverse leakage current I(r): 10 µA

Peak forward surge current I(FSM): 80 A

Forward voltage U(F): 0.84 V

Diode capacitance C(D): 300 pF

Operating temperature (max.): 175 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)

Product type: Schottky diode

Documents & Downloads

Datasheet

English

Datasheet 2809923 Diotec Schottky diode MBR10200CT TO 220AB 200 V
