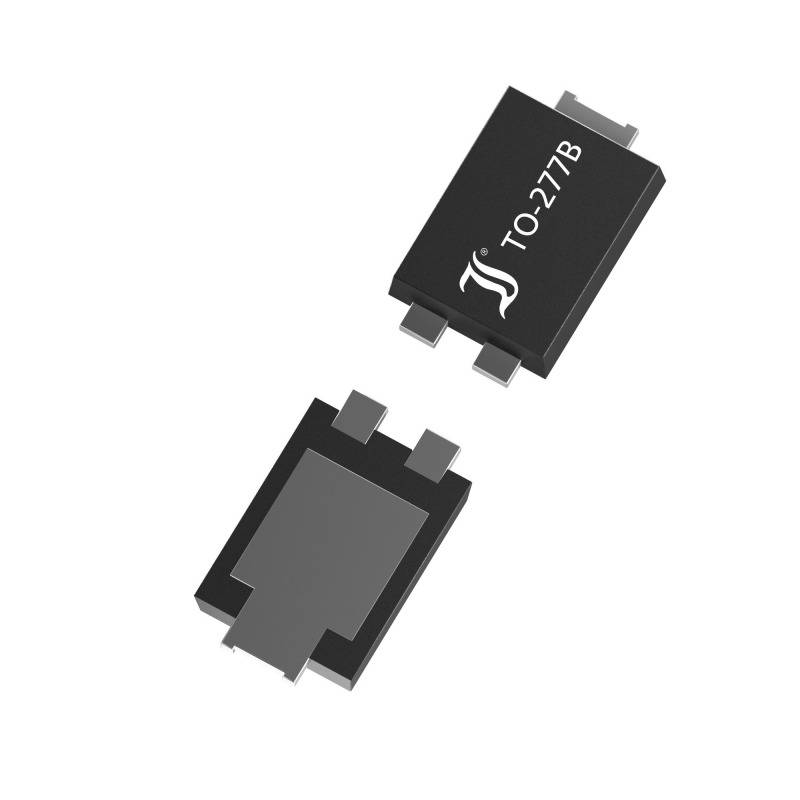

Two black semiconductor components in TO-277B package form with visible metal contacts on a white background.

Image similar

Two black semiconductor components in TO-277B package form with visible metal contacts on a white background.

Image similar

Enclosure

TO-277B

Reverse voltage U(R)

60 V

Forward current I(F)

10 A

Forward voltage U(F)

0.63 V

Mounting type

Surface-mount

Datasheet (PDF)

English

Diotec

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 60

Total (€ 0.25961 / piece)

€

Report legal concerns

Technical specifications

Type SMDCasing TO-277B.Periodic Peak Reverse Voltage - VRRM 60 VContinuous current - IFAV 10.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 0.63 VIF 10.00 ASurge current - IFSM 220.00 AReverse current - IR 300,000 µAVR 60 VLock layer capacity - CJ: PFVR V

Type: PPS1060

Enclosure: TO-277B

Manufacturer: Diotec

Reverse voltage U(R): 60 V

Forward current I(F): 10 A

Reverse leakage current I(r): 300 µA

Peak forward surge current I(FSM): 220 A

Forward voltage U(F): 0.63 V

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

Content: 1 pc(s)

Product type: Schottky diode

Documents & Downloads

Datasheet

English

Datasheet 2810477 Diotec Schottky diode PPS1060 TO-277B 60 V
