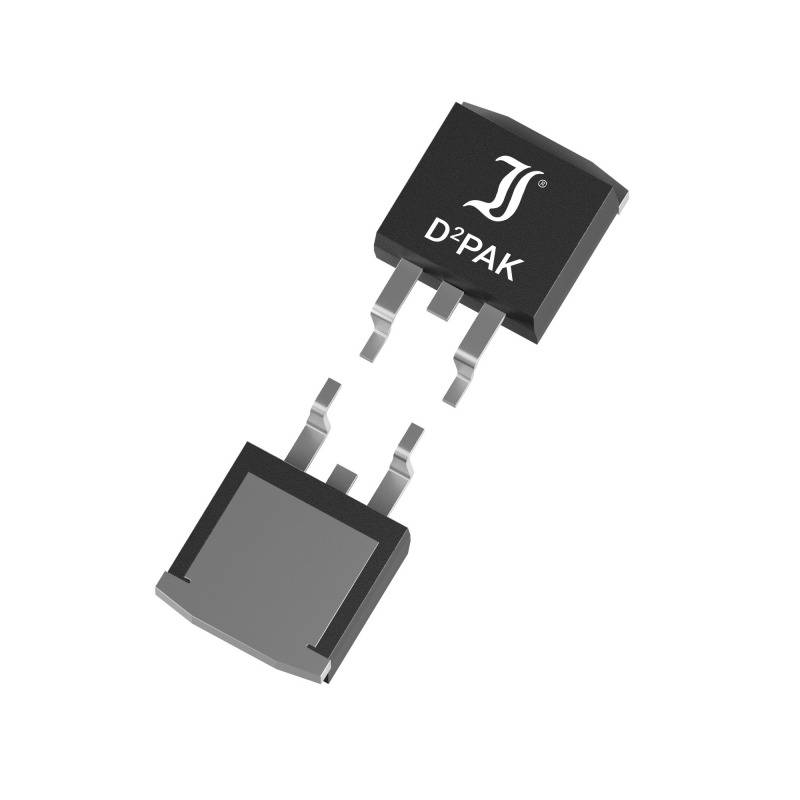

A three-legged black electronic component with 'D²PAK' marking, used for mounting on printed circuit boards.

Image similar

A three-legged black electronic component with 'D²PAK' marking, used for mounting on printed circuit boards.

Image similar

Enclosure

TO 263AB

Reverse voltage U(R)

45 V

Forward current I(F)

15 A

Forward voltage U(F)

0.51 V

Mounting type

Surface-mount

Datasheet (PDF)

English

Diotec

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 0.44547 / piece)

€

Report legal concerns

Technical specifications

Type: SK1545YD2-3G

Enclosure: TO 263AB

Manufacturer: Diotec

Reverse voltage U(R): 45 V

Forward current I(F): 15 A

Reverse leakage current I(r): 200 µA

Peak forward surge current I(FSM): 135 A

Forward voltage U(F): 0.51 V

Diode capacitance C(D): 530 pF

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

Content: 1 pc(s)

Product type: Schottky diode

Documents & Downloads

Datasheet

English

Datasheet 2810637 Diotec Schottky diode SK1545YD2-3G TO 263AB 45 V
