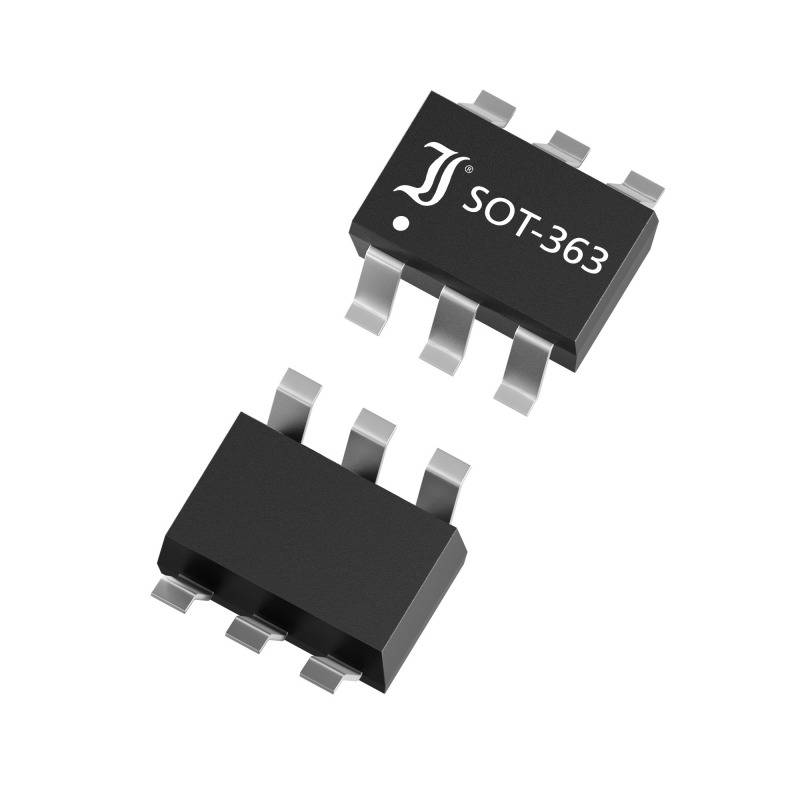

Image similar

Image similar

Enclosure

SOT 363

Forward current I(F)

0.15 A

Reverse voltage U(R)

75 V

Forward voltage U(F)

1.25 V

Mounting type

Surface-mount

Datasheet (PDF)

English

Diotec

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 750

Total (€ 0.05112 / piece)

€

Report legal concerns

Technical specifications

Type SMDSOT-363 housingPeriodic Peak Reverse Voltage - VRRM 75 VContinuous current - IFAV 0.20 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 4 nsSurge current - IFSM 1.00 AForward voltage - VF 1.25 VIF 0.15 AReverse current - IR 1,000 µAVR 75 VLock layer capacity - CJ: PFVR V

Type: BAS16DW-AQ

Enclosure: SOT 363

Manufacturer: Diotec

Forward current I(F): 0.15 A

Reverse voltage U(R): 75 V

Forward voltage U(F): 1.25 V

Reverse leakage current I(r): 1 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 1 A

Reverse recovery time T(rr): 4 ns

RoHS-compliant: Yes

Product type: Small-signal diode

Documents & Downloads

Datasheet

English

Datasheet 2807265 Diotec Small-signal diode BAS16DW-AQ SOT 363 75 V 0.15 A
