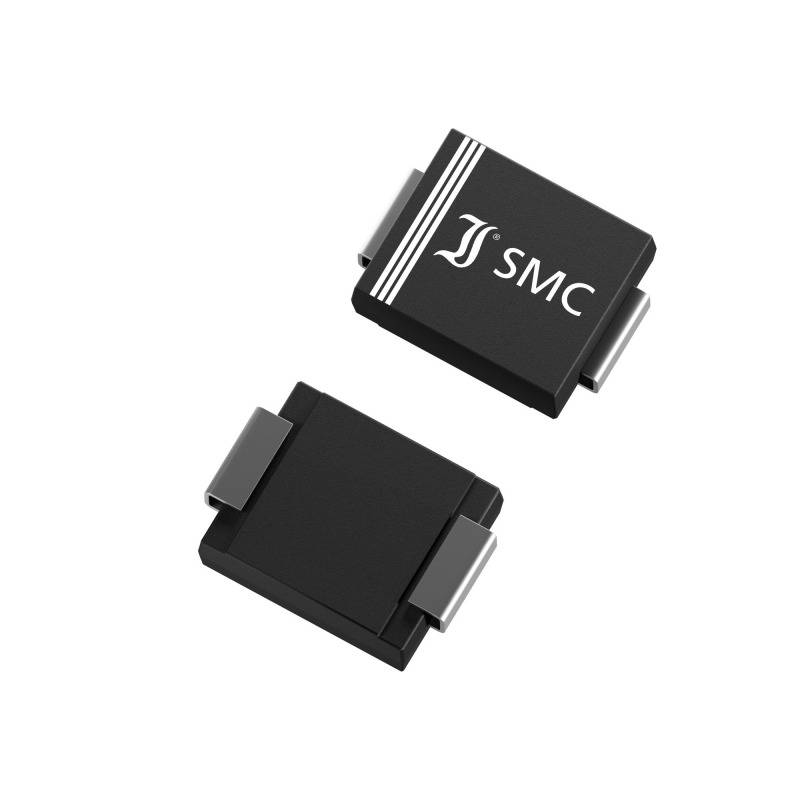

Two black, rectangular electronic components with silver connectors, one marked with 'SMC'.

Image similar

Two black, rectangular electronic components with silver connectors, one marked with 'SMC'.

Image similar

Enclosure

DO 214AB

Reverse voltage U(R)

85 V

Mounting type

Surface-mount

Product type

TVS diode

Type

5.0SMCJ85A

Datasheet (PDF)

English

Diotec

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 30

Total (€ 0.53903 / piece)

€

Report legal concerns

Technical specifications

Type SMDHOUSING DO-214AB/SMCTermination of voltage - VBRmin 94.40 VVBRmax 104.00 VIt 1 mAPulse power loss - PPPM 5000 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 85.0 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 137.00 VIPPM 36.50 ALock layer capacity - CJ: PFVR V

Type: 5.0SMCJ85A

Enclosure: DO 214AB

Manufacturer: Diotec

Reverse voltage U(R): 85 V

Breakdown voltage U(BR): 104 V

Mounting type: Surface-mount

RoHS-compliant: Yes

Product type: TVS diode

Documents & Downloads

Datasheet

English

Datasheet 2807040 Diotec TVS diode 5.0SMCJ85A DO 214AB 104 V
