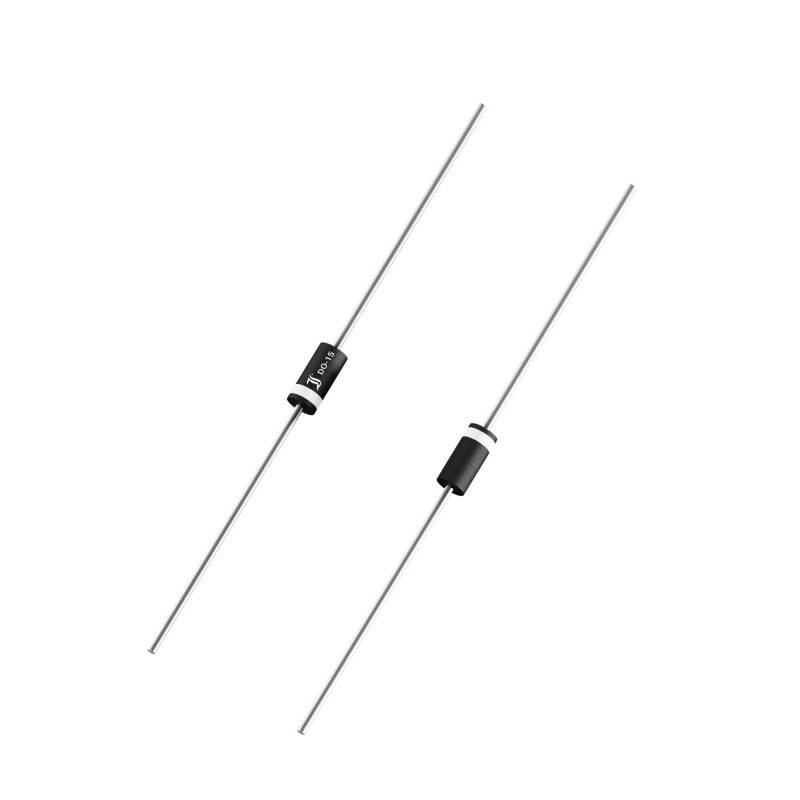

Two diodes with black casings and metallic connecting wires on a white background.

Image similar

Two diodes with black casings and metallic connecting wires on a white background.

Image similar

Enclosure

DO 15

Reverse voltage U(R)

25.6 V

Mounting type

Through-hole mounting

Product type

TVS diode

Type

BZW04-26

Datasheet (PDF)

English

Diotec

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 200

Total (€ 0.11845 / piece)

€

Report legal concerns

Technical specifications

Type AxialDO-15 housingTermination of voltage - VBRmin 28.50 VVBRmax 31.50 VIt 1 mAPulse power loss - PPPM 400 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 25.6 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 41.50 VIPPM 9.60 ALock layer capacity - CJ: PFVR V

Type: BZW04-26

Enclosure: DO 15

Manufacturer: Diotec

Reverse voltage U(R): 25.6 V

Breakdown voltage U(BR): 31.50 V

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Product type: TVS diode

Documents & Downloads

Datasheet

English

Datasheet 2807433 Diotec TVS diode BZW04-26 DO 15 31.50 V
