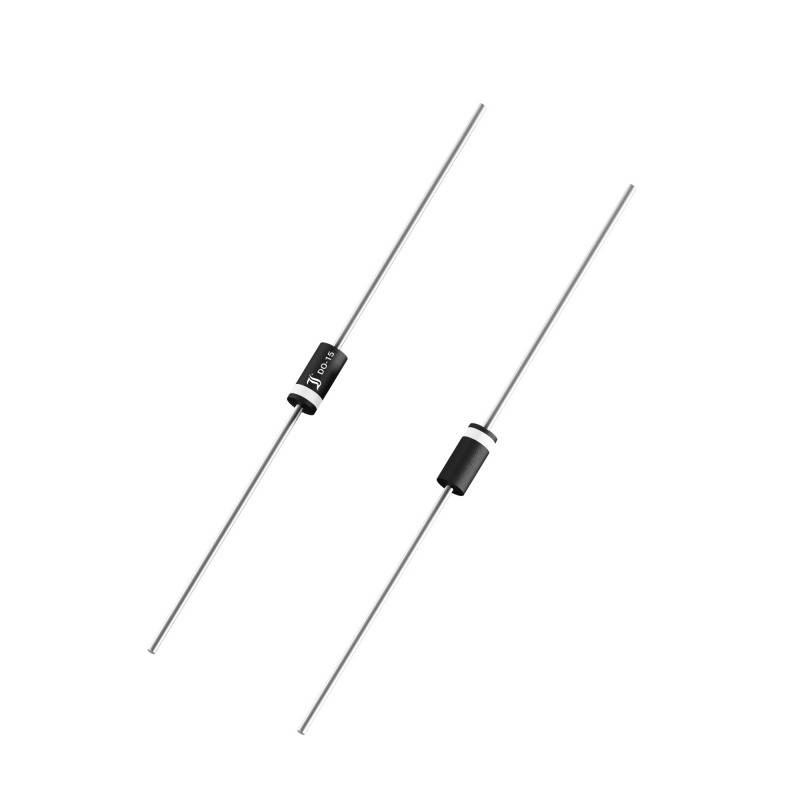

Two electronic diodes with black casings and silver terminals. They are depicted in different orientations.

Image similar

Two electronic diodes with black casings and silver terminals. They are depicted in different orientations.

Image similar

Enclosure

DO 15

Reverse voltage U(R)

28.2 V

Mounting type

Through-hole mounting

Product type

TVS diode

Type

BZW04-28

Datasheet (PDF)

English

Diotec

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 200

Total (€ 0.1249 / piece)

€

Report legal concerns

Technical specifications

Type AxialDO-15 housingTermination of voltage - VBRmin 31.40 VVBRmax 34.70 VIt 1 mAPulse power loss - PPPM 400 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 28.2 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 45.70 VIPPM 8.80 ALock layer capacity - CJ: PFVR V

Type: BZW04-28

Enclosure: DO 15

Manufacturer: Diotec

Reverse voltage U(R): 28.2 V

Breakdown voltage U(BR): 34.70 V

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Product type: TVS diode

Documents & Downloads

Datasheet

English

Datasheet 2807438 Diotec TVS diode BZW04-28 DO 15 34.70 V
