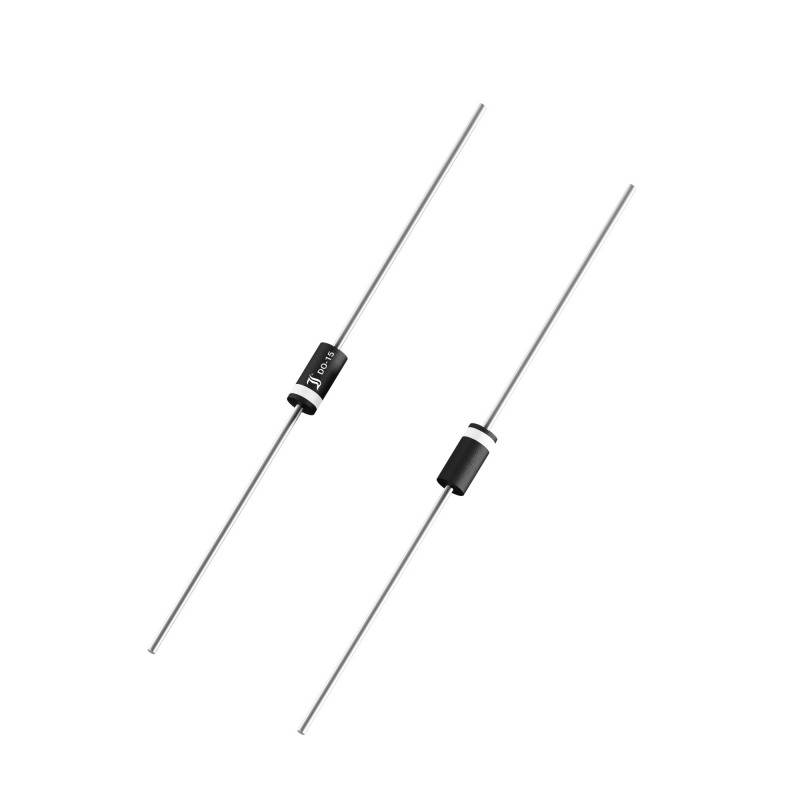

Two black cylindrical diodes with long connecting wires on a white background, each with a distinct marking.

Image similar

Two black cylindrical diodes with long connecting wires on a white background, each with a distinct marking.

Image similar

Enclosure

DO 15

Reverse voltage U(R)

70.1 V

Mounting type

Through-hole mounting

Product type

TVS diode

Type

BZW04-70

Datasheet (PDF)

English

Diotec

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 200

Total (€ 0.1249 / piece)

€

Report legal concerns

Technical specifications

Type AxialDO-15 housingTermination of voltage - VBRmin 77.90 VVBRmax 86.10 VIt 1 mAPulse power loss - PPPM 400 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 70.1 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 113.00 VIPPM 3.50 ALock layer capacity - CJ: PFVR V

Type: BZW04-70

Enclosure: DO 15

Manufacturer: Diotec

Reverse voltage U(R): 70.1 V

Breakdown voltage U(BR): 86.10 V

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Product type: TVS diode

Documents & Downloads

Datasheet

English

Datasheet 2807475 Diotec TVS diode BZW04-70 DO 15 86.10 V
