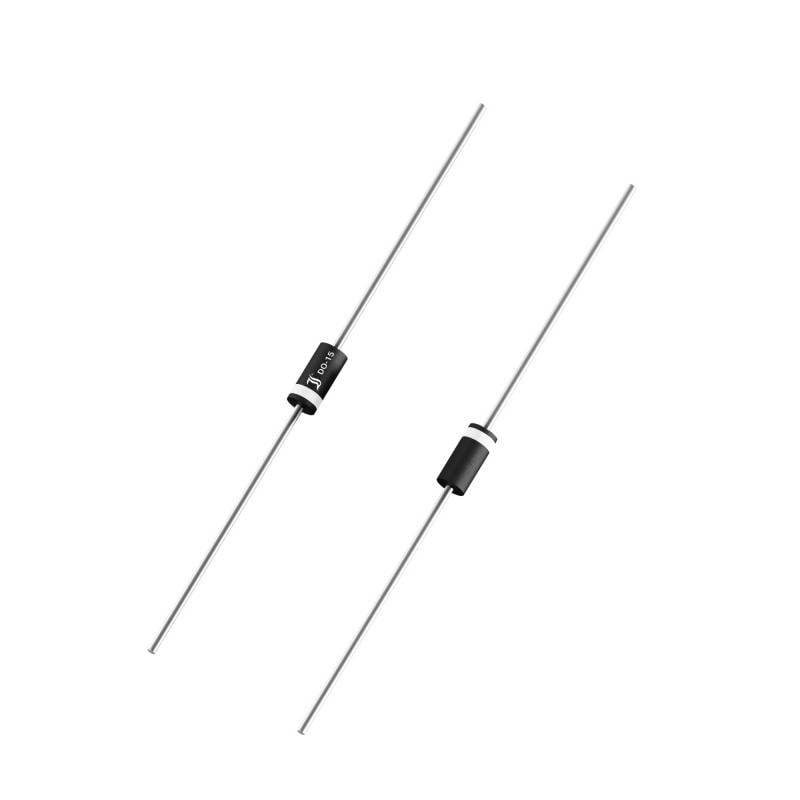

Two silicon diodes with black casings and silver-coloured connections. Diodes are depicted in opposite orientations.

Image similar

Two silicon diodes with black casings and silver-coloured connections. Diodes are depicted in opposite orientations.

Image similar

Enclosure

DO 15

Reverse voltage U(R)

13.6 V

Mounting type

Through-hole mounting

Product type

TVS diode

Type

BZW06-14B

Datasheet (PDF)

English

Diotec

2668 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 15

Total (€ 0.12103 / piece)

€

Report legal concerns

Technical specifications

Type AxialDO-15 housingTermination of voltage - VBRmin 15.20 VVBRmax 16.80 VIt 1 mAPulse power loss - PPPM 600 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 13.6 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 22.50 VIPPM 27.00 ALock layer capacity - CJ: PFVR V

Type: BZW06-14B

Enclosure: DO 15

Manufacturer: Diotec

Reverse voltage U(R): 13.6 V

Breakdown voltage U(BR): 16.80 V

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Product type: TVS diode

Documents & Downloads

Datasheet

English

Datasheet 2807514 Diotec TVS diode BZW06-14B DO 15 16.80 V
