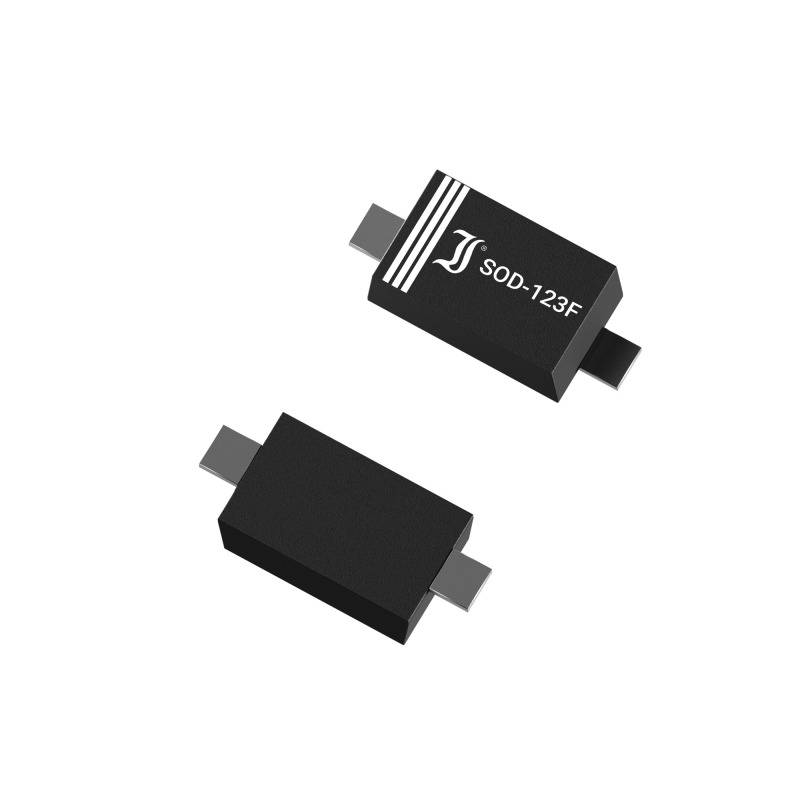

Image similar
Image similar
Diotec Zener diode MM1Z4702-AQ Enclosure type (semiconductors) SOD 123F Zener voltage 15 V Power (max) P(TOT) 0.5 W Reve
Part number:
Item no:
Z voltage U(Z)
15 V
Power (max) P(TOT)
0.5 W
Enclosure
SOD 123F
Mounting type
Surface-mount
Reverse voltage U(R)
11 V
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
750
-
€ 0.03631
2250
9% = € 0.00
€ 0.03300
3750
13% = € 0.00
€ 0.03168
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 750
Total (€ 0.03631 / piece)
€
Technical specifications
- Type SMDSOD 123F casingZener voltage - Vzmin 14.25 VVZnom 15.00 VVzmax 15.75 VIze test 0.05 mAPower loss - Ptot 0,500 W.Junction temperature - Tjmax 150 °CReverse current - IR 0,050 µAVR 11 VInherent differential resistance - rzj: ΩLock layer capacity - CJ: PFVR V
- Type
MM1Z4702-AQ
- Manufacturer
Diotec
- Z voltage U(Z)
15 V
- Power (max) P(TOT)
0.5 W
- Operating temperature (max.)
150 °C
- Uz (max.)
15.75 V
- Uz(min.)
14.25 V
- Enclosure
SOD 123F
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Reverse leakage current I(r)
050 µA
- Reverse voltage U(R)
11 V
- Product type
Zener diode
