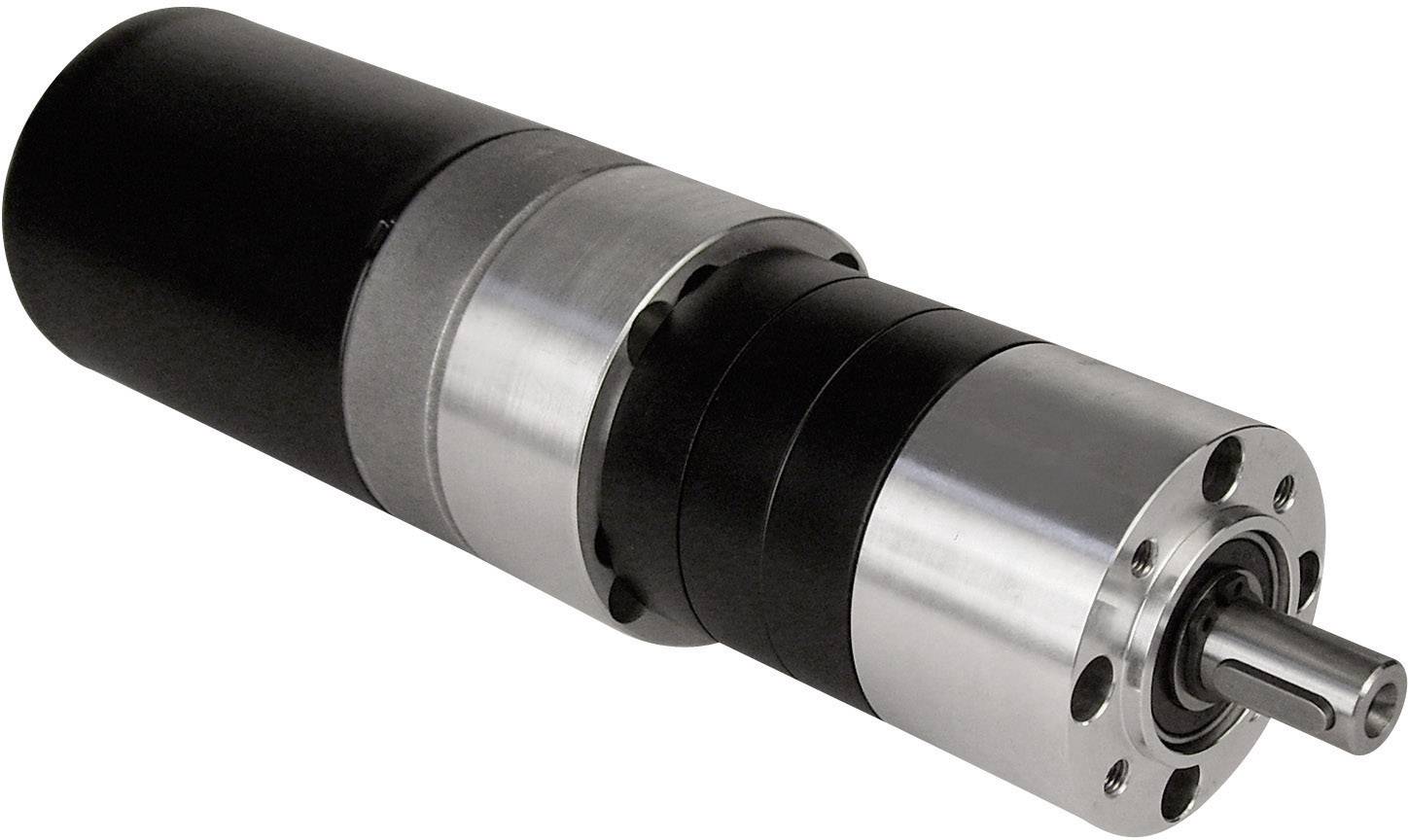

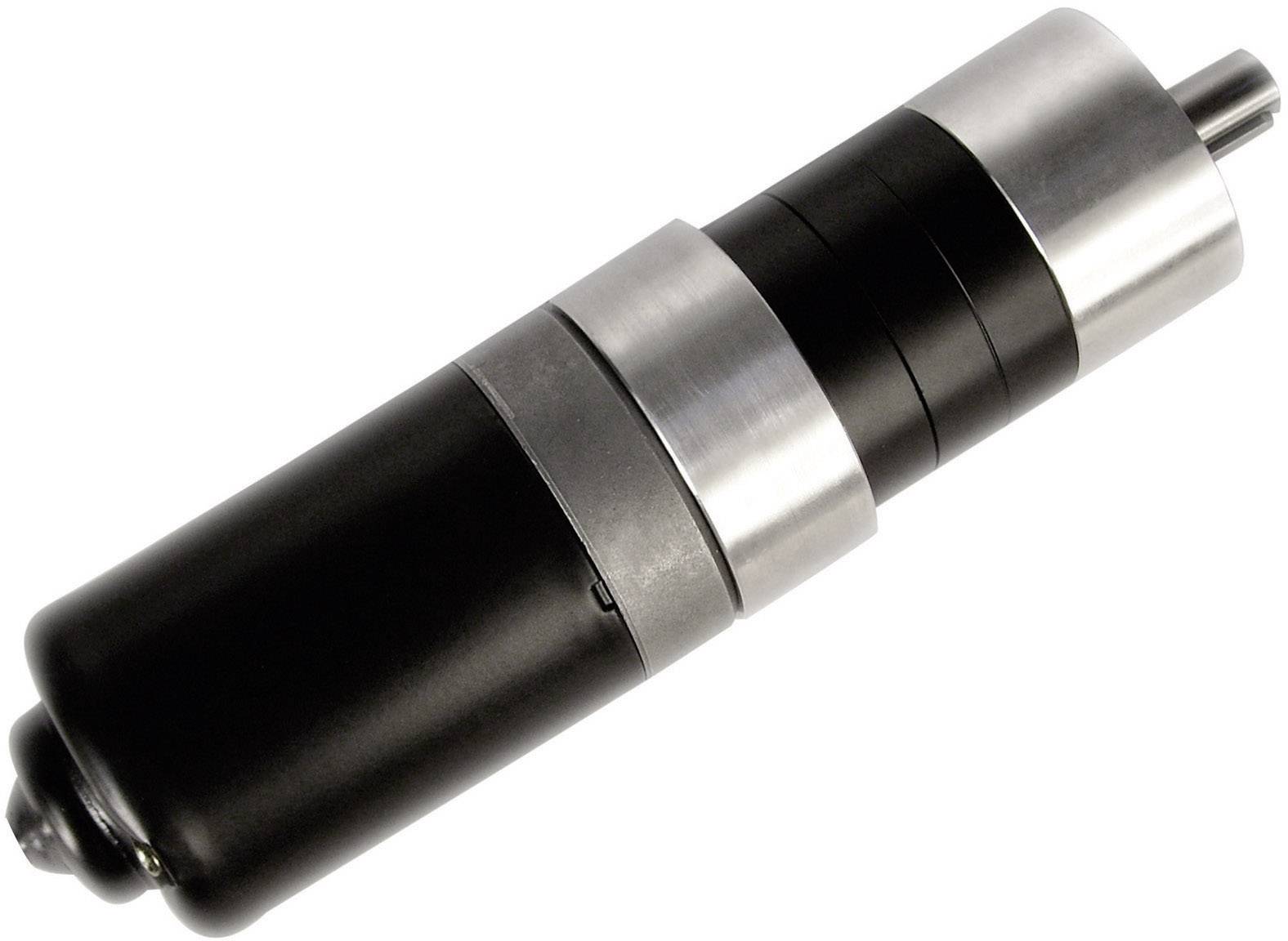

DOGA DC gearmotor DO16290033B00/4135 DO16290033B00/4135 24 V DC 4 A 0.8 Nm 750 U/min Shaft diameter: 12 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 390.76 / piece)
€
Technical specifications
- Length of connection cable 250 mm
- Type
DO16290033B00/4135
- Nominal voltage
24 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Nominal RPM
750 U/min
- Shaft design
With key 3 mm
- Manufacturer part #
DO16290033B00/4135
- Type
Planet gear motor
- Shaft Ø
12 mm
- Nominal torque
0.8 Nm
- Gear reduction (details)
4:1
- Nominal RPM
750 U/min
- Nominal voltage (details)
24 V DC
- Product type
DC gearmotor
Documents & Downloads
Datasheet
Datasheet 196830 DOGA DC gearmotor DO16290033B00/4135 DO16290033B00/4135 24 V DC 4 A 0.8 Nm 750 U/min Shaft diameter: 12 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 196830 DOGA DC gearmotor DO16290033B00/4135 DO16290033B00/4135 24 V DC 4 A 0.8 Nm 750 U/min Shaft diameter: 12 mm 1 pc(s)
Description
This planetary gear motors are available in combination with different ratios with 1-, 2-, and 3-stage planetary gear in metal design for high requirements with a long service life. With this new product line offers a wide range in the area. DOGA The motor with mounted planetary gearbox has a high reliability in a compact size. The new engine/gearbox combination is a low-noise use granted with a correspondingly improved efficiency compared to previous worm gear engines. Thus, the previously strong use of DC and DC-worm gear engines in the industrial sector with the combination planetary gear according to be removed. Through the high-quality combinations can be easily mastered the various applications and high load peaks.
