DSG Canusa 8610254702 Heatshrink w/o adhesive Grey 25.40 mm 12.70 mm Shrinkage:2:1 3 m
EAN:
Part number:
Item no:
Nominal inside diameter (pre-shrinkage)
25.40 mm
Nominal diameter (post-shrinkage)
12.70 mm
Heatshrink features
Thin-walled
Flame-retardant
Content
3 m
Product type
Heatshrink w/o adhesive
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 5.60
€ 16.80
3
1 M = € 5.32
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 5.60)
€
Highlights & Details
DSG Canusa 8610254702 Heatshrink w/o adhesive Grey 25.40 mm 12.70 mm Shrinkage:2:1 3 m
- Halogen-free
Technical specifications
- Dielectric strength 20 KV/mm min. according to VDE 0303 Part 2
- Elongation at break 500% min according to IEC 60684
- Tensile strength 17 MPa to IEC 60684-2
- Nominal inside diameter (pre-shrinkage)
25.40 mm
- Nominal diameter (post-shrinkage)
12.70 mm
- Factory colour
Grey
- Shrinkage
2:1
- Heatshrink features
Thin-walled
Flame-retardant
- Content
3 m
- Shrink temperature (min.)
+110 °C
- Min. temperature
-55 °C
- Max. temperature
+125 °C
- Manufacturer part #
8610254702
- Length
3 m
- Halogen-free
No
- Suitable for
Heatshrink
- Type
DERAY-Box
- Certification
Flammability according to FMVSS302
- Shrink temperature
+95 - +200 °C
- Wall thickness (post-shrinkage)
0.90 mm
- Temperature range
-55 - +85 °C
- RoHS-compliant
Yes
- Standards
Flammability according to FMVSS302
- Product type
Heatshrink w/o adhesive
Documents & Downloads
Datasheet
Datasheet 1575975 DSG Canusa 8610254702 Heatshrink w/o adhesive Grey 25.40 mm 12.70 mm Shrinkage:2:1 3 m
User & Safety Instructions
User & Safety Instructions 1575975 DSG Canusa 8610254702 Heatshrink w/o adhesive Grey 25.40 mm 12.70 mm Shrinkage:2:1 3 m
Description

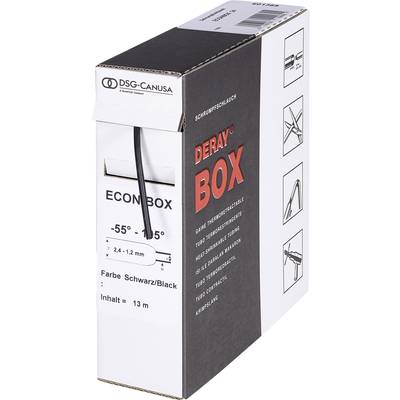

DERAY® - ECONBOX heat-shrink tubing in a practical roller box. Optimum for use in industry and workshops thanks to clear storage. Used in electrical installations and electronics as cable insulation, cable identification, cable ties, corrosion protection, kink protection and strain relief.
