e-ast Inverter CLS 600-12 600 W 12 V DC - 230 V AC
EAN:
Part number:
Item no:
16 Piece(s)
Sales and shipping:
Number
Total (€ 109.24 / piece)
€
Highlights & Details

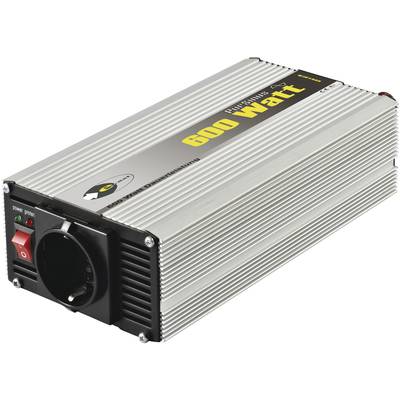

e-ast Inverter CLS 600-12 600 W 12 V DC - 230 V AC
- Produces pure sine wave AC power to run regular mains appliances
- 600W continuous output, 1200W peak output
- Protection against deep discharge, overvoltage, overload, short circuit and overheating
Technical specifications
- Input voltage
12Vdc (11–15V)
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
600 W
- Input voltage
12 V DC
- Inputs
Screw terminals
- Output
PG socket
- Nominal load efficiency
85 %
- Outlets
1
- Output frequency
50 Hz
- Permanent current
58,8 A
- Input current (max.)
60 A
- Remote control
No
- Weight
1.6 kg
- Cooling method
Fan
- Width
155 mm
- Height
65 mm
- Length
250 mm
- Peak output power
1200 W
- Type
CLS 600-12
- Type
Pure Sine Wave
600 W
- Power consumption
706 W
- Signal output type
Sine
- Output voltage
230 V AC
- Cooling
Fans
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 514948 e-ast Inverter CLS 600-12 600 W 12 V DC - 230 V AC
Information
Information 514948 e-ast Inverter CLS 600-12 600 W 12 V DC - 230 V AC
Description
The CLS 600-12 inverter from e-ast's Classic Power Sinus series of pure sine wave inverters produces a pure sine wave AC voltage that is suitable for powering regular 230V-240V mains appliances up to 600W from a 12Vdc (11–15V) input, such as a solar battery or a vehicle's cigarette lighter output. Connection cables with cigarette lighter end and alligator clips for batteries are provided with the inverter. The CLS 600-12 can achieve a 1200W peak output for 0.3-0.5 secs.
To avoid damaging batteries through deep discharge, the CLS 600-12 inverter has a protective function that cuts its output when the input voltage drops below its lower voltage range.
To avoid damaging batteries through deep discharge, the CLS 600-12 inverter has a protective function that cuts its output when the input voltage drops below its lower voltage range.
Features
- Low voltage shutdown to protect the battery
- High-voltage shutdown
- Overload-proof and short circuit-proof with automatic restart.
Scope of delivery
- Pure sine wave inverter
- Cigarette lighter socket cable
- Alligator clip battery cable
- User manual.
Hints
When connecting via the cigarette lighter is the performance of the devices in question to 150W is limited.
