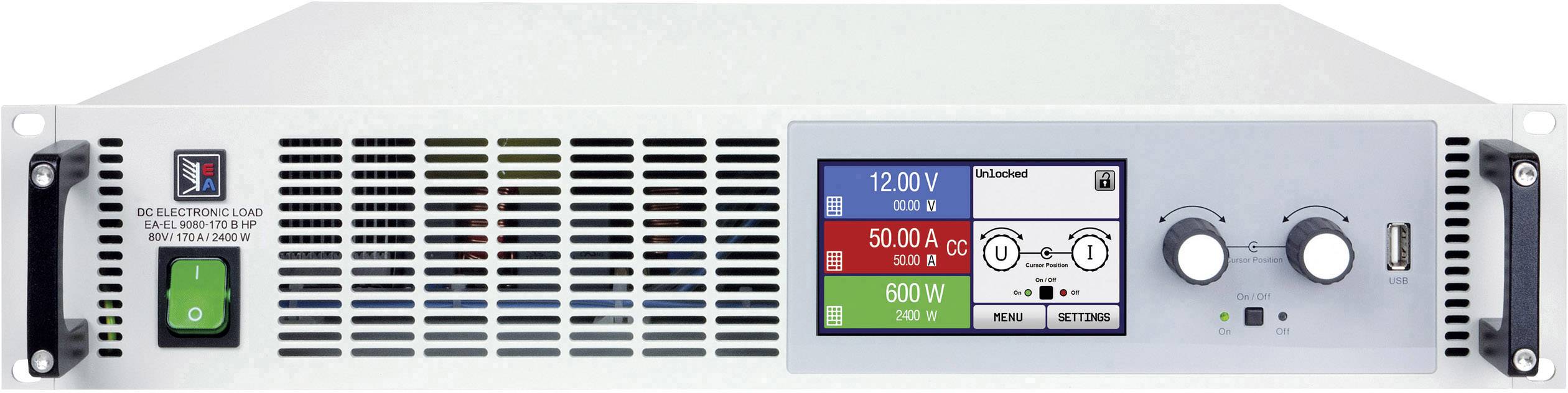

EA Elektro Automatik EA-EL 9080-170 B HP 2U Electrical load 80 V DC 170 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Total (€ 4,772.27 / piece)
€
Highlights & Details
Programmable electronic DC load EA-EL 9080-170 B HP 2U
- Powerful FPGA (Field Programmable Gate Array Lattice ECP 3 LFE 17 EA), allows the control of complex setpoint specifications up to 10x faster command processing times than before. Bandwidth for U, I, P and R measurements = 1 MHz, for all signals at the same time.
- High-insulated mounting, thus much more insensitive in operation (high immunity, high operating safety)
- Fitted with noise suppression according to EN 61000-6-3, EN55022 curve B (interference emission suitable for residential, business and trade as well as for small businesses)
- Active damping of the electronic DC input circuit, this reduces the vibration inclination with long cable lengths or unknown impedances of the supplying source
- Thermal management, the devices switch with thermal overload never hard, but to reduce the further and further, if necessary. up to 0 W.
- Input filter self-protection and prevents any possible overloading by applying a DC voltage with high-frequency AC share.
- By default, 2-way interface: analogue 0-5 V/0-10V and USB (all galvanically separated) as well as intelligent slot for yourself retrofitting of many other digital interfaces, such as CAN, CANopen, Ethernet, Devicenet, Modbus, Profibus/net, and many more.
- Share bus capability with the power supply series PS and PSI 9000 2U and 3U (to configure a source lower/2Q operation)
- TFT touch display with 64,000 colors, integrated comfortable function generator with pre-defined curves (sine, triangle, square, trapezium, DIN 40838/CAR, arbitrary, ramp, IU/IU) as well as alarm manager
- Total function in the master-slave parallel operation, uniform load distribution
- After calibration function: Users may, at the service/repair differential values themselves measure and correction values in the menu to enter "ex works" to restore accuracy
- High resolution with up to 16-bit (very fine adjustment steps for control and rear reading)
- Voltage Accuracy 0.1% of nominal value
- Professional control software for up to 20 devices (license)
- Safety according to IEC/EN 61010
Technical specifications
- Type
EA-EL 9080-170 B HP 2U
- Load input current (max.)
170 A
- Dim
(W x H x D) 482 x 88 x 540 mm
- Weight
13 kg
- Depth
540 mm
- Height
88 mm
- Width
482 mm
Manufacturer's standards (no certificate)
- Load connection
Screw terminals (rear)
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- Min. load input current
0 A
- Max. input voltage
80 V DC
- Load input voltage (min.)
0 V DC
- Input voltage
230 V AC
- Product type
Electrical load
Documents & Downloads
Datasheet
Datasheet 1561278 EA Elektro Automatik EA-EL 9080-170 B HP 2U Electrical load 80 V DC 170 A
User & Safety Instructions
User & Safety Instructions 1561278 EA Elektro Automatik EA-EL 9080-170 B HP 2U Electrical load 80 V DC 170 A
Description
These conventional controllable and programmable electronic loads in 19" 2 U design, with a powerful micro-controller (FPGA) with 16 bit resolution. The DC input area is extremely flexible and allows the use at high input voltages or, alternatively, high input current in the framework of the respective nominal power. For a comfortable use, this series have a high-resolution, intuitive TFT touch panel with built-in function generator and pre-defined curve forms (e.g. Sine, trapezoidal, square, ramp, arbitrary) as well as alarm manager, memory and memory user profiles. The display resolution is 4 dig. In the range from 0 to 100% adjustable DC input parameters (U, I, P, R) have a high accuracy and stability, are very dynamic (current pulse of up to 30 µs) and free of ripple (FET-linear amplifier). For the remote-controlled operation, the devices as a standard isolated analog interface (0 - 5 V/0-10V) as well as via USB. On the back of the plug'n play slot can be further interface options such as CANopen, Ethernet, Profibus/net, RS232 or Modbus can be upgraded. This device series is an indispensable tool for the reproducibility of test results and is suitable for integration in professional automated test benches and to cascade for high load applications.
This text is machine translated.
This text is machine translated.
Features
- Controlled and programmable FPGA
- Electrically isolated analog interface 0-5 V/0-10V as well as with USB interface as standard
- Operating modes CV, CC, CP, CR, battery discharge,
- Integrated Function Manager with pre-defined curve shapes, memory functions, Alarm Manager, user profiles
- TFT touch panel and adjusting encoder (intuitive menu guide)
- Plug'n play digital interface slot (optional interfaces: Ethernet, CANopen, Profibus, etc.)
- Operator Software" EA-power-control" for automatic function sequences and data logging in csv format
- 19" 3HE for all performance classes up to 2.4 kW
- Real master-slave parallel operation with total function and can also be cascaded for the production of
- Hochlastastschranken.
Scope of delivery
- Plug for share bus
- Plug for remote sensing
- 2 x filler strips
- USB cable (1.8 m)
- 1 x set DC terminal cover
- USB stick with documentation and software
- Power cable;
