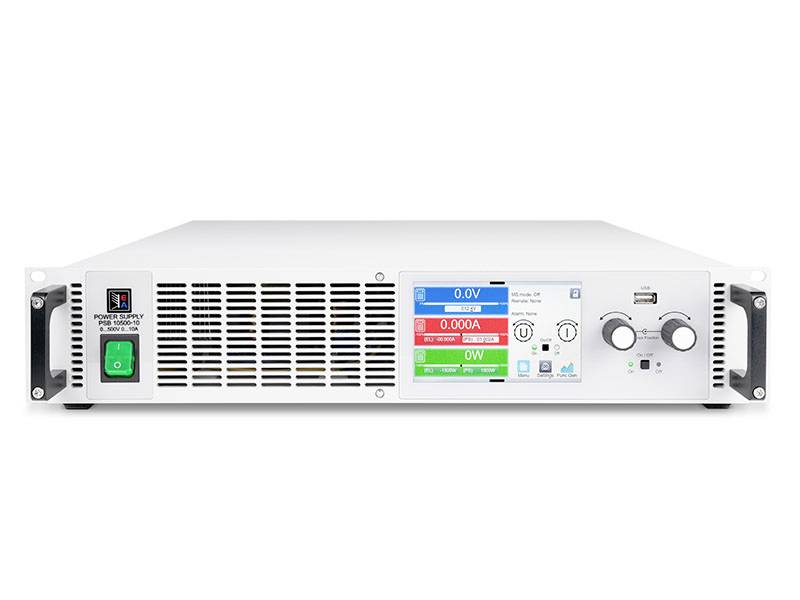

EA Elektro Automatik EA-PSB 11500-06 2U Bench PSU (adjustable voltage) 0 - 1500 V DC 0 - 6 A 3000 W USB , Ethernet, Anal
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EA Elektro Automatik EA-PSB 11500-06 2U Bench PSU (adjustable voltage) 0 - 1500 V DC 0 - 6 A 3000 W USB , Ethernet, Ana
- 0 - 1500 V DC / 0 - 6 A
- 3000 W
- USB , Ethernet, Analogue, USB host
Technical specifications
- Safety class 1Protection class: IP20Nominal resistance range 8 Ω - 6000 Ω
- Type
EA-PSB 11500-06 2U
3000 W
- Interfaces
USB
Ethernet
Analogue
USB host
- Dim
- Weight
12.7 kg
Manufacturer's standards (no certificate)
- Max. output current
6 A
- Output current (min.)
0 A
- Output voltage (max.)
1500 V DC
- Output voltage (min.)
0 V DC
- Max. temperature
+50 °C
- Min. temperature
0 °C
- Product type
Bench PSU (adjustable voltage)
Documents & Downloads
Datasheet
Datasheet 2757285 EA Elektro Automatik EA-PSB 11500-06 2U Bench PSU (adjustable voltage) 0 - 1500 V DC 0 - 6 A 3000 W USB , Ethernet, Anal
User & Safety Instructions
User & Safety Instructions 2757285 EA Elektro Automatik EA-PSB 11500-06 2U Bench PSU (adjustable voltage) 0 - 1500 V DC 0 - 6 A 3000 W USB , Ethernet, Anal
Description
EA Elektro-Automatik's PSB 10000 series bi-directional DC lab power supplies are two-quadrant devices that can perform both power and electronic load functions. In load mode, the DC power supplies operate regeneratively and feed back the energy with an efficiency of over 96% to the local electricity grid. The PSB 10000 series includes single-phase and three-phase devices that operate almost all the worldwide mains voltages via their wide input range. The DC-voltages and currents are based on applications, the spectrum ranges from 0 - 10 V to 0 - 2000 V as well as 0 - 6 A to 0 - 1000 A in one device.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Bi-directional power supplyPlug for remote sensorUSB cable (1.8m)1xSet terminal cover DC1x terminal cover sense1x USB stick with documentation and software1x cable binder for strain relief
