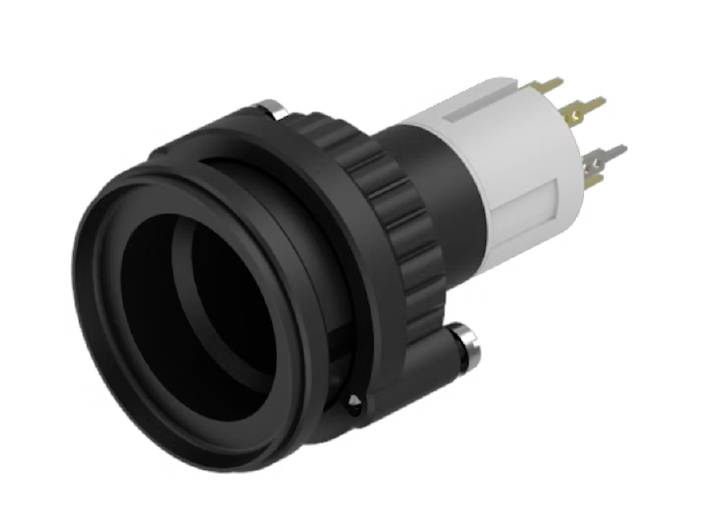

eao 14-431.036 Attachment 42 V AC, 42 V DC 100 mA IP67, Protection class II 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.71
3
4% = € 1.02
€ 22.69
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.71 / piece)
€
Only 1 Piece(s) available
Highlights & Details
Prefix, illuminated, 2 S, pulse, universal connector, 2 x 0.5 mm
- Mechanical life 5 MIO. Switching cycles
- Switching system: Low-level element
- Contact material: Gold
- Switching voltage and switching current 100 mA at 42 VAC/VDC
- IP-Front protection type IP67, according to DIN EN 60529
- Use temperature - 25 °C to + 55 °C, heat build-up is avoided when mounted in blocks
- This text is machine translated.
Technical specifications
- Contact material
Gold
- Switching voltage
42 V AC
42 V DC
- Switching current (max.)
100 mA
- Dielectric strength
3000 V AC
- Min. temperature
-25 °C
- Max. temperature
+55 °C
IP67
Protection class II
- Actuating force
3 N
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
14-431.036
- Product type
Attachment
Documents & Downloads
Datasheet
Datasheet 3152010 eao 14-431.036 Attachment 42 V AC, 42 V DC 100 mA IP67, Protection class II 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
