Buy Eaton 278555 FAZ-C6/1 Circuit breaker 6 A 230 V AC

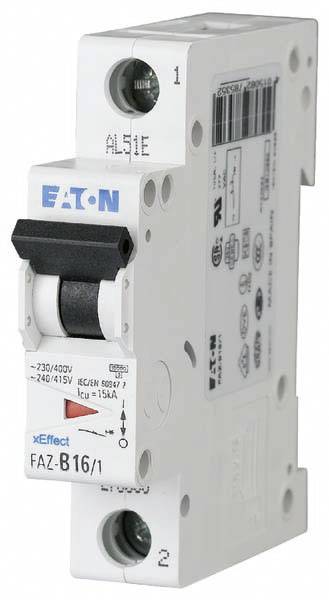

'Eaton circuit breaker, type FAZ-B16/1, 16 Amperes, suitable for overload and short-circuit protection in electrical systems.'

Image similar

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

6 A

RoHS-compliant

Yes

Datasheet (PDF)

3 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Number

Piece(s)

Total (€ 36.97 / piece)

€

Only 3 Piece(s) available

Report legal concerns

Technical specifications

Connectable conductor cross-section single-wired: 1 - 25 mm²
connectable conductor cross-section multi-wired: 1 - 25 mm²
Number of fused poles: 1
rated insulation voltage UI: 440 V
Width in division units: 1
mounting depth: 70.5 mm
Energy limitation class: 3
Frequency: 50 - 60 Hz
Protection class (IP): IP20
Overvoltage category: 3
Ambient temperature during operation: -25 °C - +75 °C
Pollution degree: 2
additional devices possible: Yes

Product type: Circuit breaker

Number of pins: 1

Release characteristics: C

RoHS-compliant: Yes

Nominal current - rounded value: 6 A

Nominal current: 6 A

Factory colour: Multicolour

Content: 1 pc(s)

Switch-off capacity: 15 kA

Nominal voltage: 230 V AC

Weight: 0

: AC

: 70.5 mm

: 6 A

: 230 V

: 50-60 Hz

: C

: 440 V

: 3

: 3

: 2

: 1

: FALSE

: 1.2 W

: IP20

: 1

: FALSE

: 1-25 mm²

: 1-25 mm²

: -25-75 °C

: FALSE

: TRUE

: 1

: 10 kA

: 10 kA

: 15 kA

: 15 kA

: 4 kV

Documents & Downloads

Datasheet

Datasheet 2306883 Eaton 278555 FAZ-C6/1 Circuit breaker 6 A 230 V AC

User & Safety Instructions

User & Safety Instructions 2306883 Eaton 278555 FAZ-C6/1 Circuit breaker 6 A 230 V AC

Eaton 278555 FAZ-C6/1 Circuit breaker 6 A 230 V AC
