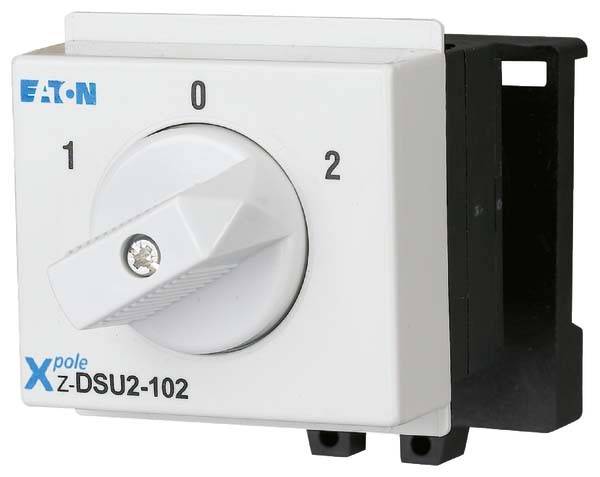

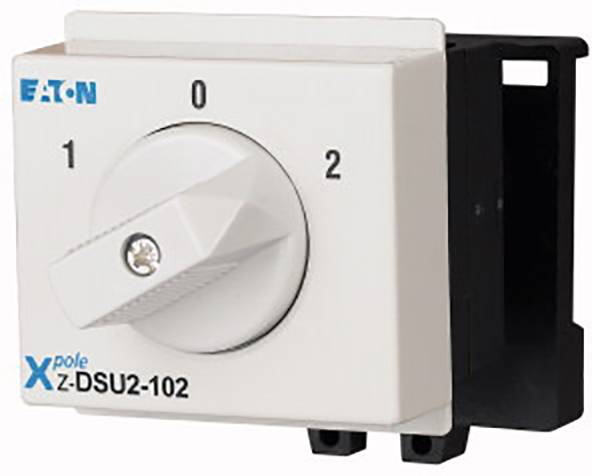

Eaton Z-DSU2-102 Rotary switch 20 A 440 V, 690 V White 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rotary switch
Operation type
Rotary switch
Mounting type
DIN rail
Switching voltage
440 V
690 V
Switching current (max.)
20 A
Datasheet (PDF)
1 Piece(s)
Sales and shipping:
Number
Total (€ 60.50 / piece)
€
Only 1 Piece(s) available
Technical specifications
- Terminal cross-section 1-2.5 mm² single or multi-wired / 0.75-2.5 mm² fine-wired
- Product type
Rotary switch
- Casing/button colour
White
- Operation type
Rotary switch
- Mounting type
DIN rail
- Switch position
1 x (On)/Off/(On)
- Print motif
1/0/2
- Number of pins
2
- Connection
Screw terminal
- Switching voltage
440 V
690 V
- Switching current (max.)
20 A
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Depth
60 mm
IP20
- Content
1 pc(s)
- Type
Z-DSU2-102
AC
Two-way switch
FALSE
60 mm
20 A
690 V
0 W
2
Other
10 kA
0 A
3
Other
Other
440
IP20
0
0
2
FALSE
Documents & Downloads
Datasheet
Datasheet 2622491 Eaton Z-DSU2-102 Rotary switch 20 A 440 V, 690 V White 1 pc(s)
Description
Rotary switch, 2P, UM, 1 - 0 - 2
This text is machine translated.
This text is machine translated.
