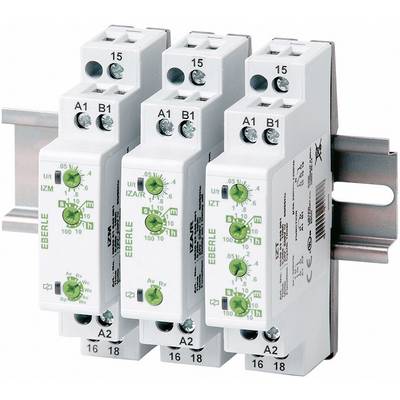

Eberle 0530 52 649 001 IZA/R TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 1 change-over
EAN:
Part number:
Item no:
Product type
TDR
Type
Multifunction
Functions
On-delay
Off-delay with auxiliary contact
Min. operating voltage
24 V DC
24 V AC
Max. operating voltage
240 V DC
240 V AC
Datasheet (PDF)
12 Piece(s)
Sales and shipping:
Number
Total (€ 55.45 / piece)
€
Technical specifications
- Control contact: parallel switched minimum load 1 VA/ 0.5 W, not potential-free
- Switch-on duration: 100%
- Insulation voltage: 240 V/AC
- Accuracy ± 0.5 %
- Frequency: 48-63 Hz
- Air / creepage distance (4kV), 2.3 mm
- Power consumption 3 VA (1.6 W)
- Type of housing: self-extinguishing plastic
- Product type
TDR
- Type
IZA/R
- Type
Multifunction
- Connection
Screw terminal
- Functions
On-delay
Off-delay with auxiliary contact
- Min. operating voltage
24 V DC
24 V AC
- Max. operating voltage
240 V DC
240 V AC
- Operating voltage
24, 24 - 240, 240 V DC, V AC
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
5 A
- Time range (min.)
0.05 s
- Time range (max.)
100 h
- Time range(s)
1 s
10 s
1 min
10 min
1 h
10 h
100 h
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Electrical lifespan
200000 cycles
- Durability
20 million switching cycles
- Width
17.5 mm
- Height
87 mm
- Depth
63 mm
- Dim
(W x H x D) 17.5 x 87 x 63 mm
- Content
1 pc(s)
- Frequency
48 - 63 Hz
Documents & Downloads
Datasheet
Datasheet 507676 Eberle 0530 52 649 001 IZA/R TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 1 change-over
User & Safety Instructions
User & Safety Instructions 507676 Eberle 0530 52 649 001 IZA/R TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 1 change-over
Description
Installation time relay for distributor installation onto 35 mm standard rail - Width 17.5 mm. Front lockable rotary switch for the functions and time range selection, which can be operated with a screwdriver. The switching state of the output relay (1 potential-free changeover) and the operating voltage (flashes during that Runingtime) ensure a constant control over the health status. The resilient control contact enables the switching of parallel loads, such as contactors, relays or indicator lights. The Offset connection terminals are supplied to each other with captive screws terminals. The universal operating voltage as well as the big time range from 50 ms - 100 h opens up a wide variety of applications at a time accuracy of ±0.5%.
