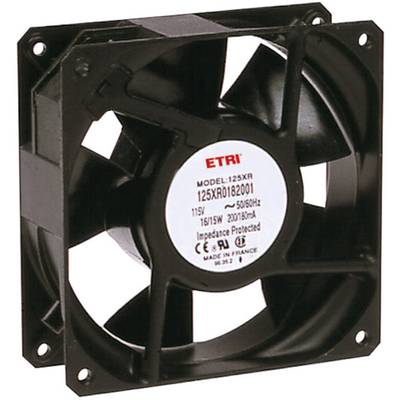

Ecofit 125XR0181000 Axial fan 240 V AC 2640 l/min (L x W x H) 119 x 119 x 38.9 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
240 V AC
Power
18 W
Air flow rate
2640 l/min
Length
119 mm
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€
Technical specifications
- Material (casing): die-cast zinc
- Material (rotor): plastic
- Fire behavior (plastic): UL94 V0
- Operating voltage range: 208 - 240 V/AC
- Product type
Axial fan
- Type
125XR0181000
- Nominal voltage
240 V AC
- Max. current consumption
125 mA
18 W
- Rotational speed
2500 U/min
- Noise emission (max.)
44 dBa
- Air flow rate
2640 l/min
(L10 at 40 °C) 80000 h
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
119 mm
- Width
119 mm
- Height
38.9 mm
- Dim

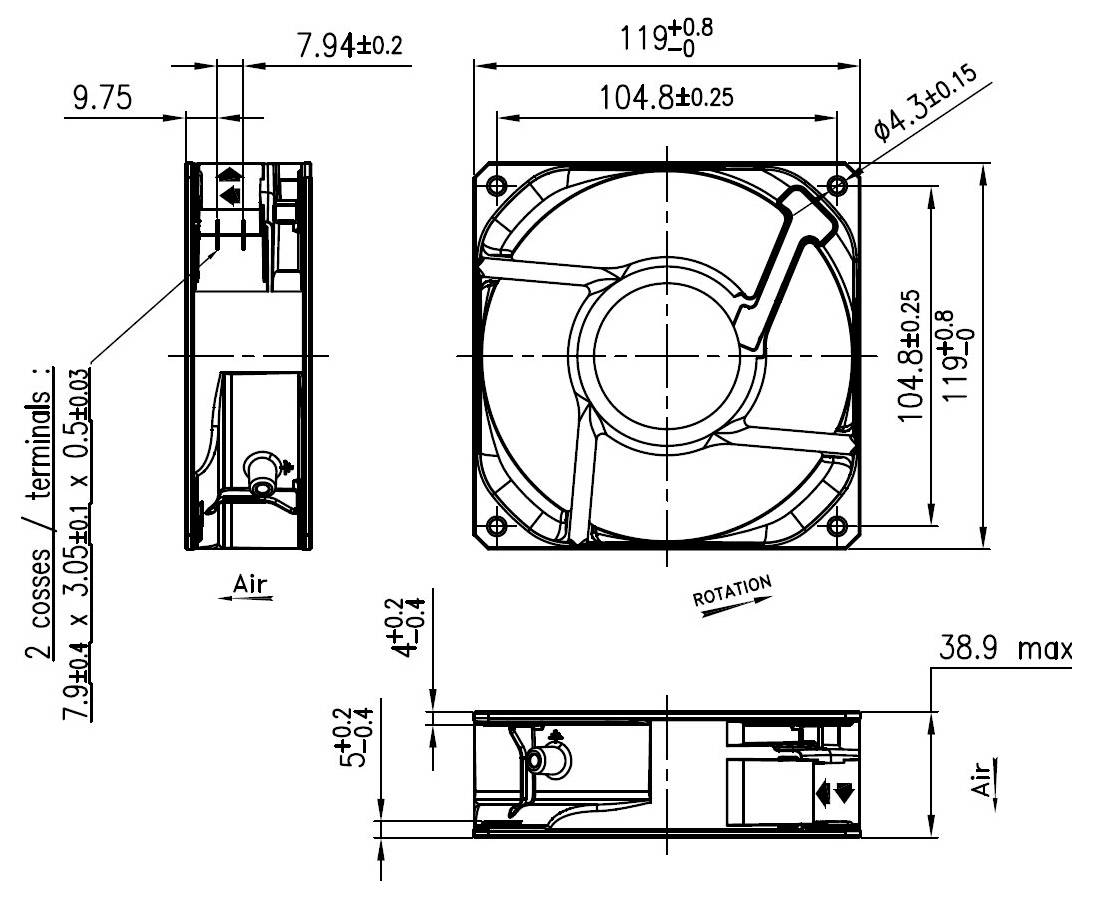

(L x W x H) 119 x 119 x 38.9 mm
Documents & Downloads
Datasheet
Datasheet 189607 Ecofit 125XR0181000 Axial fan 240 V AC 2640 l/min (L x W x H) 119 x 119 x 38.9 mm
User & Safety Instructions
User & Safety Instructions 189607 Ecofit 125XR0181000 Axial fan 240 V AC 2640 l/min (L x W x H) 119 x 119 x 38.9 mm
Description
Impedance protected, ball-bearing fan for industrial applications.
This text is machine translated.
This text is machine translated.
Features
- Connection terminal.
Hints
Approvals: UL, CSA. Indications at 50 Hz.
