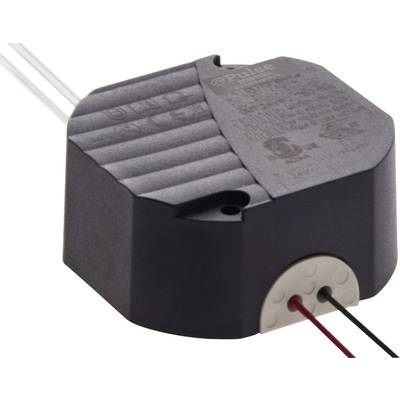

Black electronic transformer, hexagonal shape, with cable connections on one side.

Black electronic transformer, hexagonal shape, with cable connections on one side.

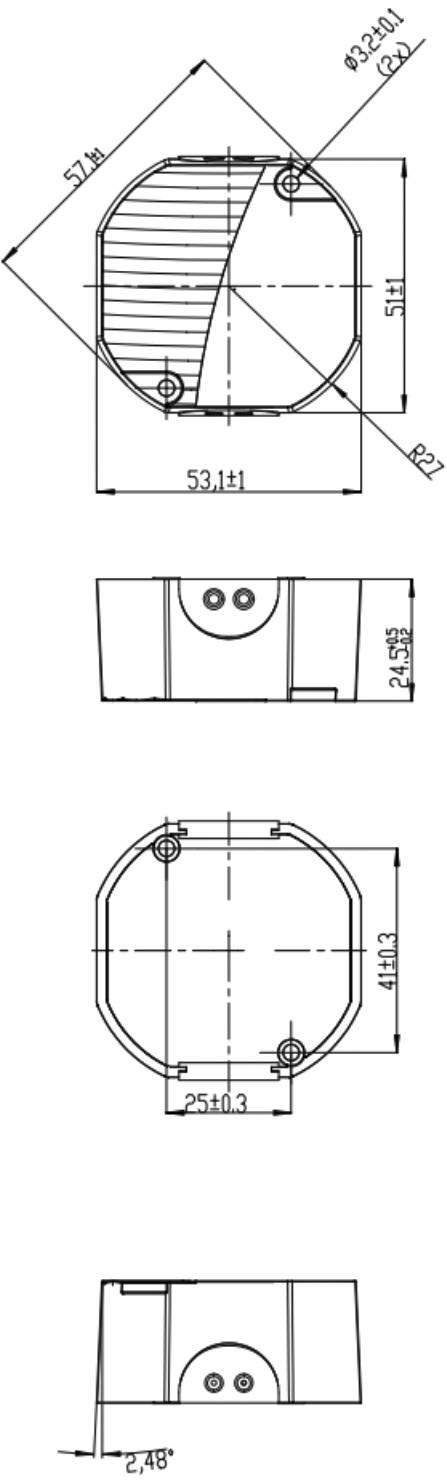

Technical drawing of a rectangular enclosure with rounded corners, dimensions and drill holes are shown in detail.

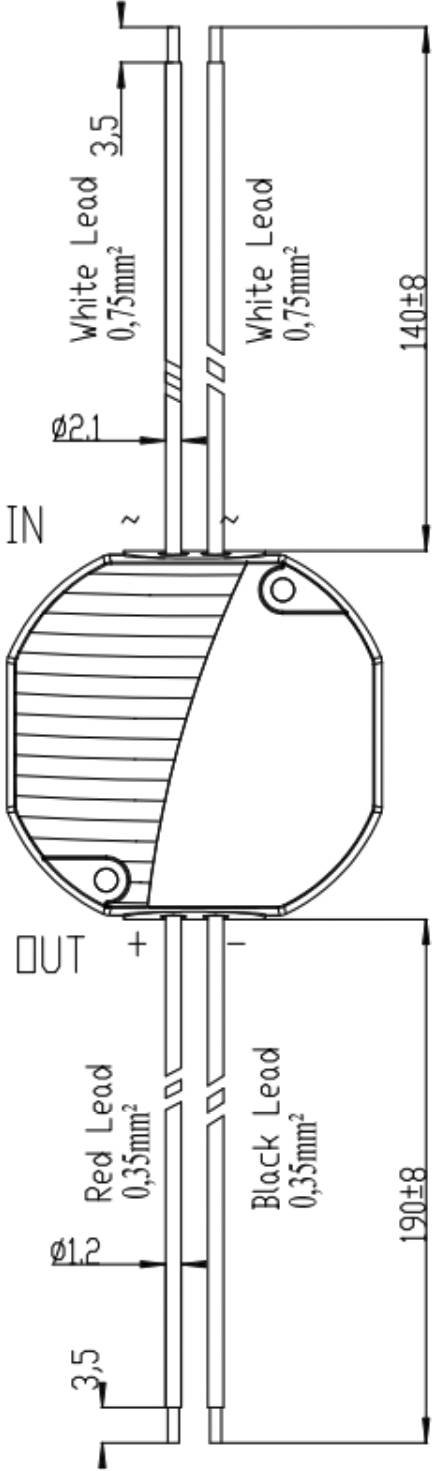

Electrical circuit diagram of a circular, two-pole connector with 'IN' and 'OUT' labels. White and black cable connections are specified.

1/3

Egston

Datasheet (PDF)

English

142 Piece(s) (Only while stocks last)

Sales and shipping:

Number

Piece(s)

Total (€ 36.97 / piece)

€

Report legal concerns

Highlights & Details

Output voltage (max.) 24 V DC
Max. output current 0.75 A
Power 18 W

Technical specifications

Efficiency: Efficiency mark Level VI.

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 0.75 A

Output current (max.) - rounded: 750 mA

Min. input voltage: 90 V AC

Dim: (Ø x H) 57 mm x 24.5 mm

Output voltage (max.): 24 V DC

Connection: Wire

: 18 W

Type: closed

Operating temperature (max.): +80 °C

Operating temperature (min.): -20 °C

Height: 24.5 mm

Type: N1hFSW3 18

(Ø): 57 mm

MTBF: 560.000 h

Documents & Downloads

Datasheet

English

Datasheet 2357650 Egston N1hFSW3 18 SMPSU 0.75 A 18 W 24 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2357650 Egston N1hFSW3 18 SMPSU 0.75 A 18 W 24 V DC 1 pc(s)

Description

The innovative power supply with a wide-range input of 90-264 V/AC and a stabilized output voltage in the power classes 18 W. The devices are suitable for installation in DIN-flush mounted sockets and furniture or for mounting on flat surfaces of unknown flammability. At a height of only 24.5 mm there is even room for the installation ot the consumer in the flush box.

Applications:
Audio/Video + IT/KT (EN 62368–1)
It/Commercial (EN 60950–1)
Home / smart home (EN 60335–1)
LED (EN 61347–2‑13)
Medical (EN 60601-1 2xMOPP)
