Buy Einhell TE-SM 2534 Dual Chop and mitre saw 250 mm 30 mm 1800 W

Einhell mitre saw with a red base, black mounting, and silver saw blade, suitable for precise wood cutting.

A person is sawing a wooden board with a mitre saw in a workshop. The workspace is well-organised with wooden materials in the background.

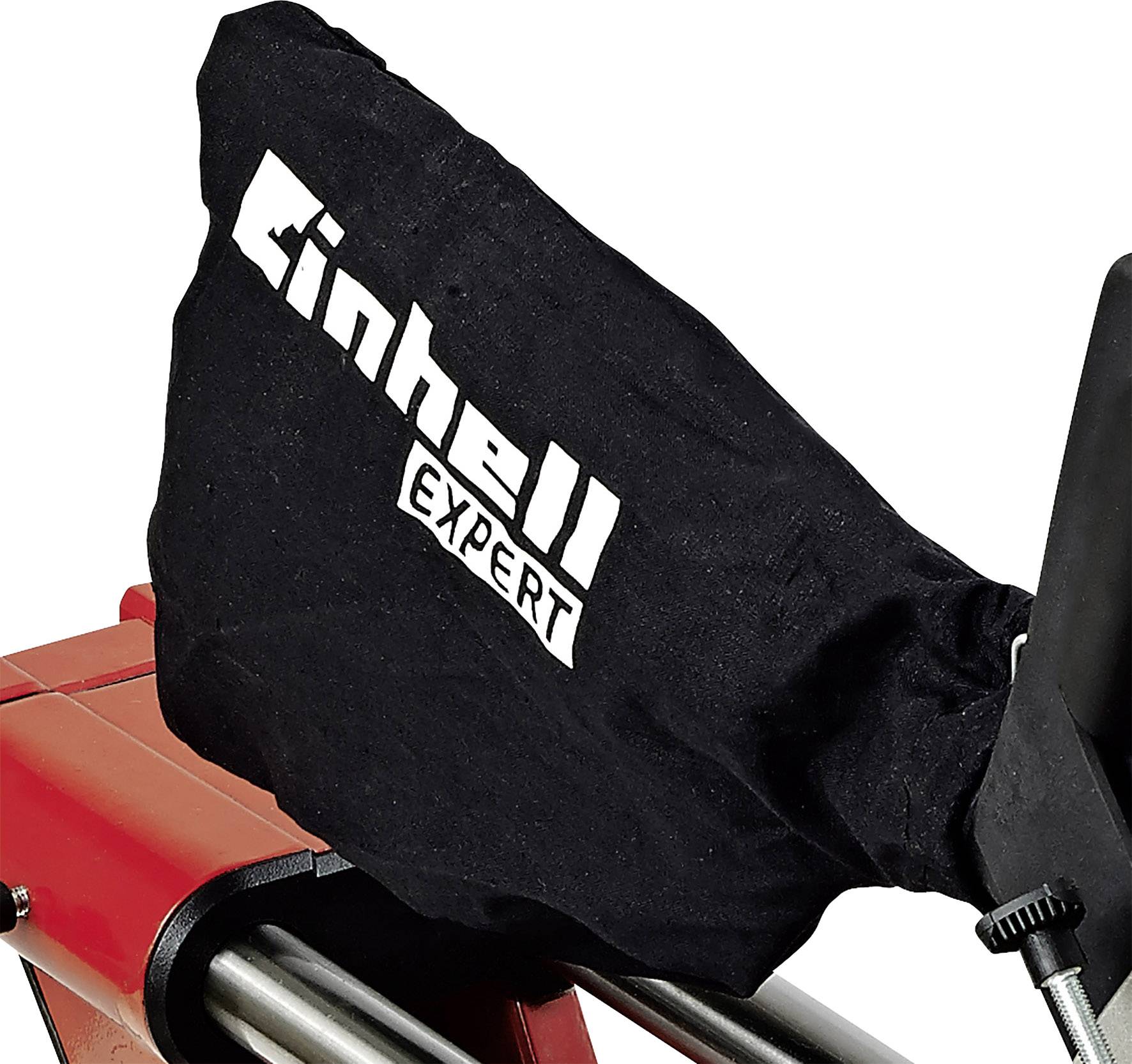

A red device with a black dust bag marked 'Einhell Expert', part of a woodworking machine.

Mitre saw with a rotating 45-degree angle. Display shows cutting angle from -45° to +45°. Key feature: pivoting saw for precision cuts.

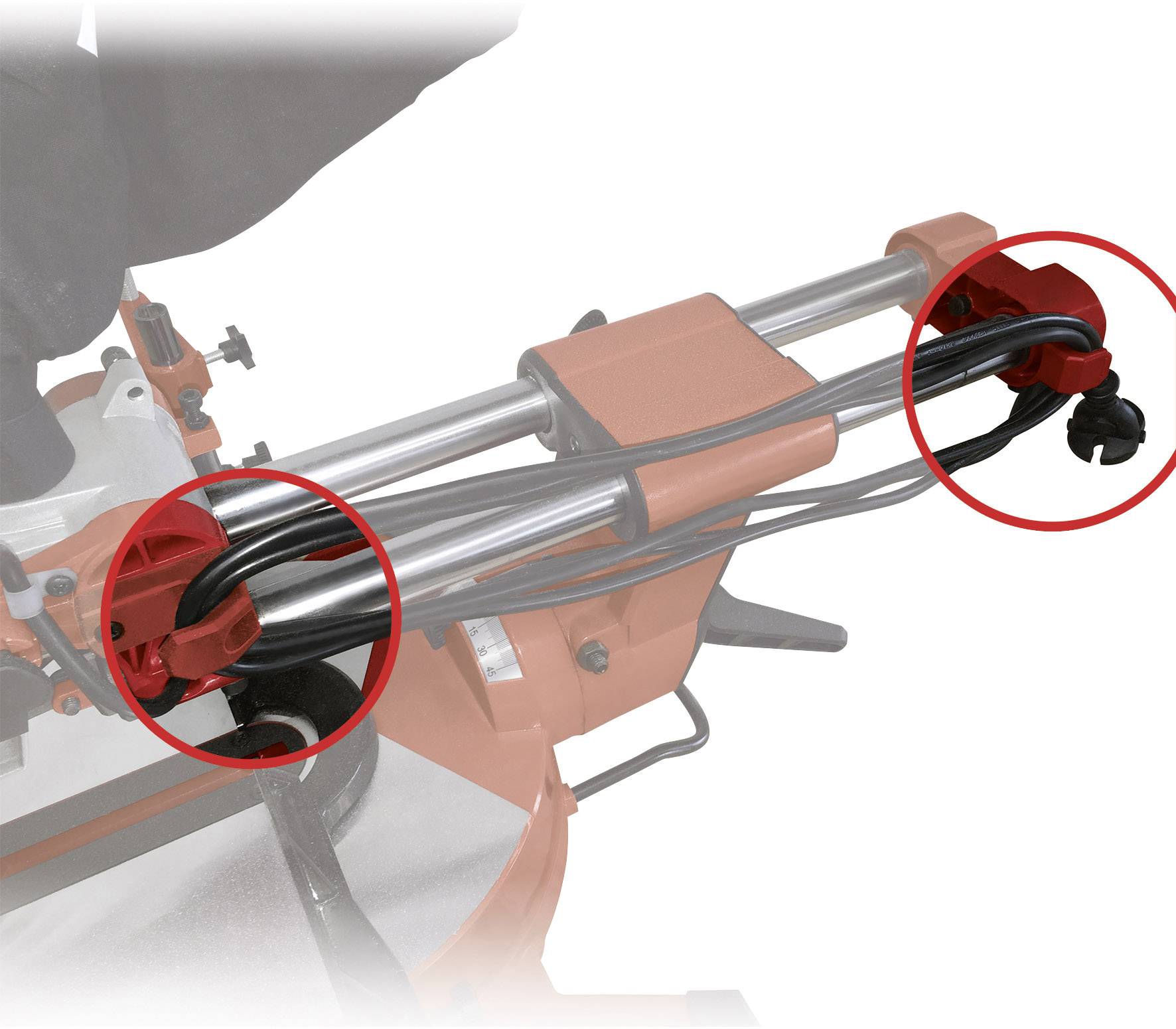

Figure of a metal pipe cutting machine. Two red circles highlight critical points in the cutting area.

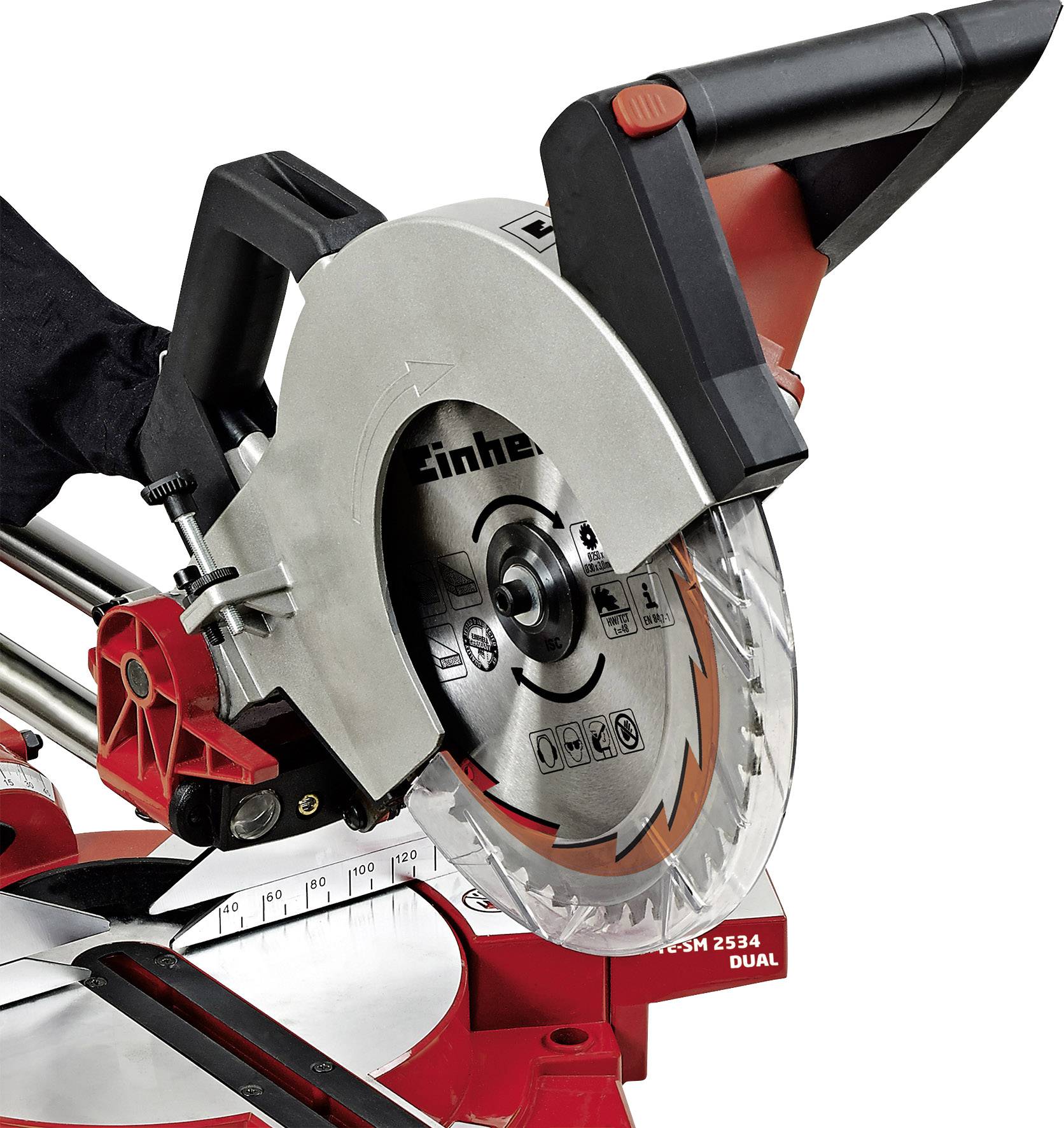

Mitre saw with a silver saw blade and red housing, mounted on a table.

Einhell TE-SM 2534 Dual Chop and mitre saw 250 mm 30 mm 1800 W-6

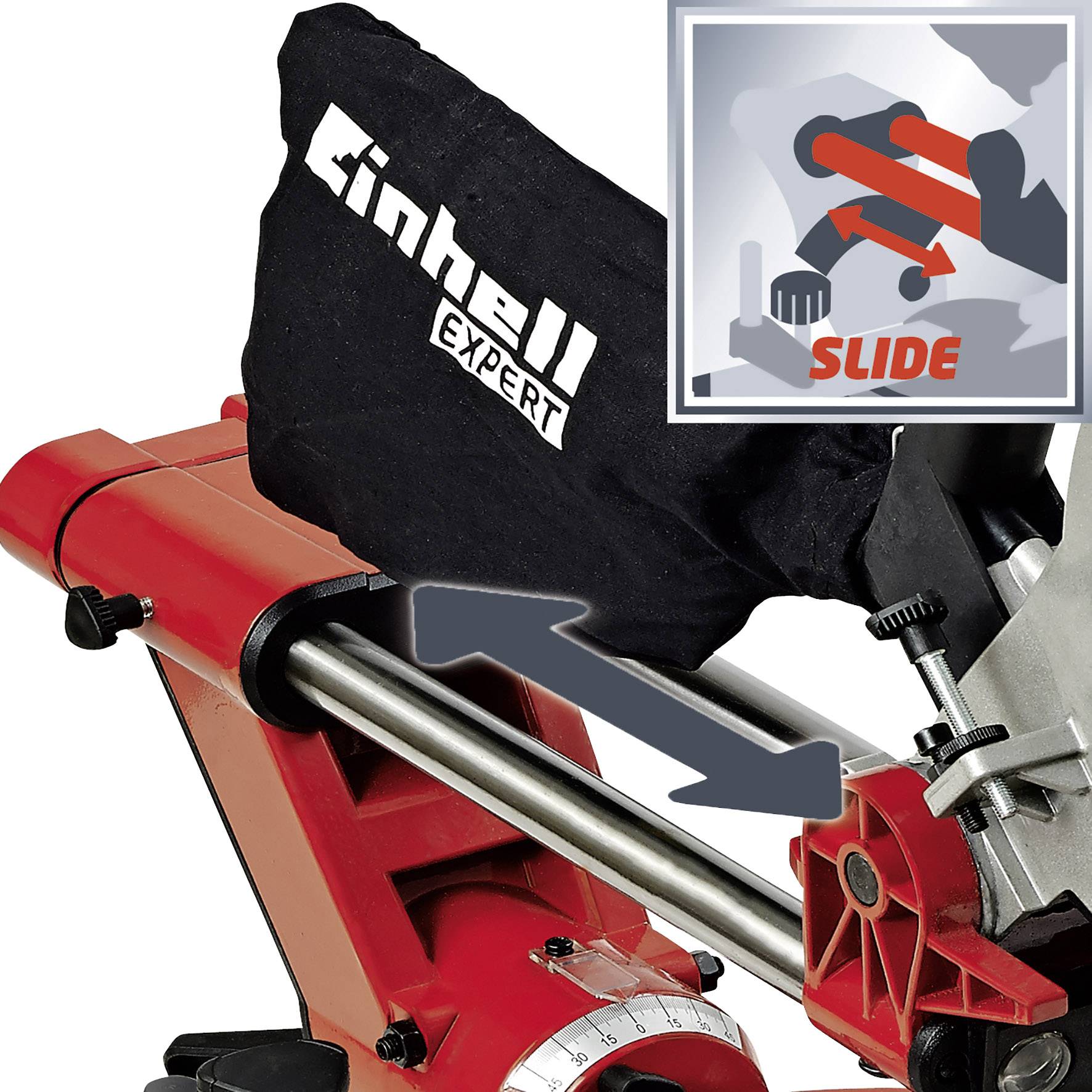

A red, electric saw with 'Einhell Expert' labelling and a sliding mechanism symbol; shows the saw as easily movable.

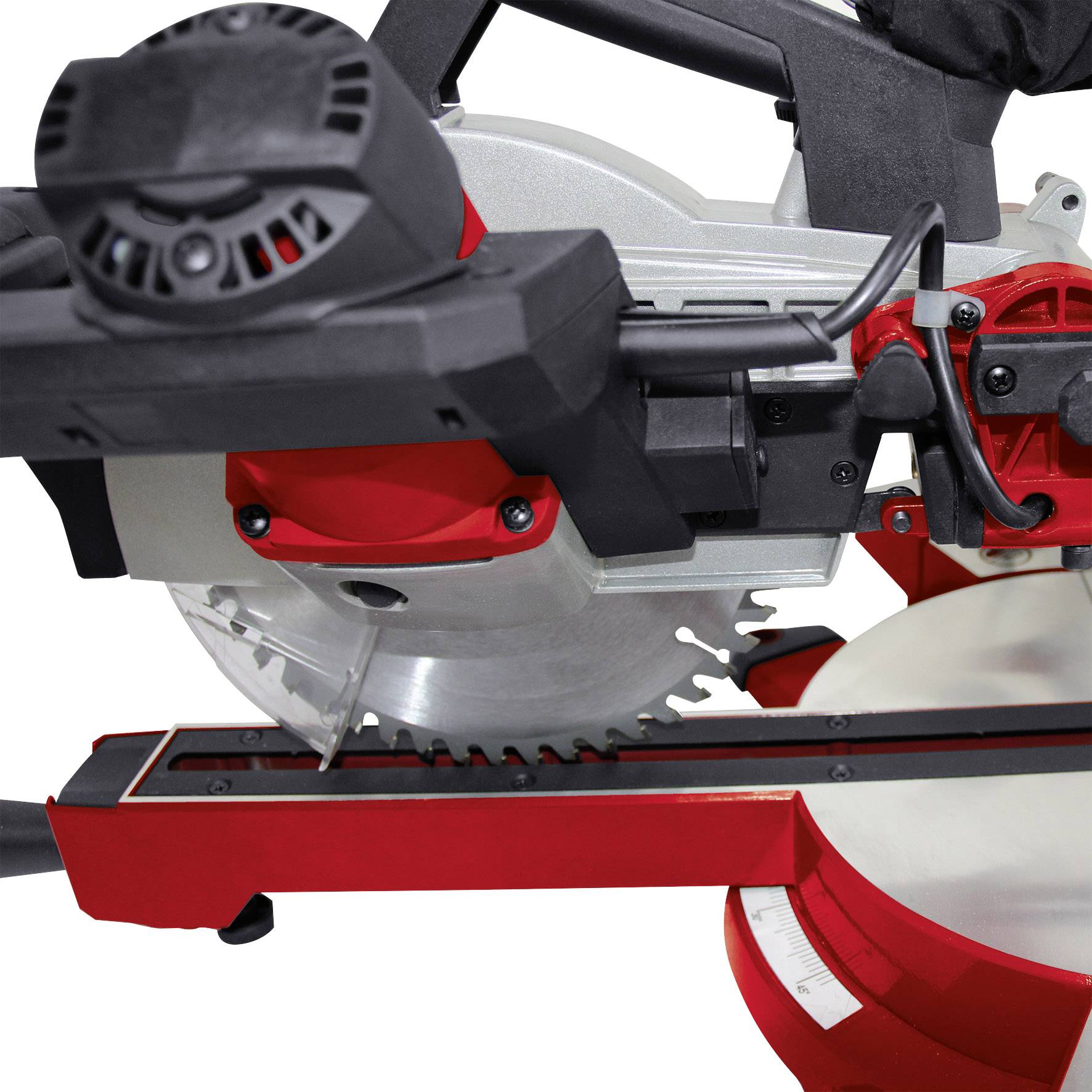

Circular saw in close-up. The blade is exposed and in working position.

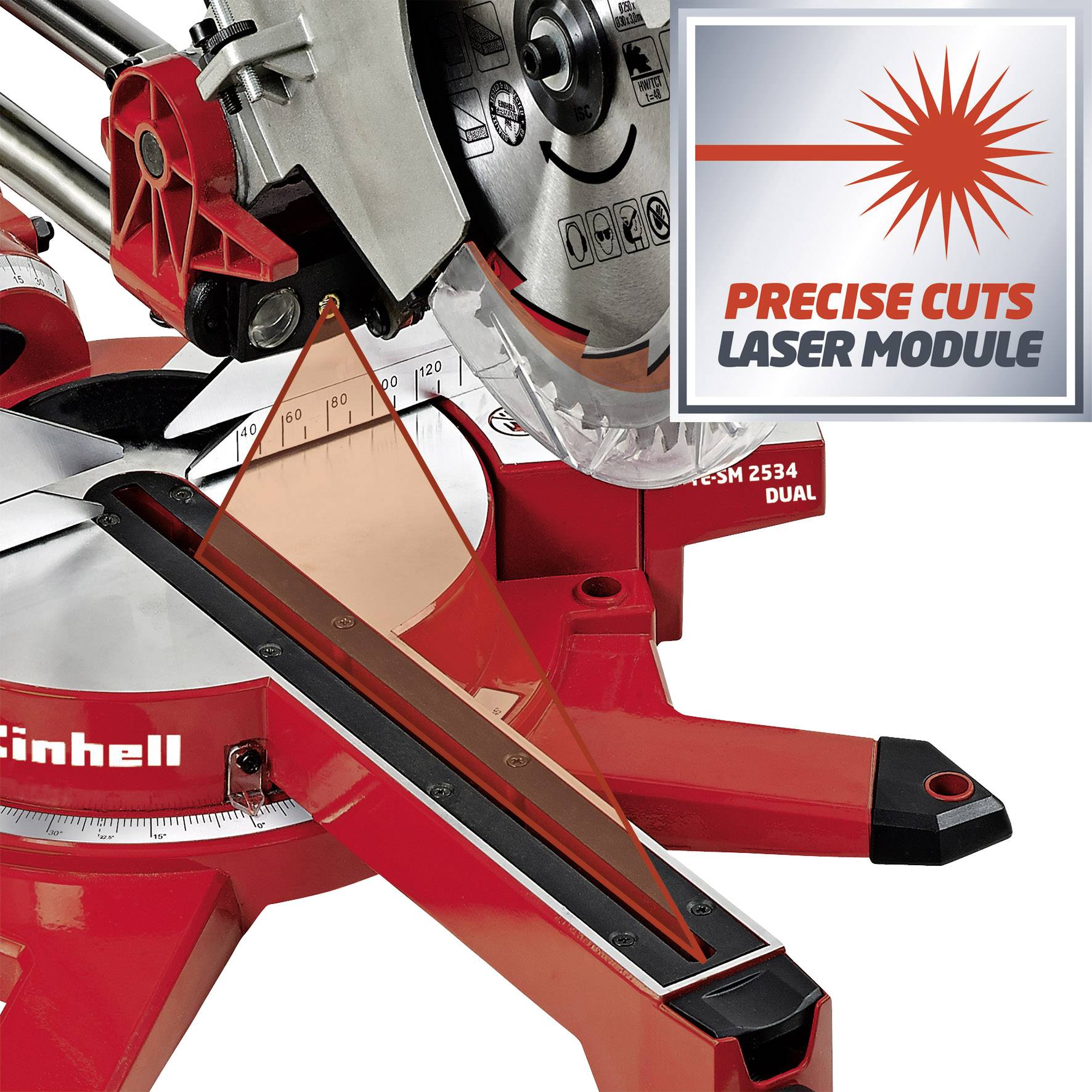

Red circular saw with laser guidance for precise cuts. Markings for angles from 0° to 90°. Text panel with 'PRECISE CUTS LASER MODULE'.

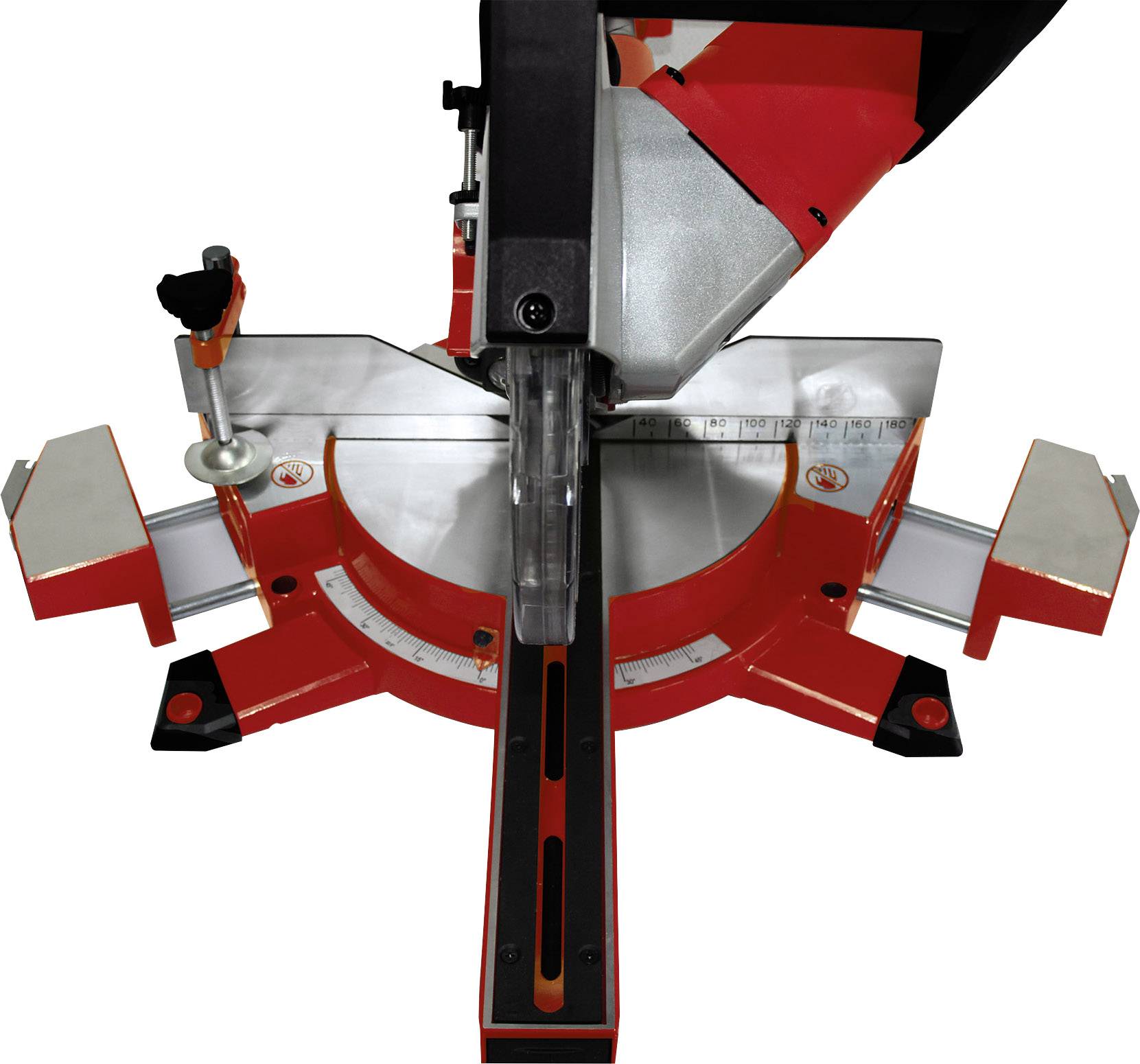

Circular saw with a red housing and angle scale, for precise wood cutting.

Einhell TE-SM 2534 Dual Chop and mitre saw 250 mm 30 mm 1800 W-17

1/22

Show alternatives

Sales and shipping:

Total (€ 247.90 / piece)

€

Report legal concerns

Highlights & Details

Zug-Kapp-mitre saw TE-SM 2534 Dual

Integrated pull-function
rotary table with precise angle setting
Tiltable sawing head
including laser
including LED light

Technical specifications

Diameter Suction connection: 36 mm
Max. Cutting width at 45°: 240 mm
Max. Cutting width at 90°: 340 mm
Swivel range (saw head): -45° - +45°
swivel range -47° - +47° (saw table):
Cut width 90° x 90°: 310 x 90 mm
Cutting width 90° x 45°: 205 x 90 mm
Cutting width 45° x 90°: 310 x 47 mm
Cutting width 45° x 45°: 180 x 47 mm

Saw blade diameter: 250 mm

Bore Ø: 30 mm

: 1800 W

Operating voltage: 230 V

Dim

Number of cogs: 48

Weight: 15.8 kg

Content: 1 pc(s)

: 1800 W

Operating voltage: 230-240 V/50 Hz

Product type: Chop and mitre saw

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1382908 Einhell TE-SM 2534 Dual Chop and mitre saw 250 mm 30 mm 1800 W

Warranty Terms

Warranty Terms 1382908 Einhell TE-SM 2534 Dual Chop and mitre saw 250 mm 30 mm 1800 W

Description

The TE-SM 2534 Dual Zug-Kapp-mitre saw is an extremely powerful device for the processing of wood, coated panels and plastics. Your continuously to the left and right tilting saw head offers high flexibility in the production of double-sided mitres in just one step. An integrated, mains-operated laser marks the cutting line and thus enables fast, accurate creation of the work piece.
