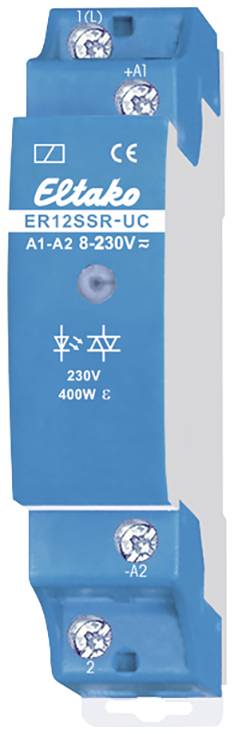

Eltako ER12SSR-UC Relay 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Relay
Contact type
1 maker
Type
ER12SSR-UC
Min. pick-up voltage
12 V AC
10 V DC
Max. pick-up voltage
230 V AC
230 V DC
Datasheet (PDF)
20 Piece(s)
Sales and shipping:
Number
Total (€ 36.97 / piece)
€
Technical specifications
- OPERATING VOLTAGE 8 - 230 V DC/AC
- Product type
Relay
- Type
ER12SSR-UC
- Min. pick-up voltage
12 V AC
10 V DC
- Max. pick-up voltage
230 V AC
230 V DC
- Contact type
1 maker
- Max. switching capacity
400 W
- Width
18 mm
- Dim
(W x D) 18 mm x 58 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Depth
58 mm
- Series
Eltako
- Power supply (LOV)
mains-powered
- Mounting type
DIN rail
DIN rail
- Operating voltage
230 V DC/AC
DIN rail
Partially electronic
58 mm
1
12-230 V
10-230 V
AC
DC
50-50 Hz
400 W
400 VA
400 VA
0
1
0
Documents & Downloads
Datasheet
Datasheet 2256215 Eltako ER12SSR-UC Relay 1 maker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2256215 Eltako ER12SSR-UC Relay 1 maker 1 pc(s)
Description
Noiseless Solid-State-Relay potential-free, 400 Watt. No standby loss. Series installation device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18 mm wide, 58 mm deep. Universal control voltage 8..230V UC. Control display with LED. Switching voltage 230 V AC. Contact switching at zero crossing. With automatic electronic overtemperature switch-off. If the load is less than 1 W, a BLE must be connected in parallel to the load.
