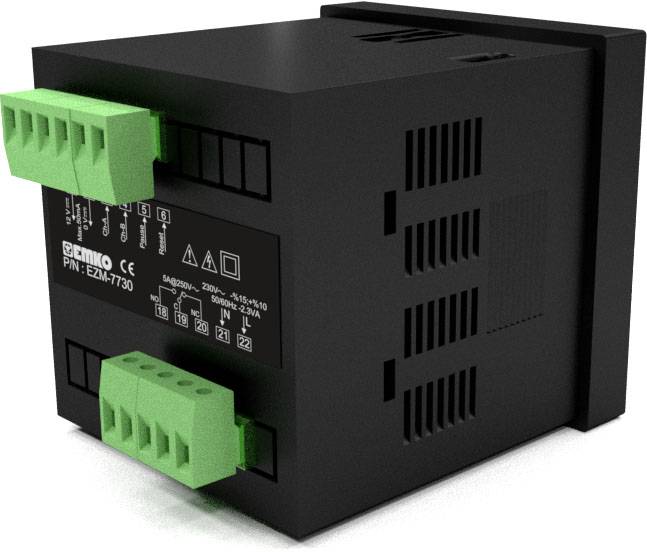

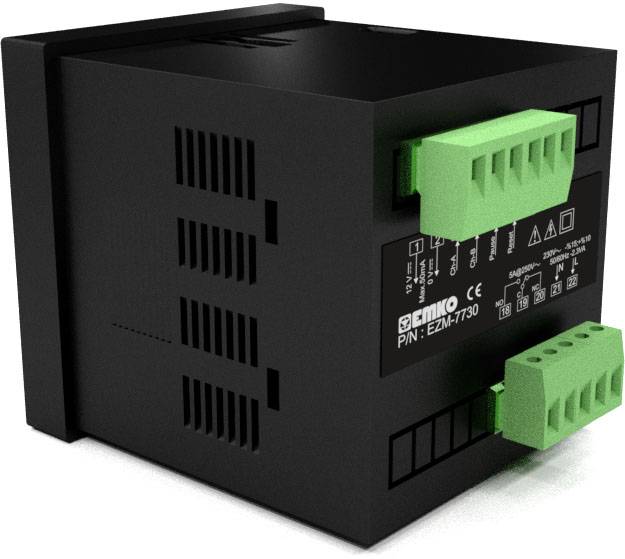

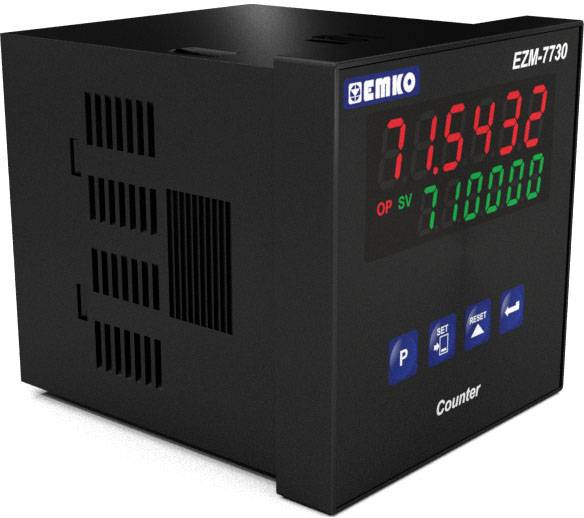

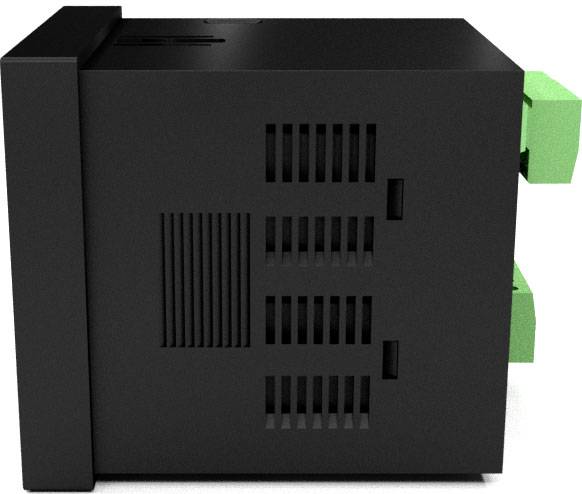

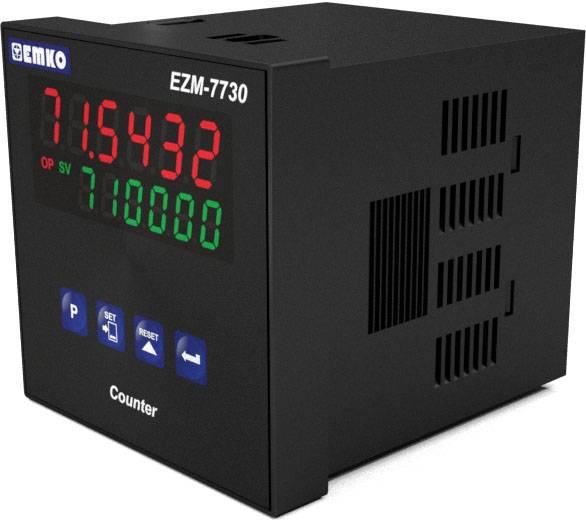

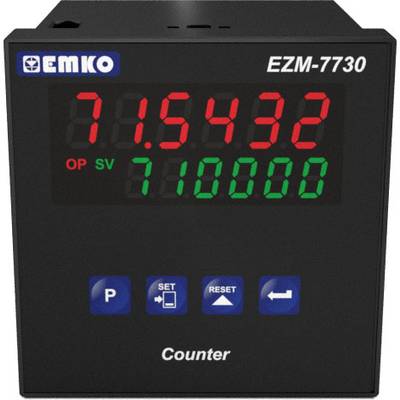

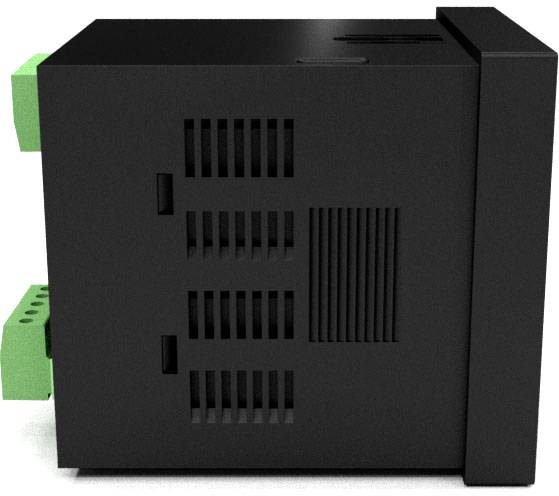

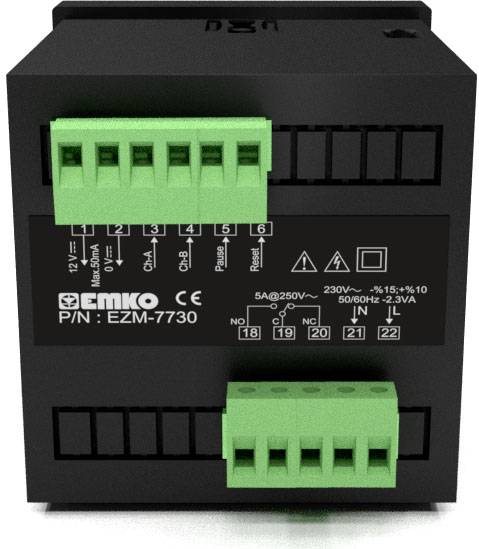

Emko EZM-7730.5.00.0.1/00.00/0.0.0.0 Preset counter
EAN:
Part number:
Item no:
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Number
Total (€ 121.84 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Product type
Preset counter
- Reading type
Pulse
- Type
EZM-7730.5.00.0.1/00.00/0.0.0.0
- Display technology
LED
Front: IP65 / connection: IP20
- Recess width
72 mm
- Display (counts)
6
- Recess height
72 mm
- Operating voltage
115 V AC
230 V AC
- Dim
(L x W x H) 96 x 72 x 72 mm
- Weight
250 g
- Display lighting
red
green
- Recess depth
84 mm
- Factory colour
Black
- Width
72 mm
- Height
72 mm
- Length
96 mm
- Frame width
7.2 cm
- Frame height
7.2 cm
Documents & Downloads
Datasheet
Datasheet 2352358 Emko EZM-7730.5.00.0.1/00.00/0.0.0.0 Preset counter
User & Safety Instructions
User & Safety Instructions 2352358 Emko EZM-7730.5.00.0.1/00.00/0.0.0.0 Preset counter
Description
The EZM-7730 multi-function counter is ideal for use in manufacturing processes. The multifunction counter counts up, down or up and down depending on the setting. The counter inputs A and B are suitable for the connection of switches, rotary encoders, capacitive sensors or proximity switches. With the integrated 12 V/DC output, sensors or rotary encoders can be supplied.
