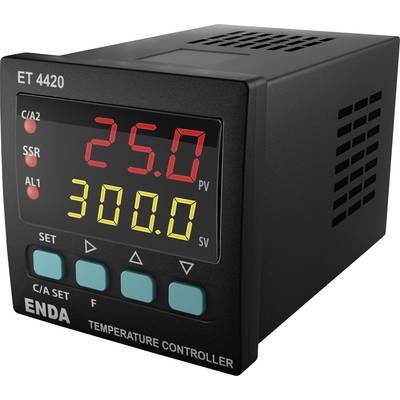

Enda ET4420-230 PID Temperature controller Pt100, J, K, T, S, R 2 A relay, SSR (L x W x H) 94 x 48 x 48 mm
EAN:
Part number:
Item no:
Thermostat type
PID
Operating voltage
230 V AC
Outputs (thermostats)
2 A relay
SSR
No. of relay outputs
2
Sensor type
Pt100
J
K
T
S
R
30 Piece(s)
Sales and shipping:
Number
Total (€ 100.83 / piece)
€ 168.07
-40 %
€
Technical specifications
- Type
ET4420-230
- Thermostat type
PID
- Operating voltage
230 V AC
- Outputs (thermostats)
2 A relay
SSR
- No. of relay outputs
2
- No. of transistor outputs
1
- Dim
(L x W x H) 94 x 48 x 48 mm
- Height
48 mm
- Length
94 mm
- Width
48 mm
- Sensor type
Pt100
J
K
T
S
R
- Manufacturer part #
ET4420-230
- Mounting type
Recess-mount
- Sensor type
Pt100, J, K, T, S, R
- Operating voltage
230 V/AC 50/60 Hz (+10 up to 20 %)
- Product type
Temperature controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 197560 Enda ET4420-230 PID Temperature controller Pt100, J, K, T, S, R 2 A relay, SSR (L x W x H) 94 x 48 x 48 mm
Description
PID temperature controller in various DIN installation sizes (48 x 48, 72 x 72, 96 x 96, 96 x 96 mm), type of control choice between "ON-OFF" switching behaviour or PID control with self-optimisation. Simultaneous display of actual value (red 7 segment display and set-value (green or yellow 7 segment display). Soft-start (ramp function) and safety code against unauthorized adjustment of the values set Easy and intuitive operation using horizontal and vertical menu navigation.
Features
- Measuring input for Two / Three ladder circuit PT100 (DIN EN60751) -200 to +600 ° C or -99.9 to +300.0 ° C
- Thermal elements (according to DIN EN60584) 0 to 1600 ° C - Type J, K, T, S, R, accuracy 0.2% of range + 1 digit
- Data backup in EEPROM
- Protection: front IP60
- Rear protection: IP20
- 1 relay contact
- 1 closing contact (switching output 2 A/250 V / AC with resistive load)
- 1 semiconductor output (SSR, max. 12 V / DC / 20mA).
Scope of delivery
- Plug-in screw terminal strip for 2.5 mm².
