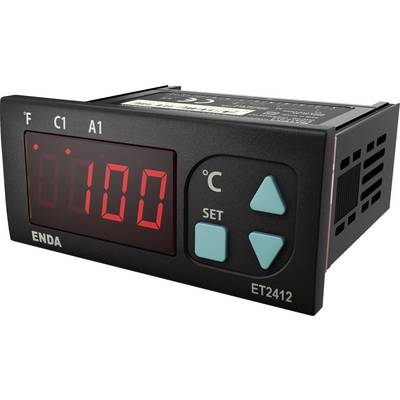

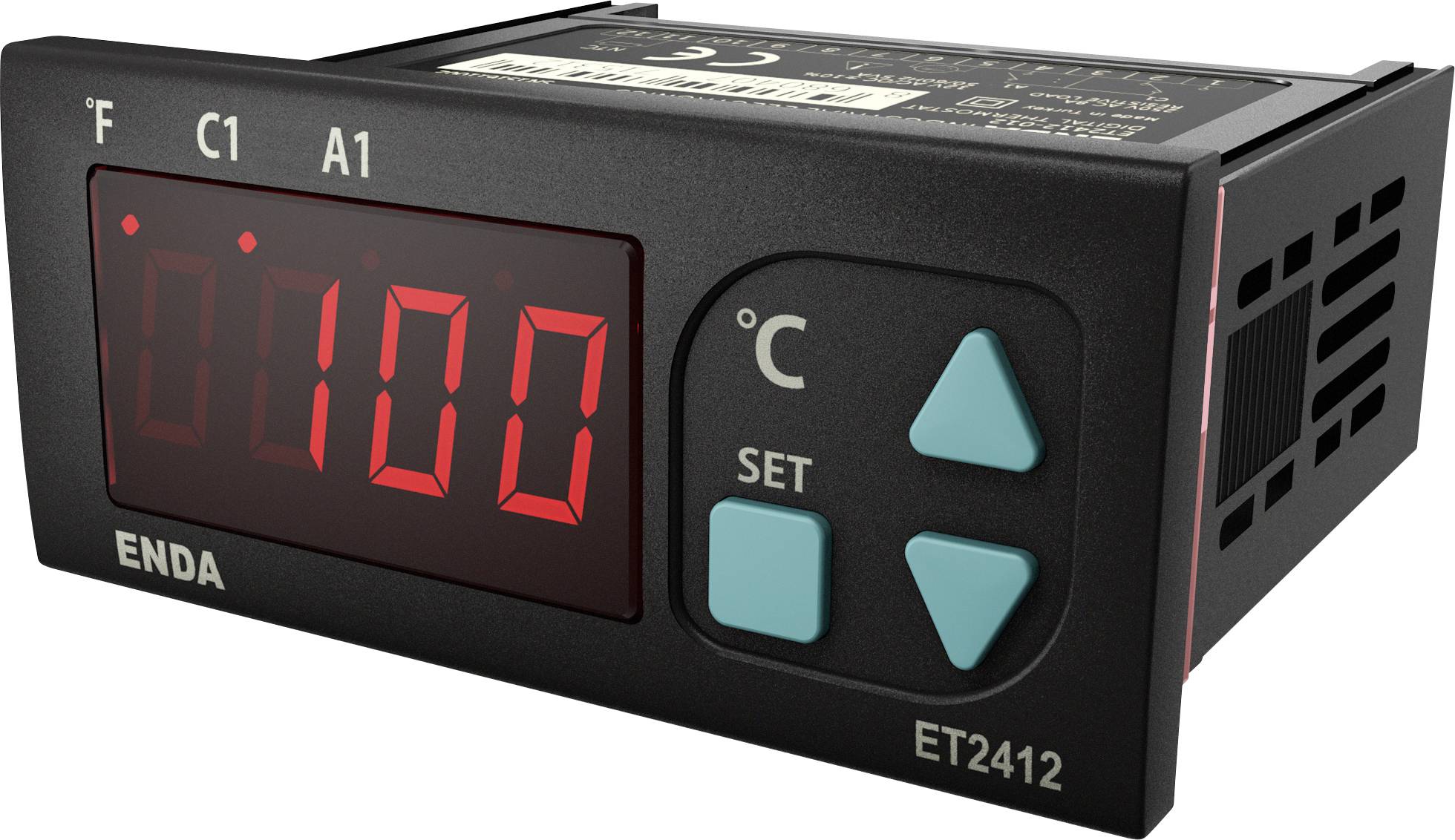

Enda Temperature controller NTC -60 up to 150 °C (L x W x H) 61 x 77 x 35 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Operating voltage
8 V AC
10 V DC
12 V DC
24 V AC
24 V DC
30 V DC
Max. temperature reading
150 °C
No. of relay outputs
2
Sensor type
NTC
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 65.54 / piece)
€
Highlights & Details
Temperature controller ET1411/1412
- Temperature controller for heating and cooling applications
Technical specifications
- Display: 4-digit, 12.5mm, 7-segment yellow LED
- Power consumption: Max. 3VA
- Product type
Temperature controller
- Type
ET2412-LV-08
- Operating voltage
8 V AC
10 V DC
12 V DC
24 V AC
24 V DC
30 V DC
- Reading range
-60 up to 150 °C
- Max. temperature reading
150 °C
- Min. temperature reading
-60 °C
- No. of relay outputs
2
- Outputs
C1 Output: 250V AC, 8A (resistive load), NO and NC control output (for heating/cooling function)
A1 output: 250V AC, 8A (resistive load), NO control output (for alarm function)
- Dim
(L x W x H) 61 x 77 x 35 mm
- Factory colour
Black
- Height
35 mm
- Length
61 mm
- Width
77 mm
IP65 (on front)/IP20 (on back)
- Sensor type
NTC
- Manufacturer part #
ET2412-LV-08
- Type
ON-OFF regulation. Adjustable heating/cooling function
Offset setting for measured value correction
3 Alarm functions for A1 can be selected
- Recess depth
61 mm
- Mounting type
Recess-mount
- Assembly dimensions
77x35 mm
- Sensor type
NTC-Sensor
- Weight
215
- Output
250 V/AC/8 A
- Operating voltage
230 V AC
Documents & Downloads
Datasheet
Datasheet 3527764 Enda Temperature controller NTC -60 up to 150 °C (L x W x H) 61 x 77 x 35 mm
User & Safety Instructions
User & Safety Instructions 3527764 Enda Temperature controller NTC -60 up to 150 °C (L x W x H) 61 x 77 x 35 mm
Description
Digital adjustable "ON-OFF temperature control for heating or cooling applications. Easy parameter settings (limit, offset, etc.) via front panel buttons. The actual value is shown by a 4 digit, 7 segment display with sign (if less than 0 °C). The resolution is adjustable to 0.1 ° C or 1 ° C, while the accuracy is 1% of SB.
Features
- Type of control - individual set-point and alarm control
- Control method - On-Off
- A/D converter (12-bit)
- Sampling time - 100 ms
- Hysteresis - Adjustable between 0.1 and 20.0 °C/F
Scope of delivery
- NTC sensor (Ø x L: 6 x 40 mm) incl 1.5 m long connection cable.
Hints
Additional function ET1412: different alarm types (loop, deviation, band alarm) can be set
