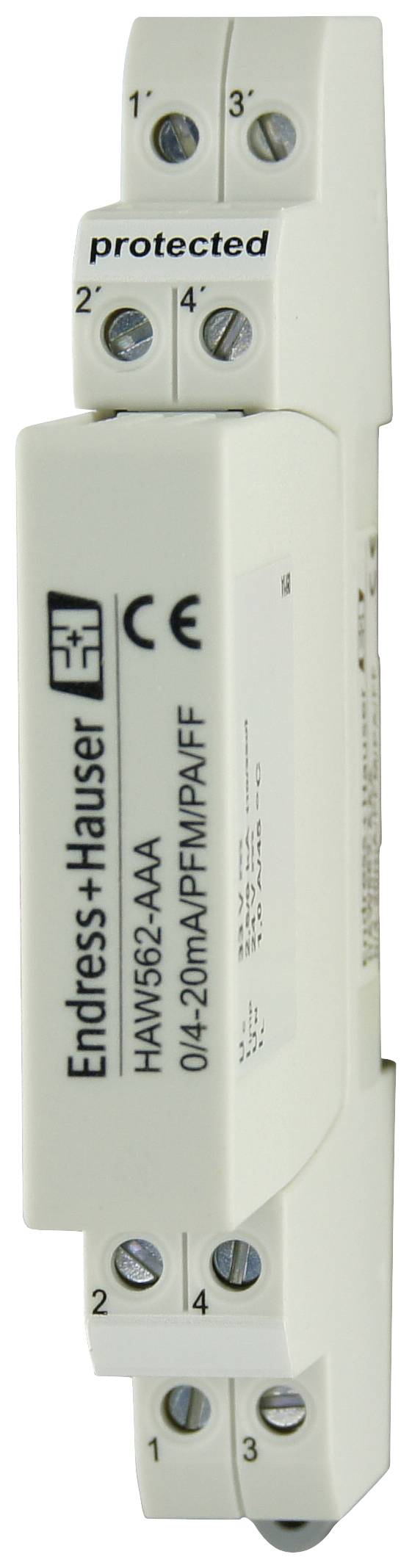

Endress+Hauser HAW562-AAA HAW562 Surge protection module 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 126.04 / piece)
€
Highlights & Details
Overvoltage protection device HAW562-AAA Measurement signal 0/4-20mA, PFM, Profibus PA, FOUNDATION Fieldbus Non-hazardous area
- Protection class Europe IP20
- Application: Measurement signal 0/4-20mA, PFM, Profibus PA, FOUNDATION fieldbus
- Approval: Non-explosive area
Technical specifications
- Dimensions (WxHxD): 12x90x72.5 mm
- Product type
Surge protection module
IP20
- Manufacturer part #
HAW562-AAA
- Factory colour
Grey
- RoHS-compliant
Yes
- Content
1 pc(s)
Description
The surge suppressor HAW562 is used to protect electronic components against the destruction through overvoltages. It ensures that overvoltages that occur in signal lines (e.g. 4 to 20 mA), in communication lines (field buses) and in power lines, are safely discharged into the ground. The function of the transmitter or of the electronic component to be protected is not affected. Surge arresters are used to attenuate fault currents from upstream lightning protection measures and to limit system-related or generated surges.
This text is machine translated.
This text is machine translated.
Features
- Protects electronic components against destruction by overvoltages
- Weakens residual currents from upstream lightning protection stages and limits system-related or -generated overvoltage
- Excess voltages are safely transferred to the ground
- The functionality of the transmitter or of the electronic components to be protected is not affected
