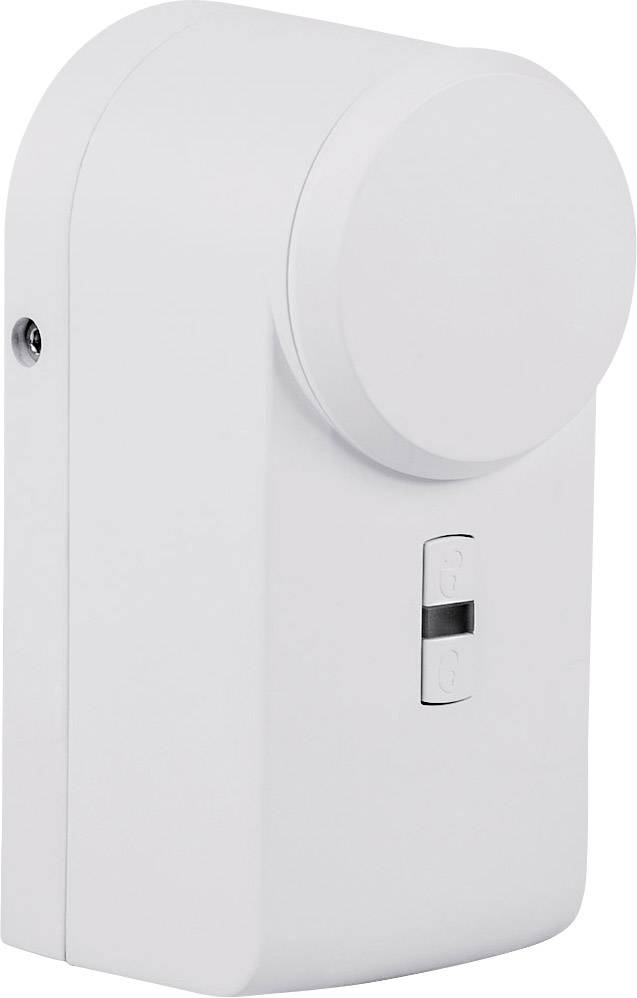

Electronic door lock in white, side view; shows button and switch for locking mechanism.

A hand is holding a smartphone displaying an app for controlling a smart lock. Next to it is an electronic door lock.

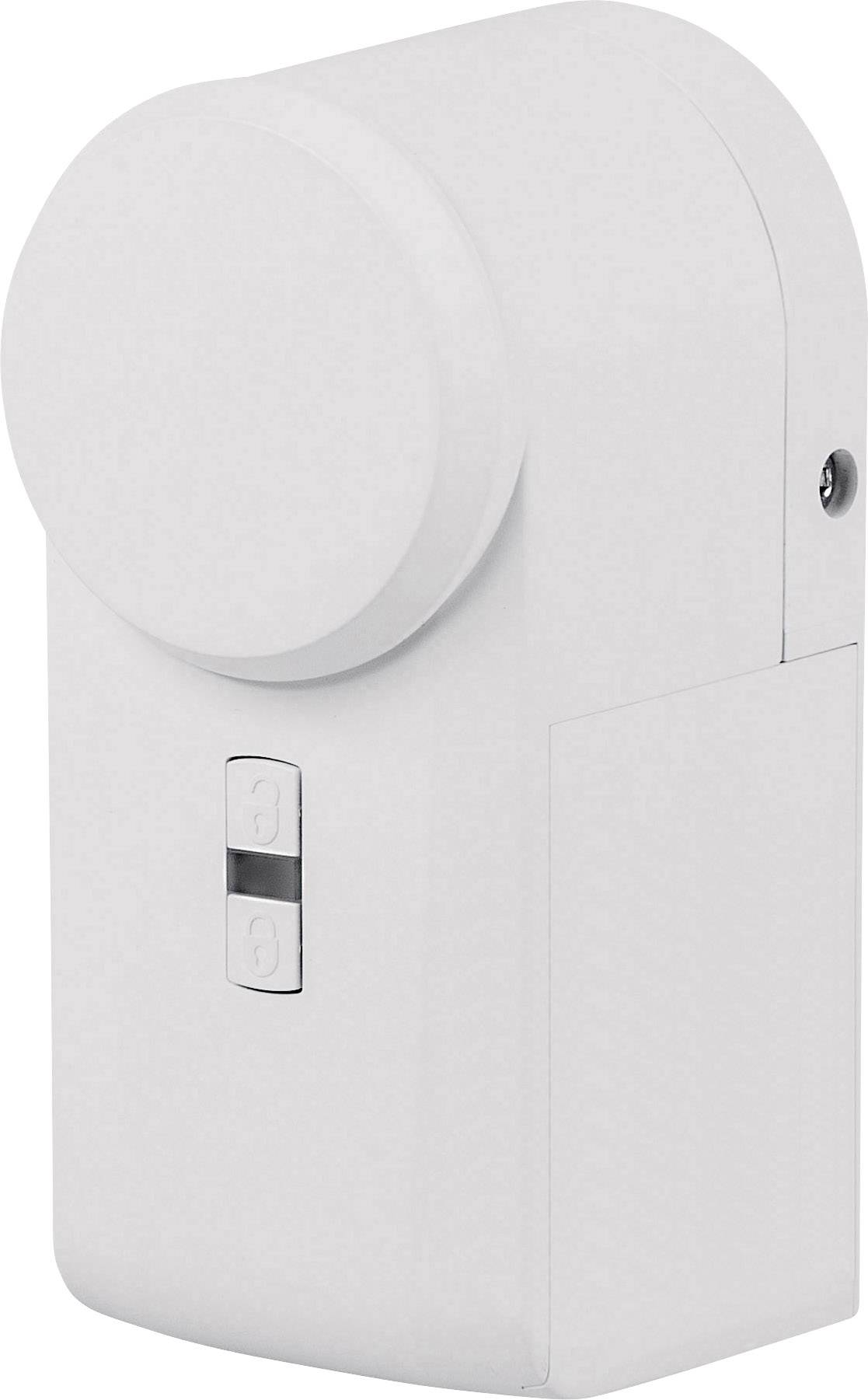

White, cylindrical electronic door lock with two buttons on the front, suitable for use in intelligent security systems.

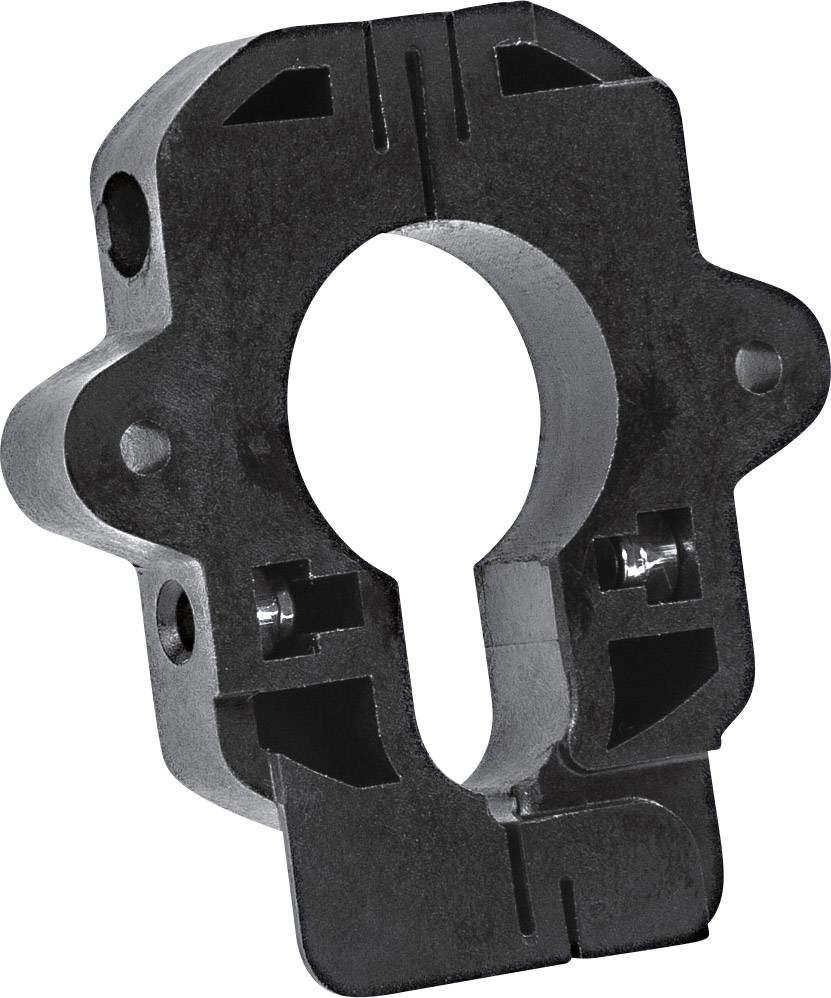

Black plastic key-shaped fitting with three mounting holes, designed for surface mounting.

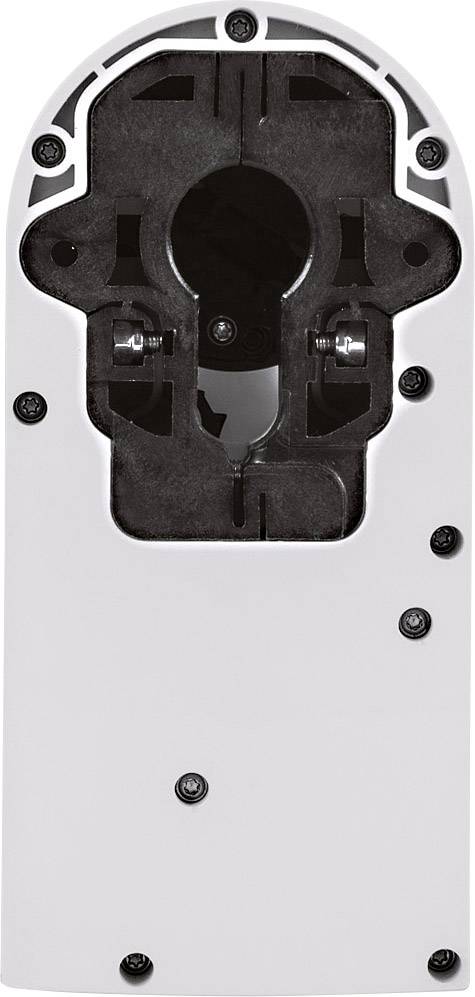

Back of a mounting bracket with multiple screws and mounting points, suitable for device installation.

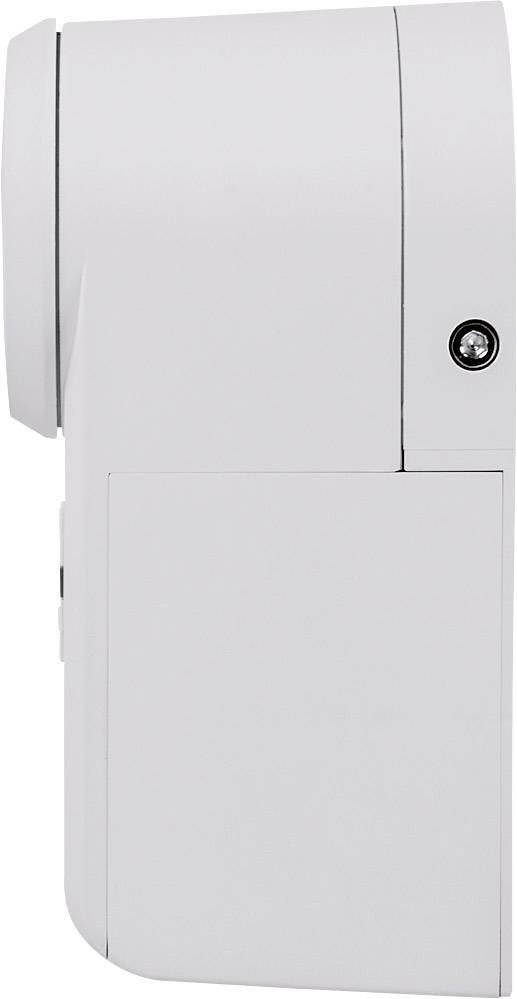

Side view of a white, rectangular device with a round front and a black dot in the top right corner.

A white door handle with a round knob and two buttons can be seen.

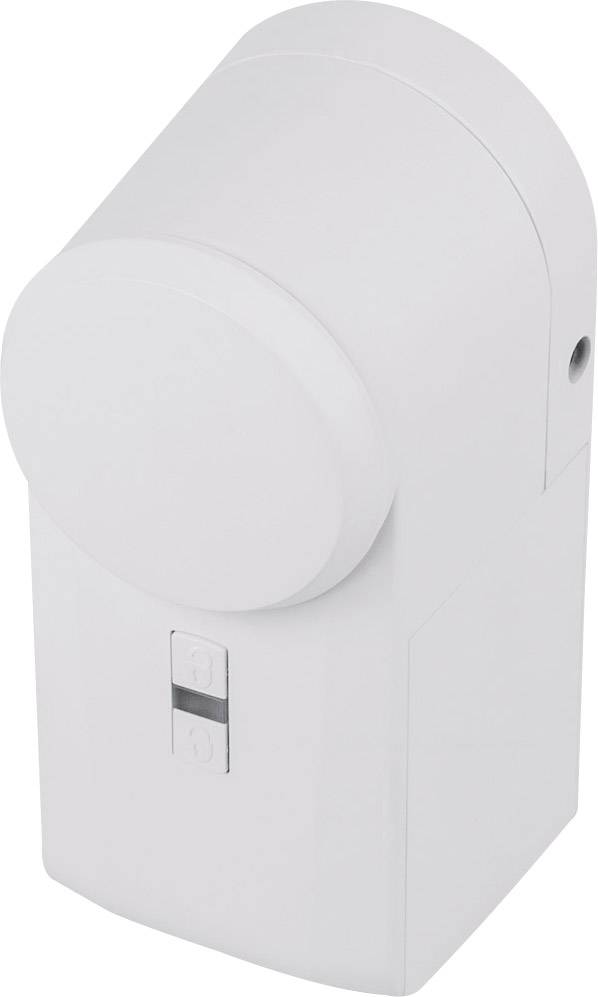

A white, cylindrical door lock cylinder with a switch on the front, used for controlling door locks.

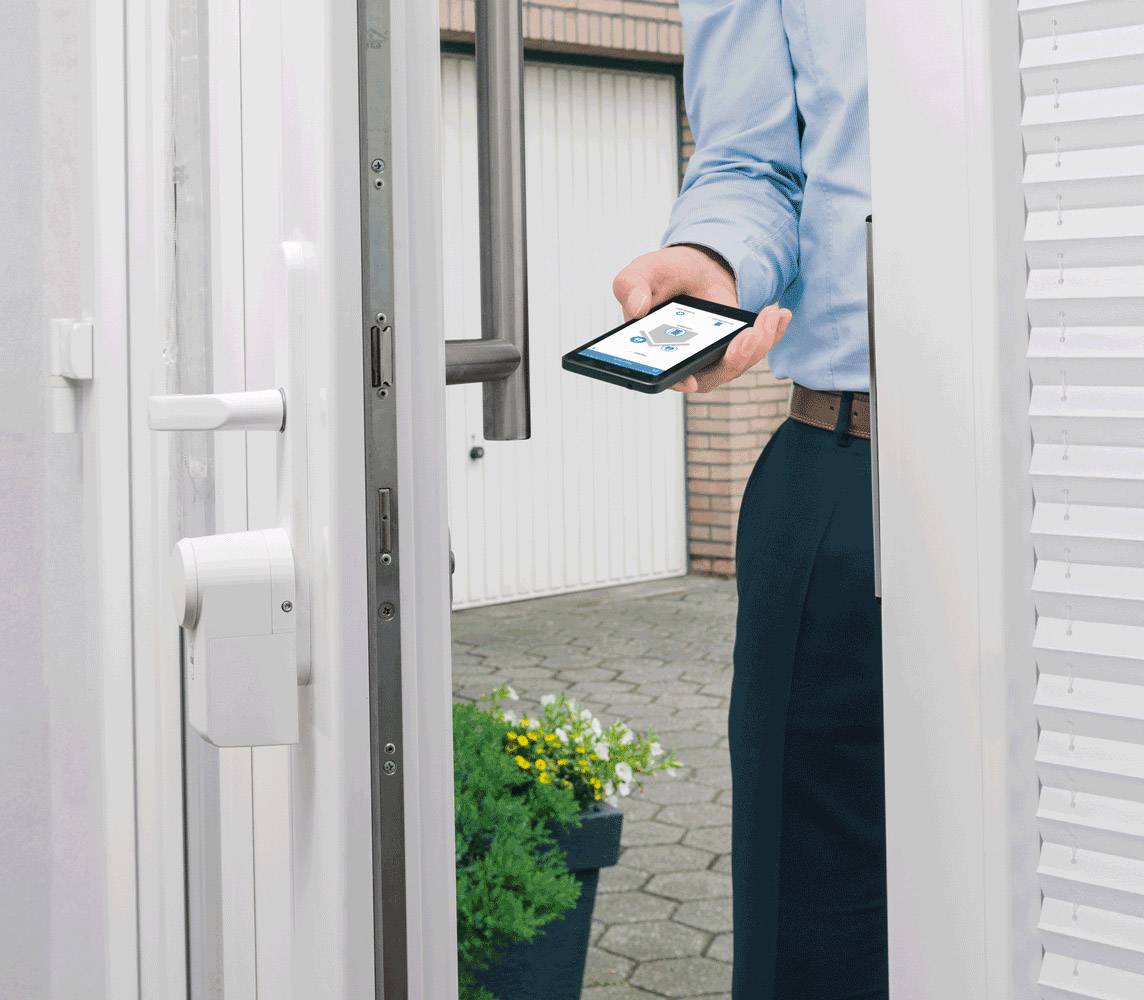

A person is holding a smartphone in front of an open door with a smart lock. Garages are visible in the background.

'Two hands are installing an electronic lock on a window handle. A cover is being placed over the mechanism.'

A hand is holding a white electronic door lock that is open for installation or removal from the door. A key is inserted in the lock.

A person is operating a smart home app on a smartphone to control an electronic door lock on a white door.

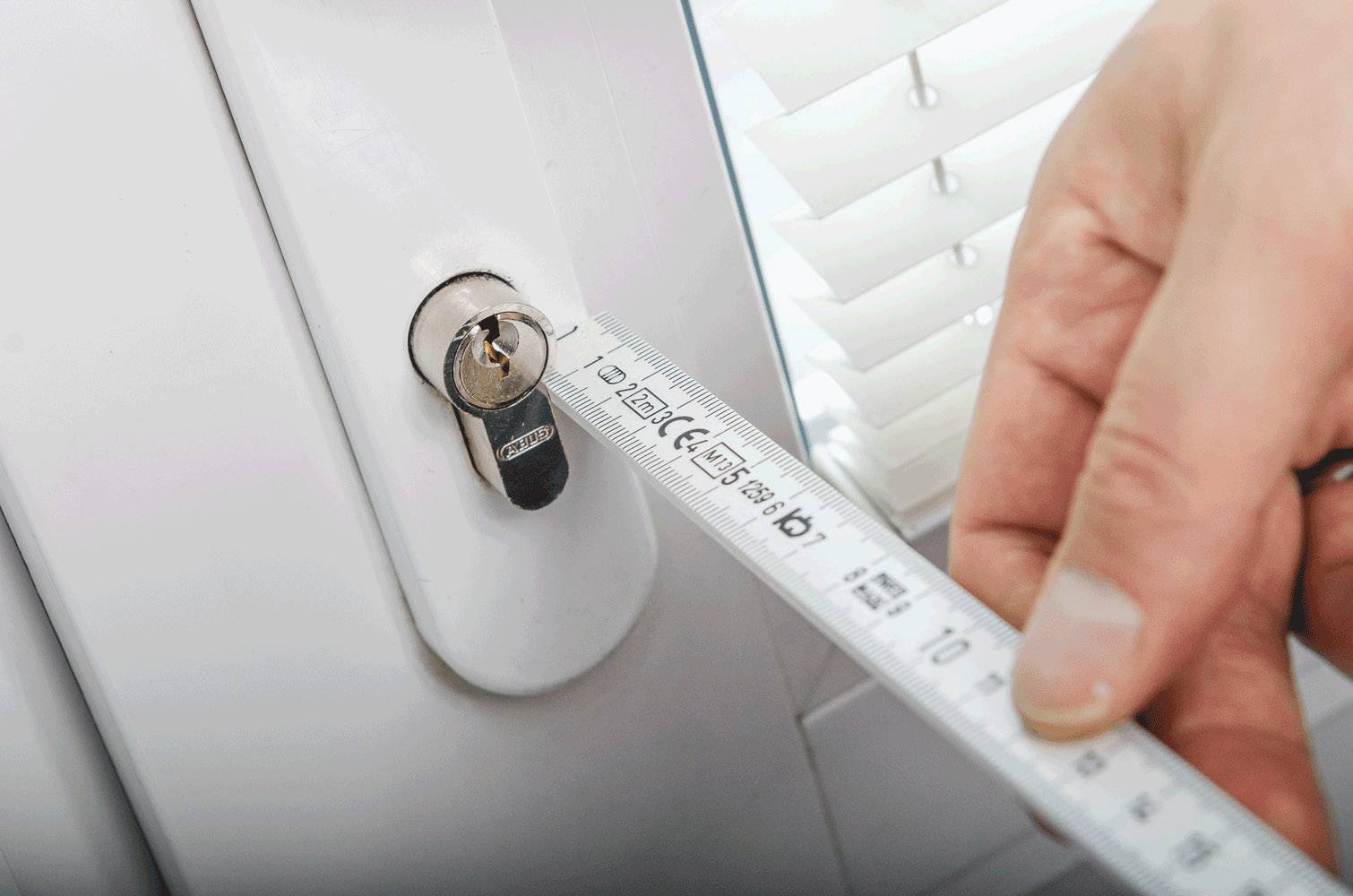

A hand holds a tape measure next to a closed window with blinds to measure the distance from the lock cylinder.

The close-up shows an open door with an integrated blind and white door handle. Outside, paving stones and bushes are visible.

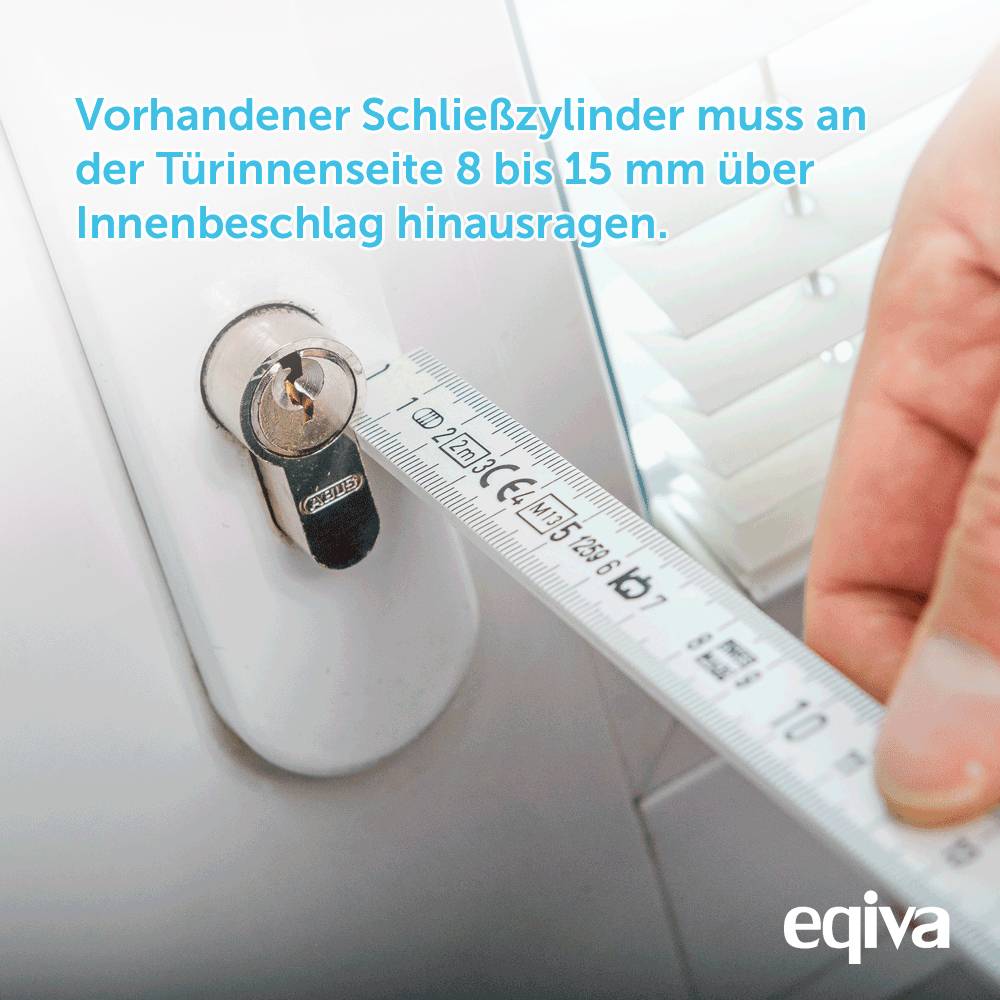

Existing lock cylinder is measured with a ruler; textual instruction: 'Lock cylinder must protrude 8 to 15 mm beyond the interior handle'.

1/15

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 70.58 / piece)

€

Report legal concerns

Highlights & Details

BLUETOOTH SMART door lock actuator

Unlocking and opening the door lock via app
Up to 8 smartphones can be programd to a doorlock actuator
app-controlled for up to 8 doorlock actuators
Wireless installation thanks to battery operation

Technical specifications

: IP20

Weight: 387 g

Dim: (W x H x D) 80 x 72 x 128 mm

Depth: 128 mm

Height: 72 mm

Width: 80 mm

Features: Bluetooth support

Operating voltage: 4.5 V (3 x 1.5 V AA batteries)

Product type: Door lock actuator

Documents & Downloads

Datasheet

Datasheet 1486674 eqiva 142950A0 Door lock actuator IP20 Bluetooth support

User & Safety Instructions

User & Safety Instructions 1486674 eqiva 142950A0 Door lock actuator IP20 Bluetooth support

Conformity certificate

Conformity certificate 1486674 eqiva 142950A0 Door lock actuator IP20 Bluetooth support

Description

Door lock actuator with Bluetooth ® smart for comfortable lock and unlock the door lock via a smartphone app. Optimal access control and time-controlled complete through flexible week program and individual access profiles. Free app for Apple iOS, and can have one or more door lock drives operate.

This text is machine translated.

Features

Up to 8 phones can be programd to a door lock actuator
Wireless installation thanks to battery mode
Can be used universally to all doors with a standard-locking cylinder
Mounting on the inside of cylinder lock door lock actuator is not visible from the outside
No drilling and no damage to of doors, frames or keys
Simple, yet secure operation with smartphone and by code card
High security by separate encrypted radio communication
From the outside, go to ordinary key operation possible
Panic and emergency operation from the inside mechanically on the device thanks to patented gear.

Scope of delivery

Locking motor
Batteries
Fixings
User manual.

Hints

Smartphone support for Apple (iOS 8.3 and higher) and Android (version 4.3 and higher).

For installation, the lock cylinder must survive 8-15 mm on the inside of the door". It has been shown that this note and the supplementary figure are very valuable to customers.

Monge on the inside of the door. To ensure that your front door remains unlocked from the outside with the key, a lock cylinder in the design "can be locked on both sides" is required.
