Extech EC510 Conductivity tester Conductivity, Temperature, pH, TDS, Salt content
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 239.50 / piece)
€
Only 9 Piece(s) available
Technical specifications
- Salt content: 100 - 999 ppm
- Protection class IP57
- Dim
(L x W x H) 36 x 41 x 186 mm
- Weight
110 g
- Height
186 mm
- Length
36 mm
- Width
41 mm
- Conductivity reading range
0 - 199 µS
- pH reading range
0 - 14 pH
- TDS reading range
0 - 99.9 ppm
- Temperature reading range
-5 up to +90 °C
- Display
Digital
- Reading type
Conductivity
Temperature
pH
TDS
Salt content
- Conductivity reading range (max.)
199 µS
- Conductivity reading range (min)
0 µS
- pH reading range (max.)
14 pH
- pH reading range (min.)
0 pH
- TDS reading range (max.)
99.9 ppm
- TDS reading range (min.)
0 ppm
- Temperature reading range (max.)
+90 °C
- Temperature reading range (min.)
-5 °C
- Product type
Conductivity tester
Documents & Downloads
Datasheet
Datasheet 3088668 Extech EC510 Conductivity tester Conductivity, Temperature, pH, TDS, Salt content
User & Safety Instructions
User & Safety Instructions 3088668 Extech EC510 Conductivity tester Conductivity, Temperature, pH, TDS, Salt content
Description

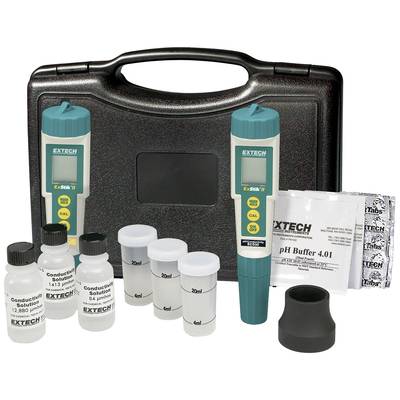

The EC510 is a conductivity test kit. The kit contains the EC500 meter, 3 calibration standards, 3 pH buffer bags plus flushing solution, 3 cups, batteries and carry case. Measures 5 parameters including conductivity, TDS, salinity, pH and temperature with one electrode. Analog bar graph shows trends. The memory stores up to 25 measured values. Adjustable conductivity/TDS ratio from 0.4 to 1.0; 0.5 fixed salt content ratio.
This text is machine translated.
This text is machine translated.
Features
- Measures 5 parameters including conductivity, TDS, salinity, pH and temperature with one electrode
- 9 measuring units: PH, µS/cm, MS/cm, ppm, ppt, mg/L, g/L, °C, °F
- Analog bar graph shows trends
- The memory stores up to 25 measured values
- Adjustable conductivity/TDS ratio from 0.4 to 1.0; 0.5 fixed salt content ratio
- The RENEW function warns the user when the electrode needs to be replaced
Scope of delivery
- EC500-Meter
- 3 calibration standards
- 3 pH buffer bag plus rinsing solution
- 3 cups
- Batteries
- Carrying case
