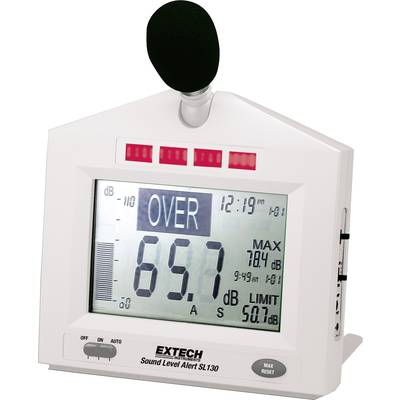

Extech Sound level meter SL130W 30 - 130 dB 31.5 Hz - 8000 Hz
- Ideal for sound level monitoring
- Indication by bright LEDs on reaching the alert values
Technical specifications
- Response Time: 125 ms or 1000 ms
- Accuracy: according to IEC 651/EN 60651 Class 2 (94 dB/1 kHz ± 1.5 dB)
- Power supply: 230V/AC, 9 V/DC
- SPL resolution
0.1 dB
- Dim
(L x W) 220 mm x 180 mm
- Length
220 mm
- Width
180 mm
- Max. frequency
8000 Hz
- Frequency range
31.5 Hz - 8000 Hz
- dB SPL (A) reading range
30 - 130 dB
- dB (C) SPL reading range (max.)
30 - 130 dB
Manufacturer's standards (no certificate)
- Display
LED
- Reading type
SPL
- dB (A) accuracy
1.5 dB
- dB (C) accuracy
1.5 dB
- Min. frequency
31.5 Hz
- dB (A) SPL reading range (max.)
130 dB
- dB (A) SPL reading range (min.)
30 dB
- dB (C) SPL reading range (max.)
130 dB
- dB SPL (C) reading range (min.)
30 dB
- Pick-up time (details)
125/1000 ms
- Frequency range
31.5 - 8000 Hz
- Accuracy
according to IEC 651/EN 60651 Class 2 (94 dB/1 kHz ± 1.5 dB)
- Power supply (details)
230 V/AC, 9 V DC
- Weight
285 g
- Product type
Sound level meter
Documents & Downloads
Datasheet
Datasheet 121638 Extech Sound level meter SL130W 30 - 130 dB 31.5 Hz - 8000 Hz
User & Safety Instructions
User & Safety Instructions 121638 Extech Sound level meter SL130W 30 - 130 dB 31.5 Hz - 8000 Hz
Conformity certificate
Conformity certificate 121638 Extech Sound level meter SL130W 30 - 130 dB 31.5 Hz - 8000 Hz
Description
Ideal for monitoring of noise levels in buildings, offices, production plants, etc. The SL-130 has an adjustable alarm function, so it can adhere to the legal level checks and if necessary protective measures are taken. The SL-130 is also ideally suited as a control instrument at lectures or performances. When sound level of the lecture is optimal, the LED’s are green, if you go over or under the desired sound level then they either light up or blink red and signal to the lecturer to adjust the sound level. The alarm is signalled optically over super bright LED’s which are visible at a distance of 30 m or the alarm can be sent over an analogue output.
Features
- A/C weighting
- Switchable check time (slow/fast)
- Max. storage with a display for the time and date
- Large LCD display with bar graph
- Can be mounted on the wall or setup on a table.
Scope of delivery
- Plug-in power supply (unit)
- Microphone wind protection
- 8 batteries (type: AA)
- User manual.
