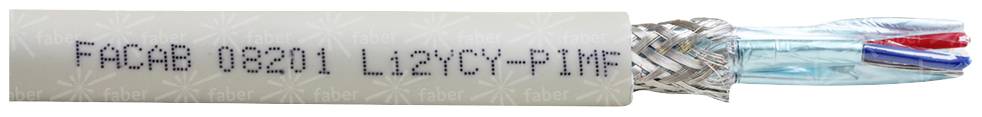

Faber Kabel 031796 Data cable Li2YCY 2 x 2 x 0.5 mm² Grey Sold per metre
EAN:
Part number:
Item no:
Product type
Data cable
No. of leads
4 x
Cross section (each core)
0.5 mm²
Cable features
Shielded
Flame-retardant
Cable type
Li2YCY
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 1.67 / piece)
€
Technical specifications
- Product type
Data cable
- Cable type
Li2YCY
- No. of leads
4 x
- Cross section (each core)
0.5 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
2 x 2 x 0.5 mm²
- Cable features
Shielded
Flame-retardant
- Factory colour
Grey
- Content
Sold per metre
- Nominal voltage (details)
250 V
- Test voltage
1 kV
- Bend radius (no. of ODs for fixed installation)
12
- Packaged
No
- Sold per metre
Yes
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
031796
- Insulation material
PVC
- Core layout
Copper, blank, Class 5 = fine
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (fixed installation)
-15 °C
- Max. temperature range (fixed installation)
+70 °C
- Max. length sold by the metre
100 m
- Type
Li2YCY PiMF
Documents & Downloads
Datasheet
Datasheet 1301190 Faber Kabel 031796 Data cable Li2YCY 2 x 2 x 0.5 mm² Grey Sold per metre
User & Safety Instructions
User & Safety Instructions 1301190 Faber Kabel 031796 Data cable Li2YCY 2 x 2 x 0.5 mm² Grey Sold per metre
Description
Data cable with low operation capacity, pair and overall shield. Suitable for the connection of components of the control and regulation technology in environments with high noise level. The combination of foil pair and geflechts-gesamtschirm ensures optimum protection against high and low-frequency interference. For fixed laying in dry and damp rooms.
